- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22314 GMEX C3 W33

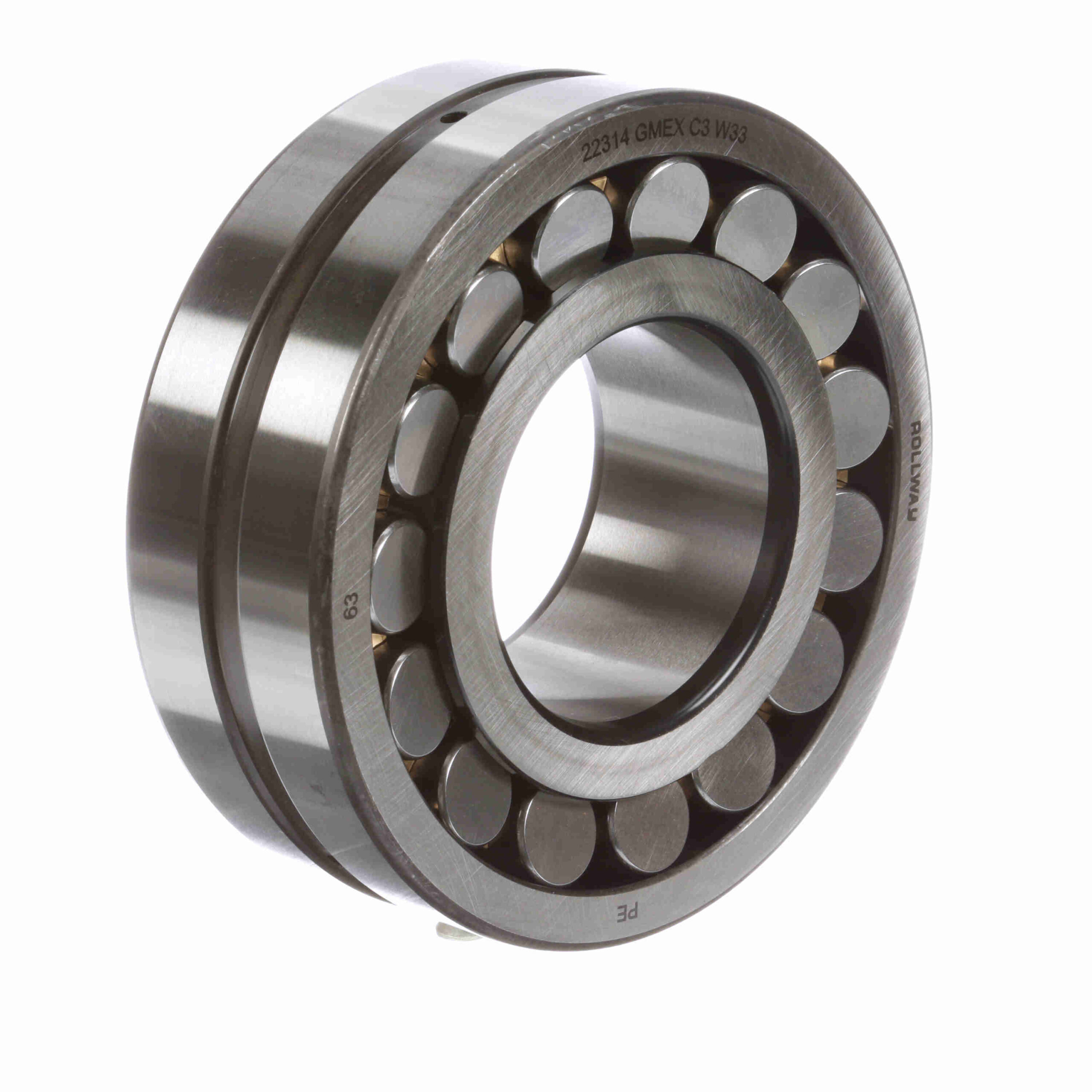

Rollway Radial Spherical Roller Bearing – Straight Bore – 22314 GMEX C3 W33
$376.24
Availability: 4 in stock
Availability: 4 in stock
| Series: | 22300 | Cage Material: | Brass |
|---|---|---|---|
| Bore Type: | Straight | Radial Clearance: | C3 |
| Angular Misalignment: | 2° | Seal Type: | Unsealed |
| Static Load Rating (kN): | 385 kN | Number of Rows: | 2 |
| Rolling Element: | Spherical Roller | Misalignment: | Yes |
| Material: | 52100 Bearing Steel | Duplexing: | No |
| Speed (Max) Grease (RPM): | 2, 890 rpm | Sealed: | None |
| Platform: | Spherical Radial | Speed (Max) Oil (RPM): | 3, 825 rpm |
| Full Complement/Caged: | Caged | Dynamic Load Rating (kN): | 385 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410092594 |
| Weight: | 10.18 LB | Packaged Length: | 6.6 Inches |
| Packaged Width: | 6.3 Inches | Packaged Height: | 2.4 Inches |
| Country of Origin: | China |
