- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22311 GMEX C3 W33

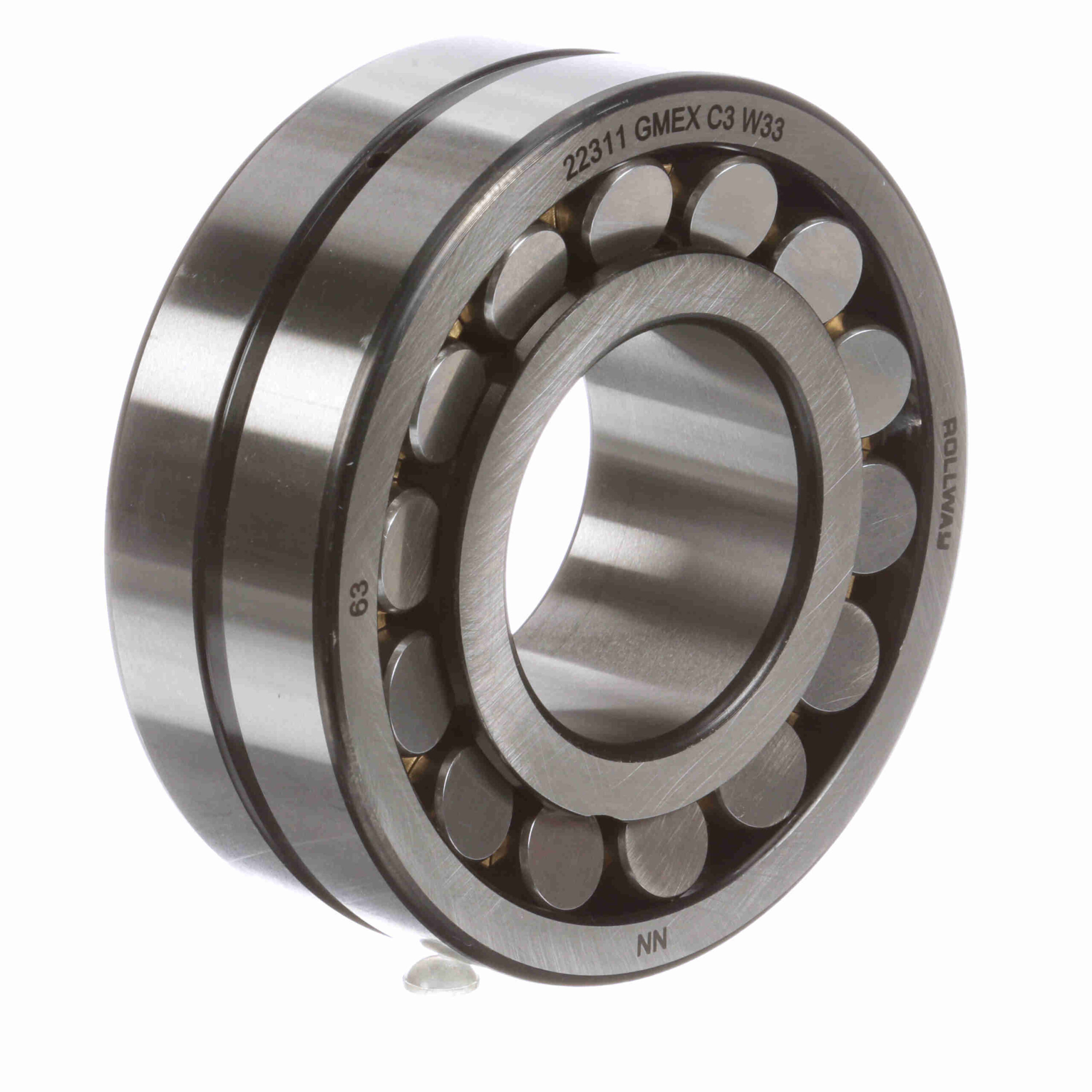

Rollway Radial Spherical Roller Bearing – Straight Bore – 22311 GMEX C3 W33
$267.11
Availability: 4 in stock
Availability: 4 in stock
| Bore Type: | Straight | Cage Material: | Brass |
|---|---|---|---|
| Angular Misalignment: | 2° | Series: | 22300 |
| Radial Clearance: | C3 | Seal Type: | Unsealed |
| Misalignment: | Yes | Material: | 52100 Bearing Steel |
| Static Load Rating (kN): | 258 kN | Rolling Element: | Spherical Roller |
| Number of Rows: | 2 | Platform: | Spherical Radial |
| Full Complement/Caged: | Caged | Speed (Max) Oil (RPM): | 4, 760 rpm |
| Sealed: | None | Duplexing: | No |
| Speed (Max) Grease (RPM): | 3, 655 rpm | Dynamic Load Rating (kN): | 258 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410092525 |
| Weight: | 5.20 LB | Packaged Length: | 5 Inches |
| Packaged Width: | 5 Inches | Packaged Height: | 1.8 Inches |
| Country of Origin: | China |
