- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22210 GMEX KC3 W33

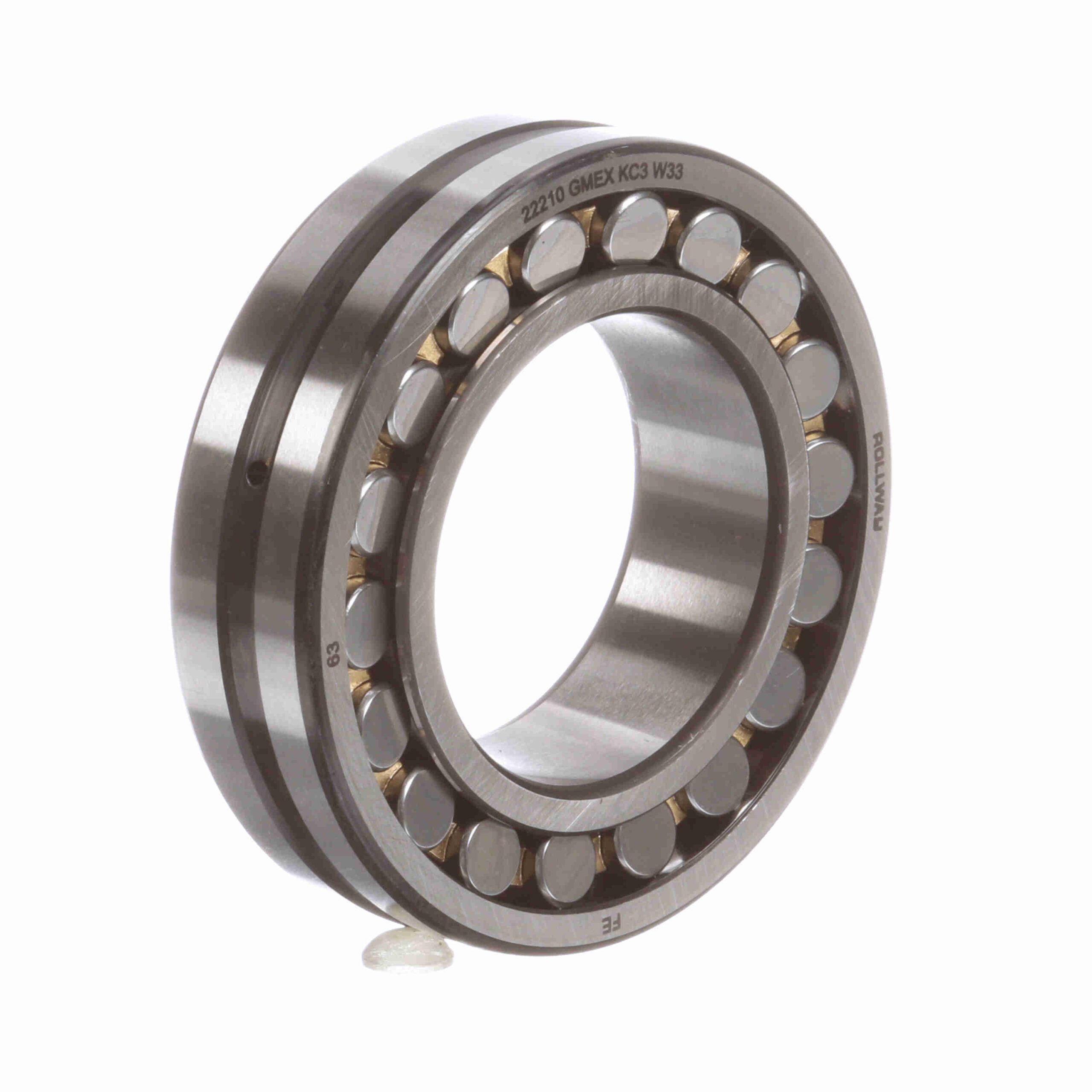

Rollway Radial Spherical Roller Bearing – Tapered Bore – 22210 GMEX KC3 W33
$161.03
Out of stock
Out of stock
| Radial Clearance: | C3 | Bore Type: | Tapered |
|---|---|---|---|
| Cage Material: | Brass | Angular Misalignment: | 1.5° |
| Series: | 22200 | Seal Type: | Unsealed |
| Rolling Element: | Spherical Roller | Material: | 52100 Bearing Steel |
| Static Load Rating (kN): | 102 kN | Misalignment: | Yes |
| Number of Rows: | 2 | Speed (Max) Grease (RPM): | 5, 950 rpm |
| Speed (Max) Oil (RPM): | 8, 075 rpm | Duplexing: | No |
| Sealed: | None | Platform: | Spherical Radial |
| Full Complement/Caged: | Caged | Dynamic Load Rating (kN): | 102 kN |
| Mounting Method: | Adapter Mount | UPC: | 637410092020 |
| Weight: | 1.35 LB | Packaged Length: | 3.54 Inches |
| Packaged Width: | 0.91 Inches | Packaged Height: | 3.54 Inches |
| Country of Origin: | China |
