- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22209 GMEX W33

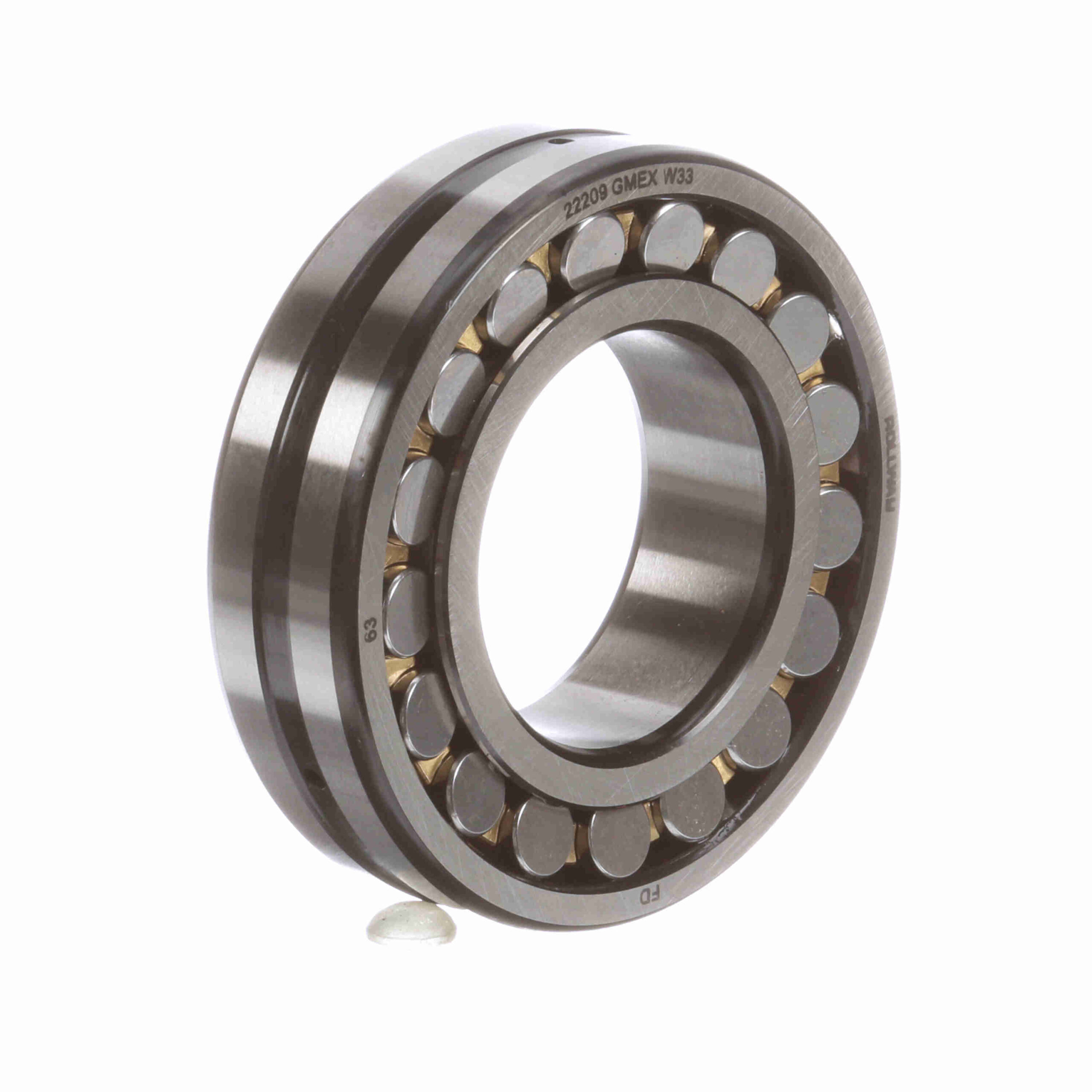

Rollway Radial Spherical Roller Bearing – Straight Bore – 22209 GMEX W33
$152.84
Availability: 4 in stock
Availability: 4 in stock
| Angular Misalignment: | 1.5° | Bore Type: | Straight |
|---|---|---|---|
| Series: | 22200 | Cage Material: | Brass |
| Radial Clearance: | C0 | Seal Type: | Unsealed |
| Misalignment: | Yes | Static Load Rating (kN): | 99.2 kN |
| Material: | 52100 Bearing Steel | Number of Rows: | 2 |
| Rolling Element: | Spherical Roller | Platform: | Spherical Radial |
| Speed (Max) Oil (RPM): | 8, 500 rpm | Sealed: | None |
| Full Complement/Caged: | Caged | Speed (Max) Grease (RPM): | 6, 375 rpm |
| Duplexing: | No | Dynamic Load Rating (kN): | 99.2 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410091993 |
| Weight: | 1.31 LB | Packaged Length: | 3.6 Inches |
| Packaged Width: | 3.5 Inches | Packaged Height: | 1.2 Inches |
| Country of Origin: | China |
