- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22208 GMEX C3 W33

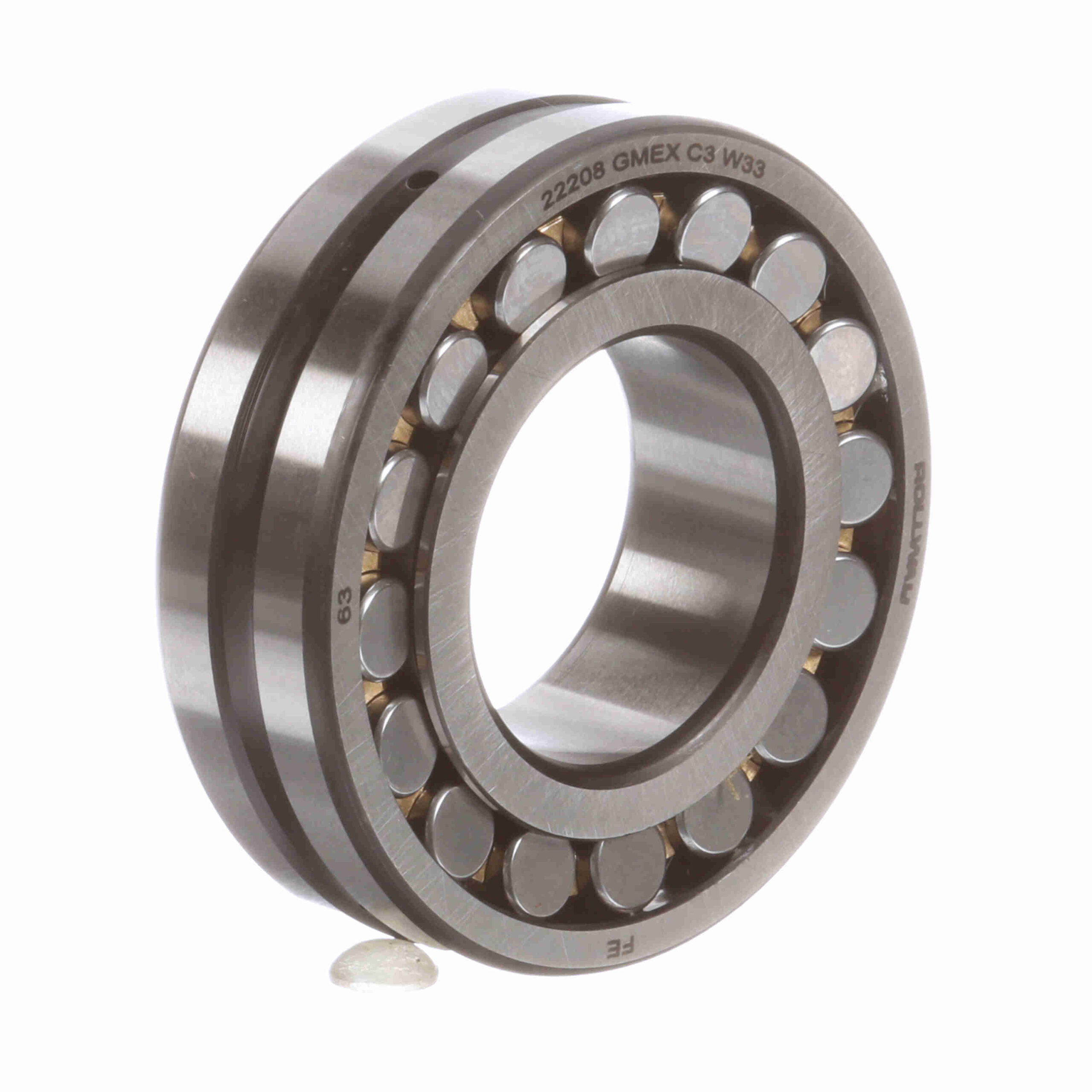

Rollway Radial Spherical Roller Bearing – Straight Bore – 22208 GMEX C3 W33
$143.11
Availability: 7 in stock
Availability: 7 in stock
| Series: | 22200 | Bore Type: | Straight |
|---|---|---|---|
| Cage Material: | Brass | Radial Clearance: | C3 |
| Angular Misalignment: | 1.5° | Seal Type: | Unsealed |
| Misalignment: | Yes | Material: | 52100 Bearing Steel |
| Static Load Rating (kN): | 90.3 kN | Rolling Element: | Spherical Roller |
| Number of Rows: | 2 | Speed (Max) Grease (RPM): | 6, 800 rpm |
| Platform: | Spherical Radial | Speed (Max) Oil (RPM): | 9, 350 rpm |
| Duplexing: | No | Sealed: | None |
| Full Complement/Caged: | Caged | Dynamic Load Rating (kN): | 90.3 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410091924 |
| Weight: | 1.19 LB | Packaged Length: | 3.6 Inches |
| Packaged Width: | 3.4 Inches | Packaged Height: | 1.2 Inches |
| Country of Origin: | China |
