- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Standard Seals: Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
- Options and Accessories: Complete range of motor mounts, belt guards, backstops, trough ends and screw conveyor sealing options.
215DSP307-3

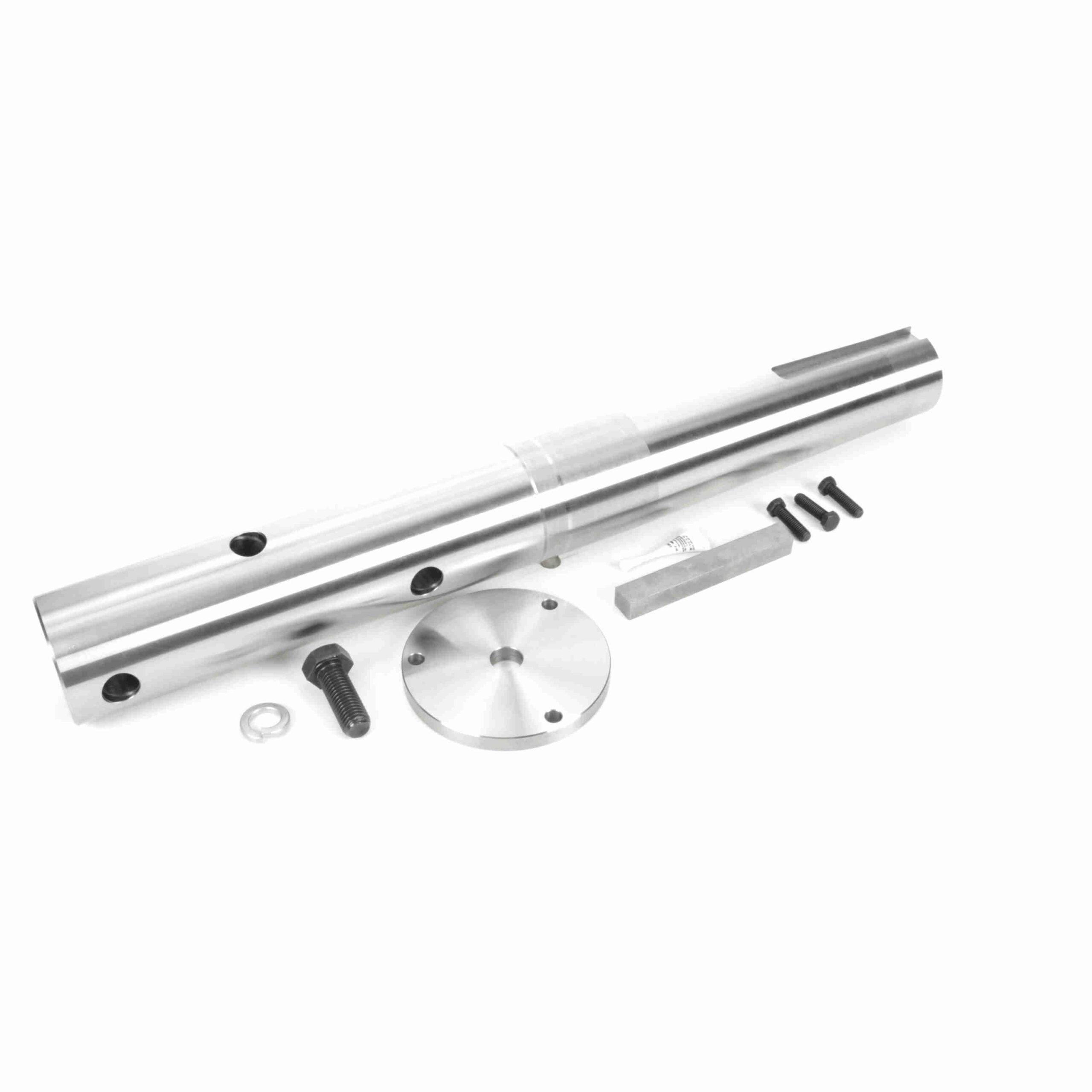

Browning Torque Taper Plus Shaft Mount Reducers Screw Conveyor Accessory – 215DSP307-3
$2,109.45
Out of stock
Out of stock
| Screw Diameter: | 18-24 | Product Type: | TorqTaper Plus (SMTP) |
|---|---|---|---|
| Key: | .500 x .500 x 3.75 | Used Ratio: | 5:1, 9:1, 15:1, 25:1 or 35:1 |
| Drive Shaft Diameter: | 3.4375 in | Reducer Size: | 215 |
| Series: | 215DSP | Distance between Shaft holes (in): | 4 in |
| Hole Diameter (in): | 0.9063 in | Housing Material: | Steel |
| Shaft Projecting Length (in): | 13.14 in | Accessory Type: | Screw Conveyor Accessories |
| UPC: | 662460492827 | Weight: | 67.80 LB |
| Packaged Length: | 3.5 Inches | Packaged Width: | 27.5 Inches |
| Packaged Height: | 3.5 Inches | HTC: | 8483.90.5090 |
| Country of Origin: | United States of America |
