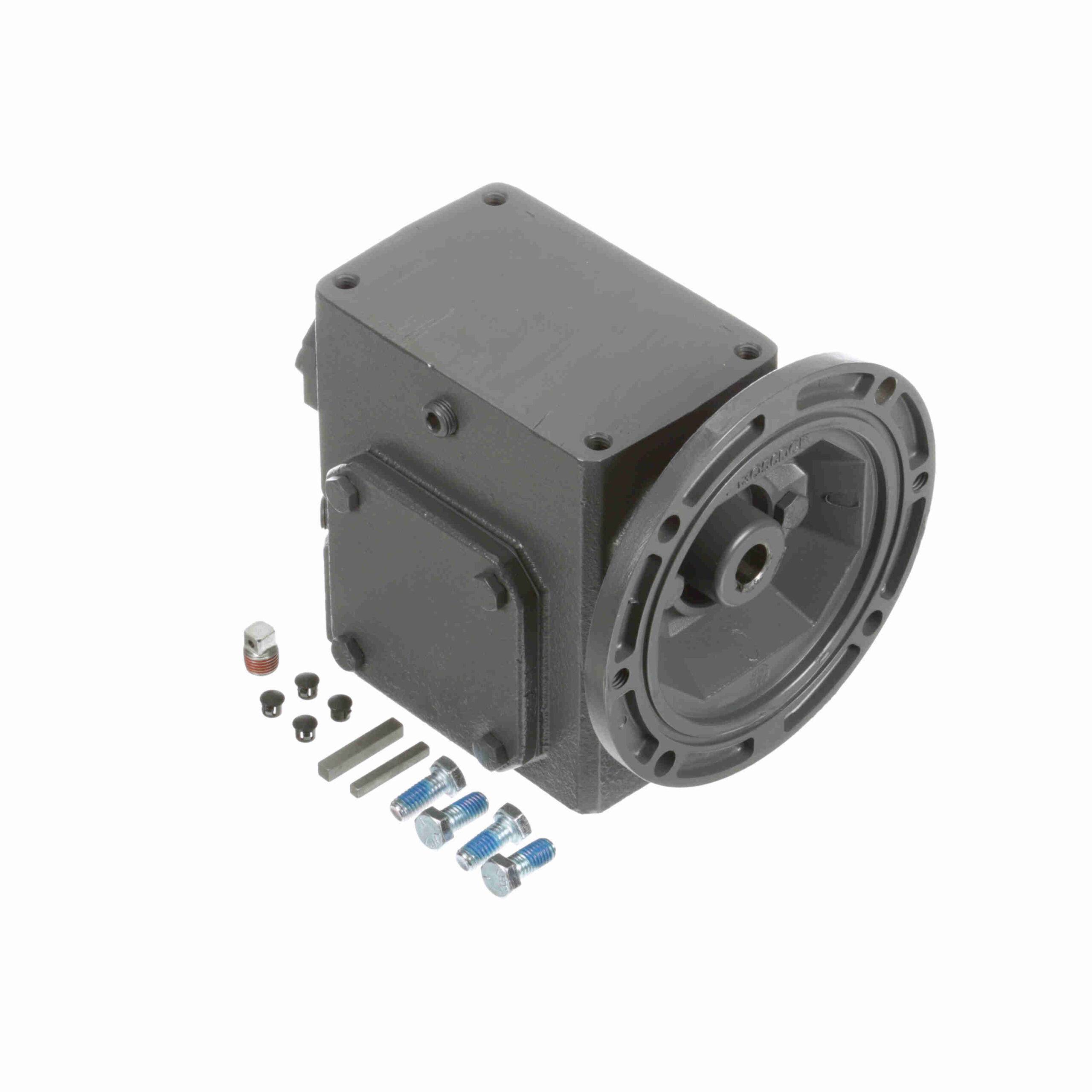

206Q56R60

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Shaft Seal Material:	Nitrile	Input Bore (C Face):	0.625
Thrust Rating - output shaft:	2305	Motor Frame Size:	56C
Input Keyway (C Face):	3/16 X 3/32	Input Speed:	1750
Ratio:	60:1	Efficiency:	80
Reducer Style:	Standard	Ratio Range:	60:1
Output RPM:	29.1	Input Diameter (in):	0.625 in
No. of Gear Reductions:	Single	Gear Type:	Worm
Center Distance (in):	2.06	Input Style:	C-Face Quill
Model Code:	206Q	Series Code:	Raider
Output Diameter (in):	1.000 in	Reducer:	Worm - Right Angle
Mounting Style:	No Base	Input HP @ 1750 RPM:	0.52
Product Type:	Worm Speed Reducer	Input RPM:	1, 75
Assembly:	Q-R	Output Key:	1/4 X 1.75
Service Factor:	1	Frame Size:	56C
Output Shaft Assembly Code:	R	Output Shaft Direction:	Right
Output Shaft:	Solid Shaft	Overhung Load Rating (Output Shaft(lb)):	1, 078 lb
Housing Material:	Cast Iron	Output Torque Rating (in-lb):	940 in-lbs @1750 input RPM in/lbs
UPC:	6, 62288E+11	Weight:	29.00 LB
