- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
175UH20 100

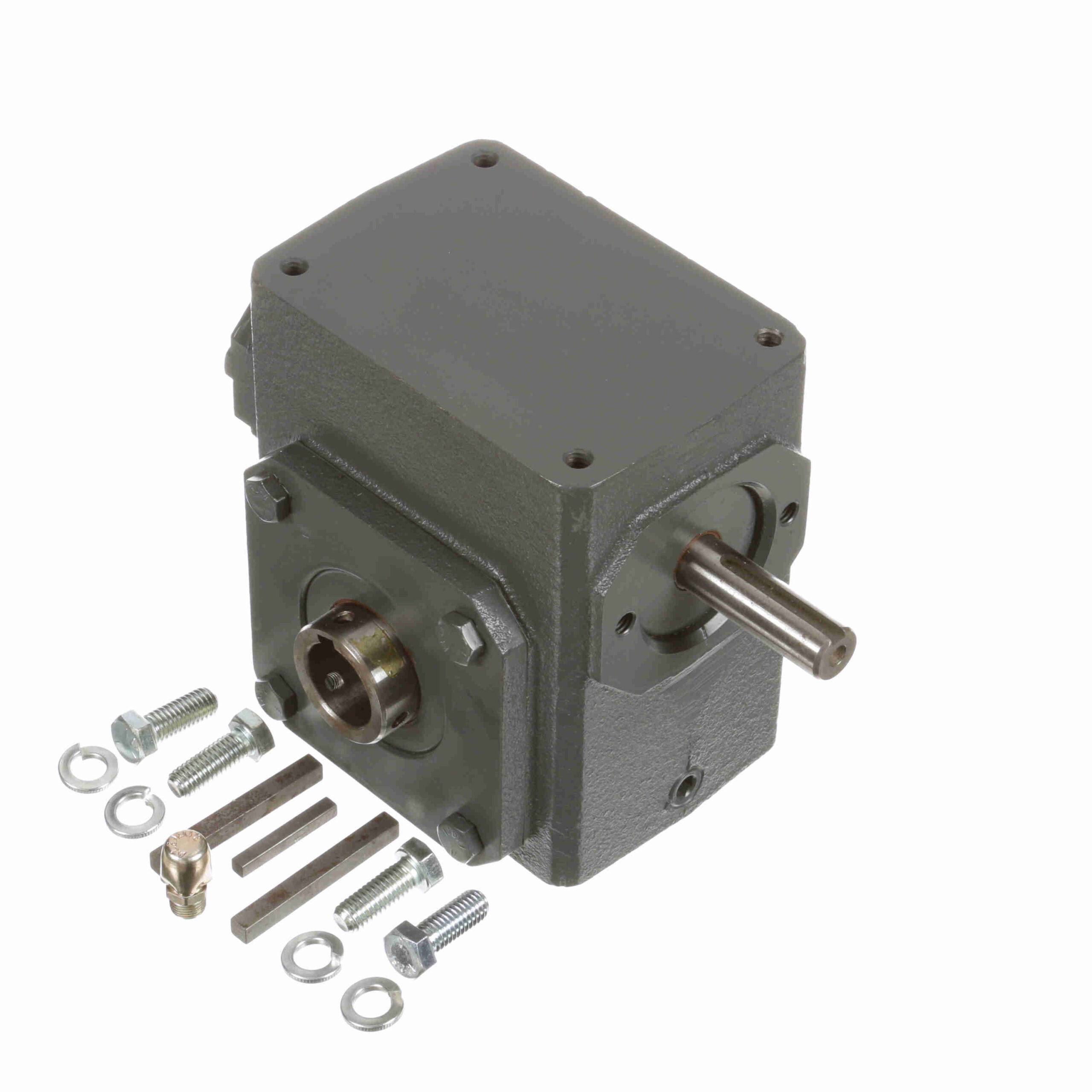

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 175UH20 100
$1,321.74
Out of stock
Out of stock
| Reducer Style: | Standard | Key Sq.: | 0.188 |
|---|---|---|---|
| Key Length: | 1.38 | Efficiency: | 80 |
| Ratio: | 20:1 | Thrust Rating - output shaft: | 1144 |
| Input Speed: | 1750 | Series Code: | Raider |
| Input Diameter (in): | 0.625 in | No. of Gear Reductions: | Single |
| Output Diameter (in): | 1.000 in | Input Style: | Shaft |
| Mounting Style: | Shaft Mt | Center Distance (in): | 1.75 |
| Input HP @ 1750 RPM: | 1.05 | Service Factor: | 1 |
| Ratio Range: | 20:1 | Product Type: | Worm Speed Reducer |
| Gear Type: | Worm | Output Shaft Direction: | L or R |
| Housing Material: | Cast Iron | Overhung Load Rating (Output Shaft(lb)): | 1, 200 lb |
| Output Torque Rating (in-lb): | 630 in-lbs @1750 input RPM in/lbs | Output Shaft: | Hollow Bore |
| UPC: | 6, 62288E+11 | Weight: | 18.01 LB |
| Packaged Length: | 9.4 Inches | Packaged Width: | 9.3 Inches |
| Packaged Height: | 9.1 Inches |
