- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
133Q56H5 010

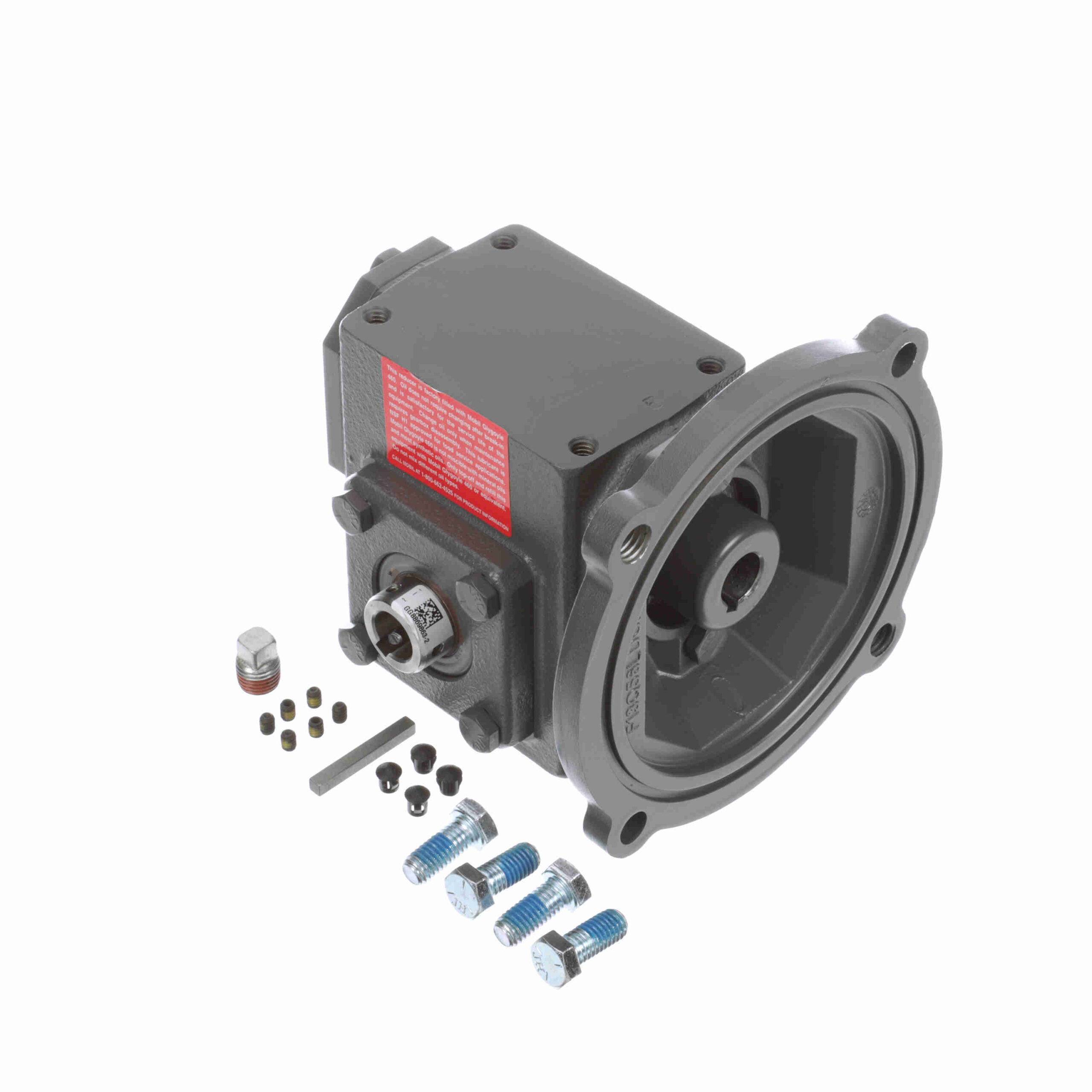

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 133Q56H5 010
$1,206.20
Out of stock
Out of stock
| Thrust Rating - output shaft: | 827 | Input Bore (C Face): | 0.625 |
|---|---|---|---|
| Motor Frame Size: | 56C | Efficiency: | 80 |
| Input Speed: | 1750 | Ratio: | 5:1 |
| Input Keyway (C Face): | 3/16 x 3/32 | Reducer Style: | Standard |
| Frame Size: | 56C | Service Factor: | 1 |
| Gear Type: | Worm | Product Type: | Worm Speed Reducer |
| Output Diameter (in): | 0.625 in | No. of Gear Reductions: | Single |
| Ratio Range: | 5:1 | Mounting Style: | Shaft Mt |
| Input HP @ 1750 RPM: | 1.248 | Series Code: | Raider |
| Input Diameter (in): | 0.625 in | Input Style: | C-Face Quill |
| Center Distance (in): | 1.33 | Output Shaft Direction: | L or R |
| Output Torque Rating (in-lb): | 209 in-lbs @1750 input RPM in/lbs | Overhung Load Rating (Output Shaft(lb)): | 700 lb |
| Output Shaft: | Hollow Bore | Housing Material: | Cast Iron |
| UPC: | 6, 62288E+11 | Weight: | 18.00 LB |
| Packaged Length: | 10.69 Inches | Packaged Width: | 9.06 Inches |
| Packaged Height: | 10.5 Inches |
