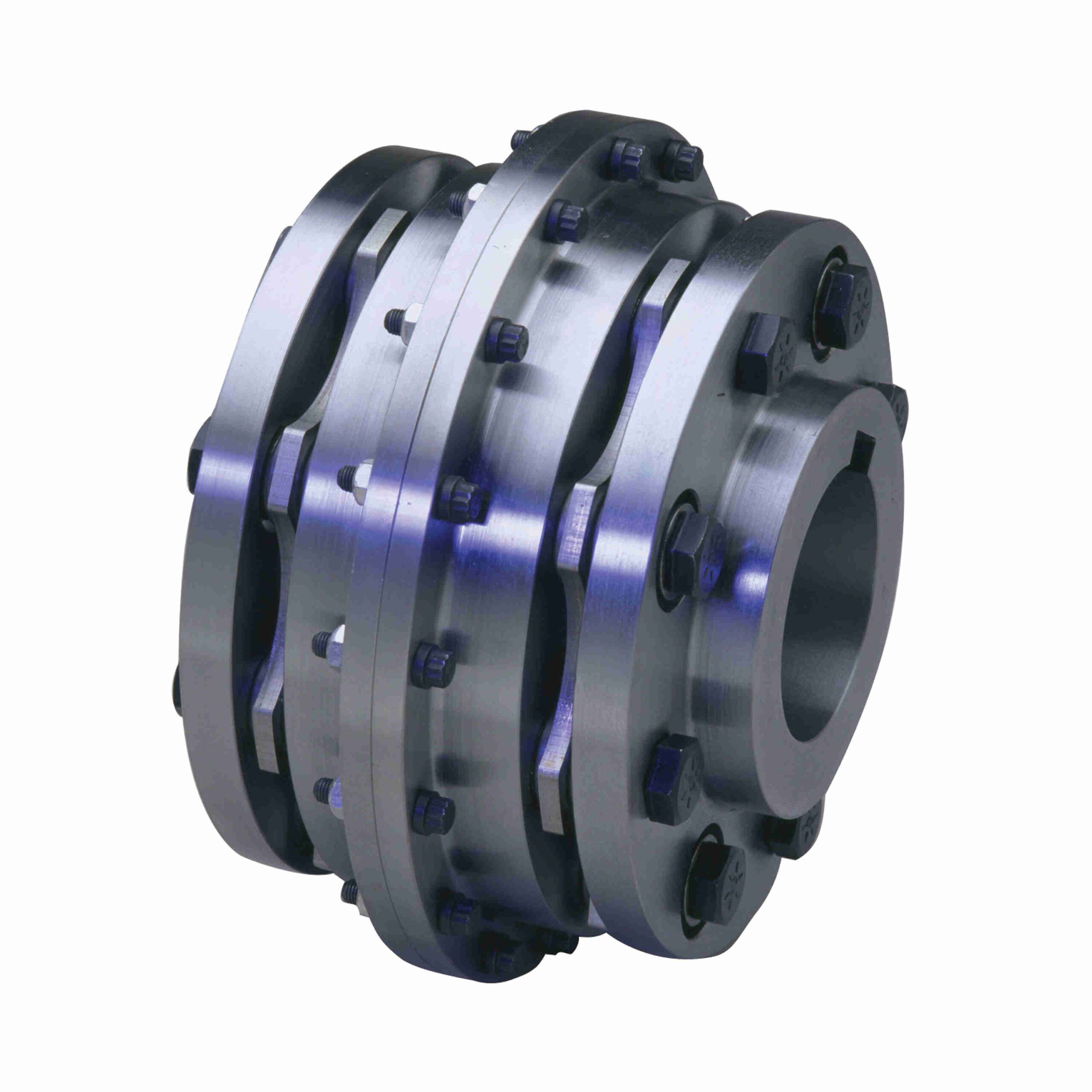

204 KD 11 SS

Close Coupled disc coupling design with reversible hubs to accommodate various shaft separations.
Unitized Disc Packs for ease of maintenance.
HT (High Torque) disc packs for medium duty applications.
Meet AGMA Class 9 balance off the shelf, may be balanced to AGMA Class 10 or 11.

Coupling Size:	204	Hub Material:	Carbon Steel
Style:	KD11	Total WR2 (lb-in2):	189 psi
Total Length (Std Hub Post) (in):	5 in	Axial Capacity (+/-):	0.11
Total Length (Two Hub Reverse) (in):	8 in	Outside Diameter (in):	7.81 in
Bore Type:	Rough Bore	Total Length (One Hub Reverse) (in):	6.5 in
Configuration:	2 standard hubs	Torque [Max] (ft-lb):	6, 000 ft/lbs
Torque Rating (in-lb):	36, 000 in/lbs	Length Through Bore standard hub (in):	2.44 in
Disc Coupling Type:	Close Coupled	Hub Diameter (in):	3.64 in
Disc Shape:	Scalloped	Bore Size Min (in):	2.63 in
UPC:	662384155365	Weight:	37.94 LB
