- Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
2-215

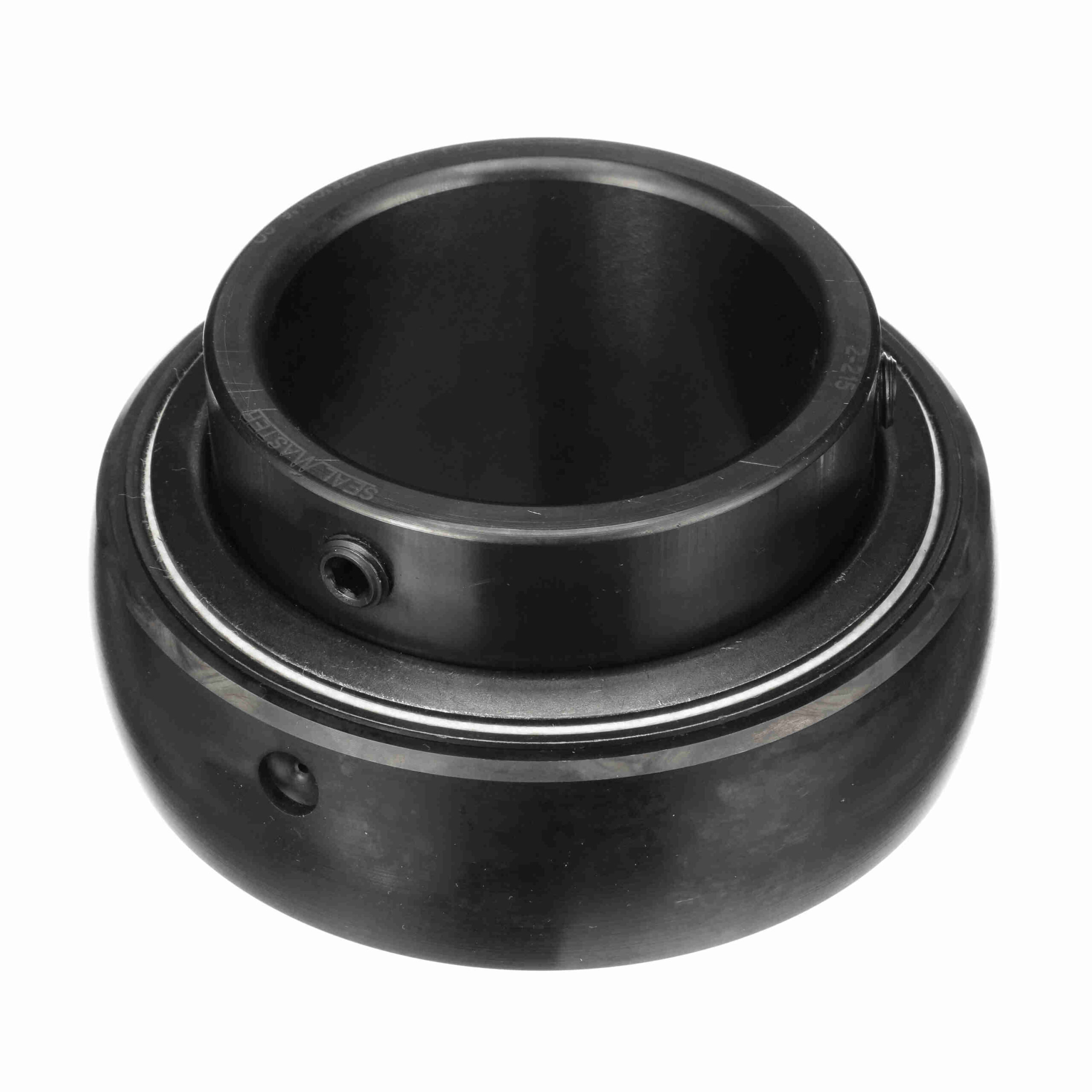

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – 2-215
$410.34
Availability: 2 in stock
Availability: 2 in stock
| Insert Material: | 52100 Bearing Steel; Black Oxided | Measure Units: | Inch |
|---|---|---|---|
| Set Screw Thread: | 7/16-20 | Bore Shape: | Straight |
| Radius: | 0.08 | Retainer Type: | Land Riding Retainer |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Duty Series: | Standard |
| Housing Type: | Insert Only | Seal Type: | Felt Labyrinth Seal |
| Rolling Element: | Ball Bearing | Maximum Operating Temperature: | 220 °F |
| Expansion: | No | Internal Clearance: | Standard |
| Radial Dynamic Load Capacity (lb): | 14, 839 | Speed (Max): | 2450 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Relubricatable: | Yes |
| Locking Type: | Setscrew | Misalignment: | ±2.0° Misalignment - Static Only |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Platform: | Gold Line Ball Bearing | Radial Static Load Capacity (lb): | 11, 224 |
| Precision Rating: | ABEC 1 | Cage Material: | Brass |
| Inner Race Profile: | Wide Inner Ring | Outer Race Profile: | Spherical |
| UPC: | 662461000496 | Weight: | 5.92 LB |
| Packaged Length: | 5.5 Inches | Packaged Width: | 3.13 Inches |
| Packaged Height: | 5.56 Inches | HTC: | 8482.10.5056 |
| Country of Origin: | United States of America |
