- Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
- Zone hardened double lock inner ring with 120° spacing setscrew lock with diamond faceted setscrews on each side of ball path
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
2-17D

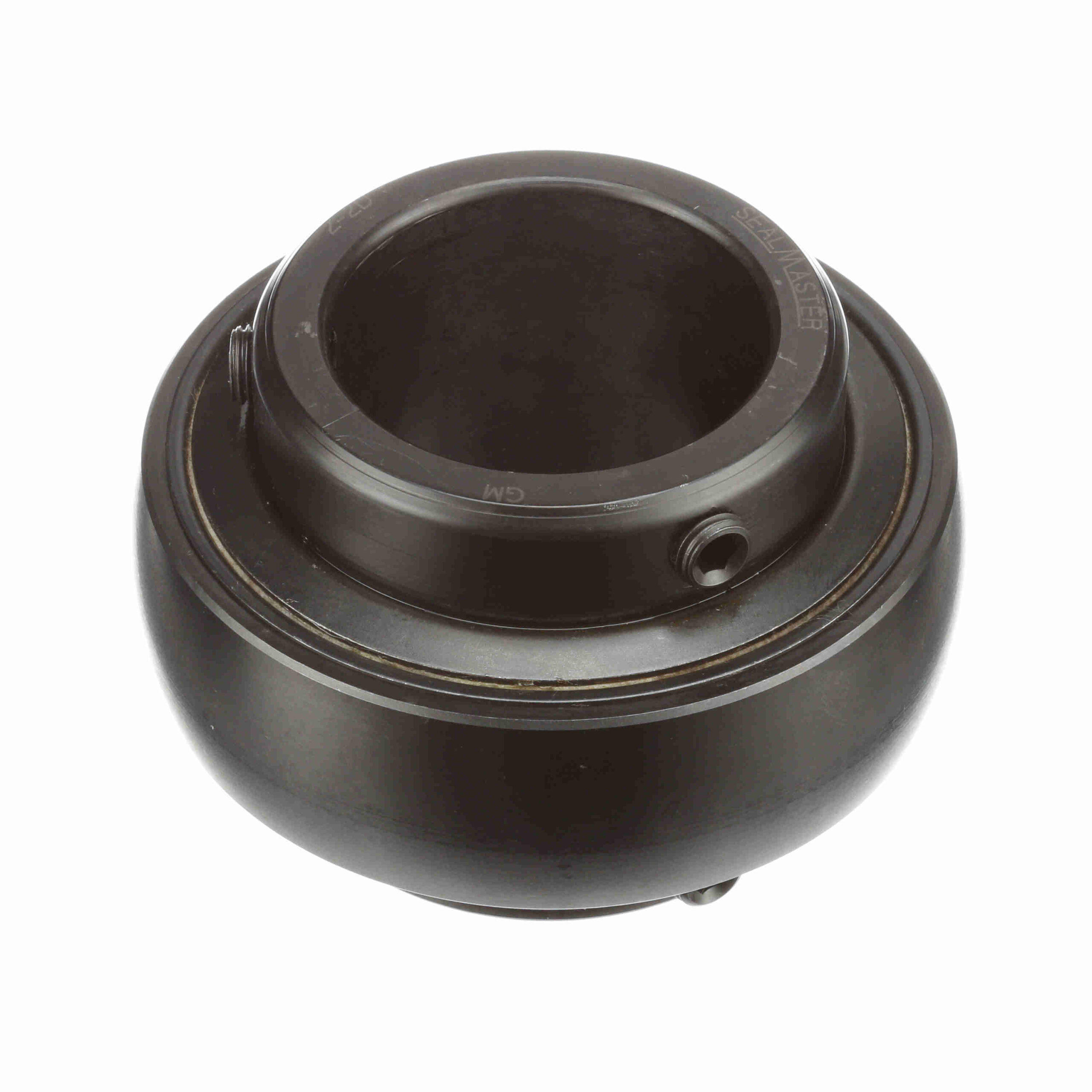

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Double Setscrew Lock – 2-17D
Out of stock
| Rolling Element: | Ball Bearing | Misalignment Type: | Static Only |
|---|---|---|---|
| End Cap: | No | Inner Race Heat Treat Method: | Zone-Hardened |
| Radius: | 0.04 | Bearing Insert Coating: | Black Oxide Coated |
| Radial Dynamic Load Capacity (lb): | 5, 782 lb | Duty/Series: | Standard |
| Bore Shape: | Straight | Housing Type: | Insert Only |
| Outer Ring Land Profile: | Standard | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Maximum Operating Temperature (F): | 220 °F | Platform: | Gold Line Ball Bearing |
| Speed (Max) (RPM): | 6500 rpm | Measure Units: | Inch |
| Internal Clearance: | Standard | Set Screw Thread: | 5/16-24 |
| Misalignment: | ±2.0° Misalignment - Static Only | Radial Static Load Capacity (lb): | 3, 493 lb |
| Precision Rating: | ABEC 1 | Cage Material: | Brass |
| Inner Race Profile: | Wide Inner Ring | Outer Race Profile: | Spherical |
| Fixed vs. Expansion: | No | Type of Seal: | Felt Labyrinth Seal |
| Retainer Type: | Land Riding Retainer | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Double Setscrew | Ability to Relubricate: | Yes |
| UPC: | 662461014875 | Weight: | 1.30 LB |
| Packaged Length: | 3.63 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 3.63 Inches | HTC: | 8482.10.5052 |
| Country of Origin: | Mexico |
