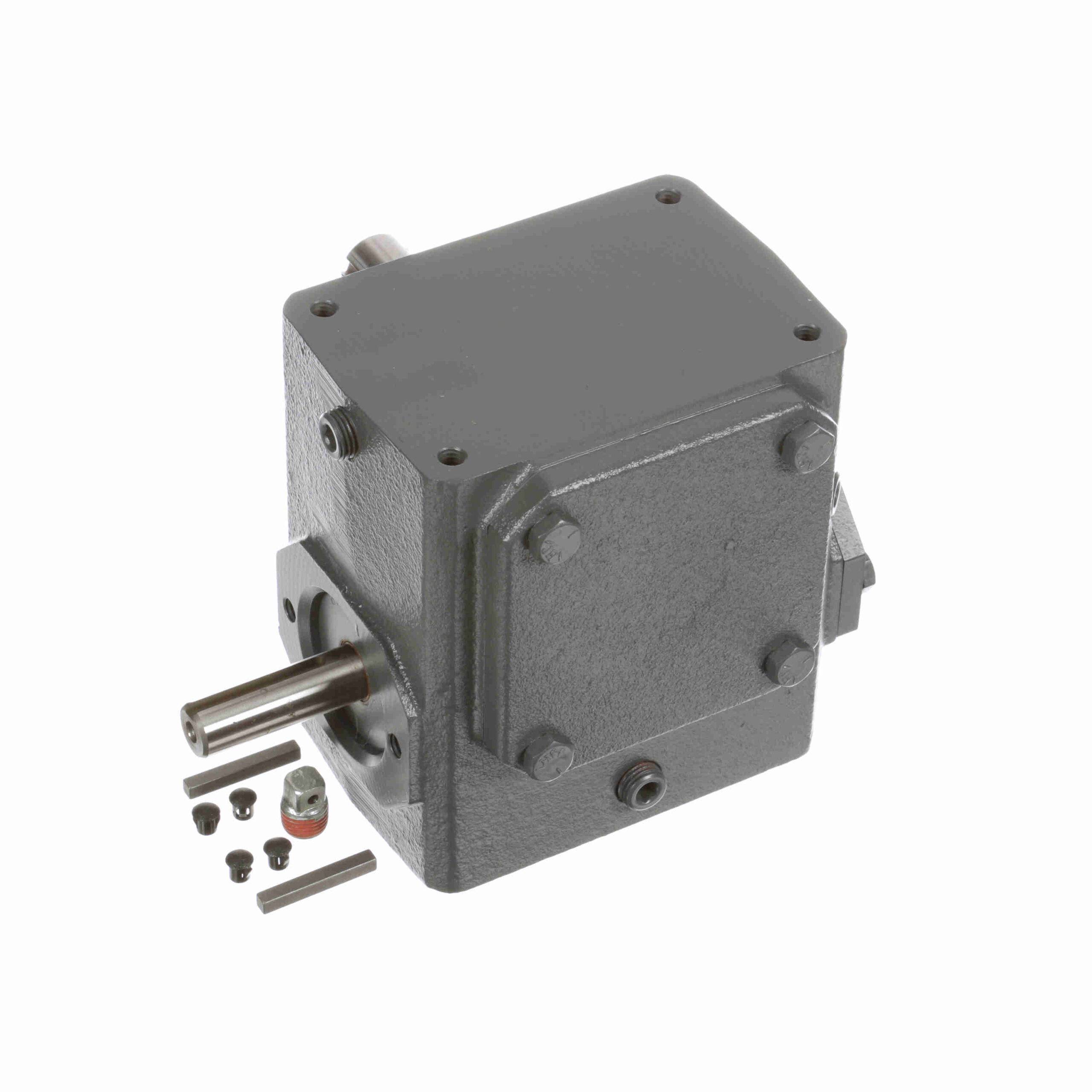

175UR60

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Thrust Rating - output shaft:	1399	Key Length:	1.38
Ratio:	60:1	Key Sq.:	0.1875
Shaft Seal Material:	Nitrile	Efficiency:	80
Reducer Style:	Standard	Input Speed:	1750
Model Code:	175U	Product Type:	Worm Speed Reducer
Output RPM:	29.1	Input Style:	Solid Shaft
Service Factor:	1	Input RPM:	1, 750
Ratio Range:	60:1	Mounting Style:	No Base
Gear Type:	Worm	Input Diameter (in):	0.625 in
Center Distance (in):	1.75	Series Code:	Raider
Output Diameter (in):	0.875 in	Output Key:	3/16 X 1.38
Reducer:	Worm - Right Angle	Output Shaft Assembly Code:	R
Input HP @ 1750 RPM:	0.35	No. of Gear Reductions:	Single
Input Keyway:	3/16 X 1.50 in	Assembly:	U-R
Output Shaft Direction:	Right	Output Shaft:	Solid Shaft
Output Torque Rating (in-lb):	623 in-lbs @1750 input RPM in/lbs	Housing Material:	Cast Iron
Overhung Load Rating (Output Shaft(lb)):	740 lb	UPC:	6, 62289E+11
Weight:	20.00 LB
