- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
175ULR5

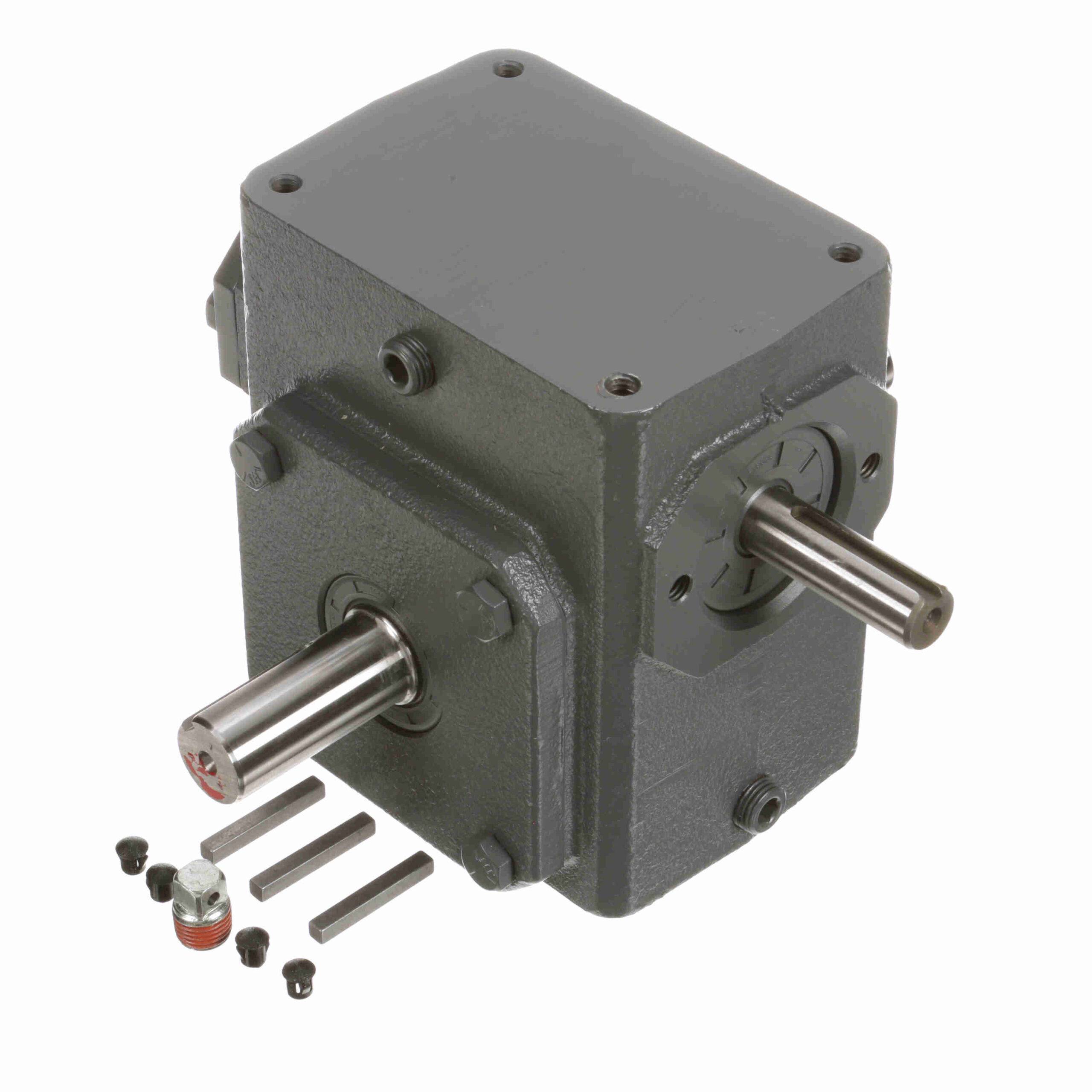

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 175ULR5
$1,045.64
Out of stock
Out of stock
| Input Speed: | 1750 | Key Length: | 1.38 |
|---|---|---|---|
| Thrust Rating - output shaft: | 868 | Reducer Style: | Standard |
| Ratio: | 5:1 | Efficiency: | 80 |
| Shaft Seal Material: | Nitrile | Key Sq.: | 0.1875 |
| Input RPM: | 1, 750 | Gear Type: | Worm |
| Assembly: | U-LR | Output Diameter (in): | 0.875 in |
| Output Key: | 3/16 X 1.38 | Output RPM: | 350 |
| Input Keyway: | 3/16 X 1.50 in | Input Diameter (in): | 0.625 in |
| Mounting Style: | No Base | Product Type: | Worm Speed Reducer |
| Reducer: | Worm - Right Angle | Service Factor: | 1 |
| Center Distance (in): | 1.75 | Output Shaft Assembly Code: | D |
| Ratio Range: | 5:01 | Series Code: | Raider |
| Output Shaft Orientation: | LR | Input Style: | Solid Shaft |
| No. of Gear Reductions: | Single | Input HP @ 1750 RPM: | 2.45 |
| Model Code: | 175U | Output Shaft Direction: | Double |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 436 in-lbs @1750 input RPM in/lbs |
| Output Shaft: | Solid Shaft | Overhung Load Rating (Output Shaft(lb)): | 663 lb |
| UPC: | 6, 62289E+11 | Weight: | 20.00 LB |
