- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
175Q140H15 100

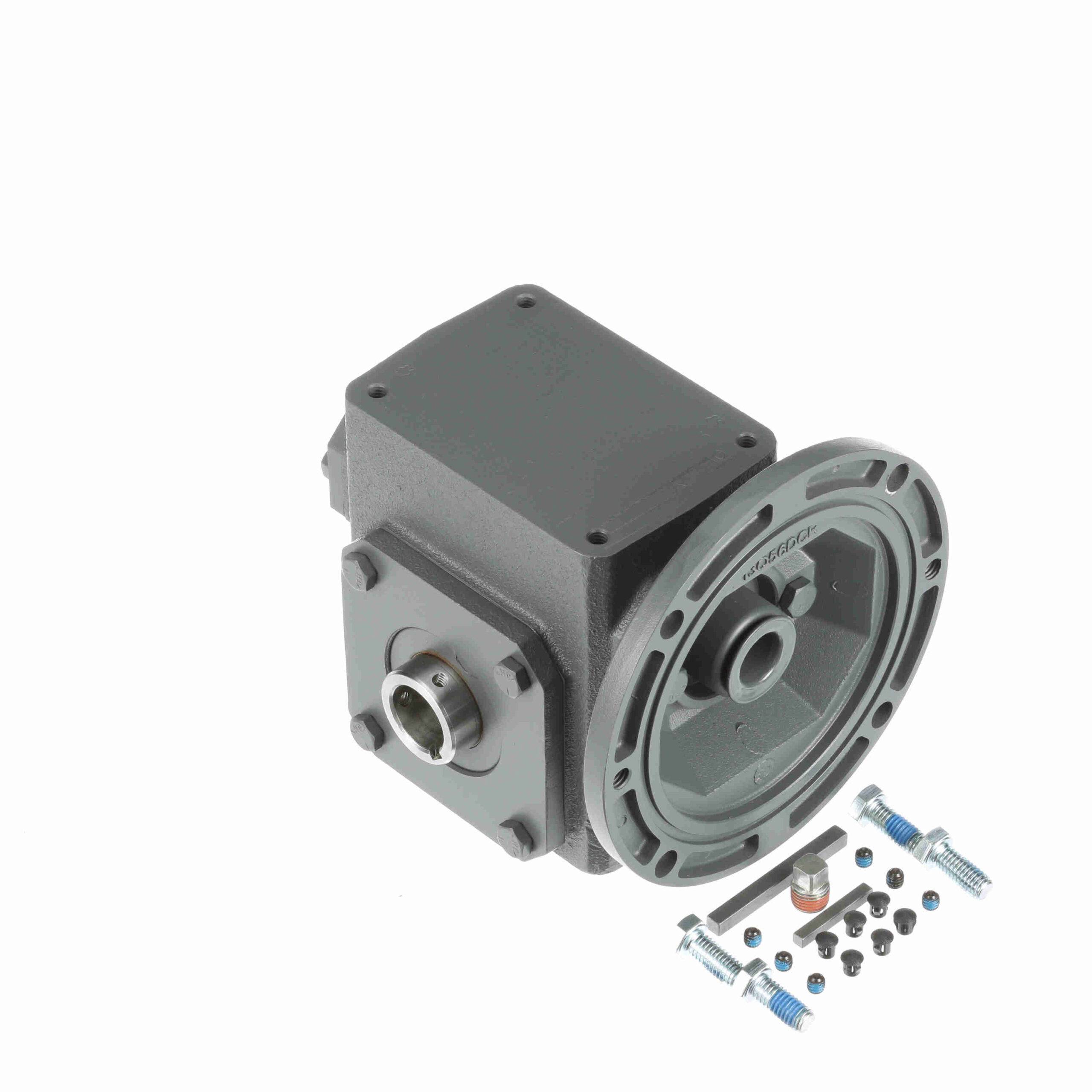

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 175Q140H15 100
$1,450.00
Out of stock
Out of stock
| Motor Frame Size: | 140TC | Reducer Style: | Standard |
|---|---|---|---|
| Thrust Rating - output shaft: | 1144 | Input Bore (C Face): | 0.875 |
| Input Speed: | 1750 | Ratio: | 15:1 |
| Input Keyway (C Face): | 3/16x3/32 | Efficiency: | 80 |
| Manufacturer Reducer Size: | 175 | Maximum Input HP: | 1.22 hp @ 1750 rpm |
| No. of Gear Reductions: | Single | Center Distance (in): | 1.75 |
| Input Diameter (in): | 0.875 in | Input Style: | C-Face Quill |
| Service Factor: | 1 | Mounting Style: | Shaft Mt |
| Output Diameter (in): | 1.000 in | Ratio Range: | 15:1 |
| Frame Size: | 140TC | Input HP @ 1750 RPM: | 1.22 |
| Product Type: | Worm Speed Reducer | Gear Type: | Worm |
| Series Code: | Raider | Output Shaft Direction: | L or R |
| Output Shaft: | Hollow Bore | Overhung Load Rating (Output Shaft(lb)): | 1, 200 lb |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 571 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62288E+11 | Weight: | 25.00 LB |
