- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
16XLB037S

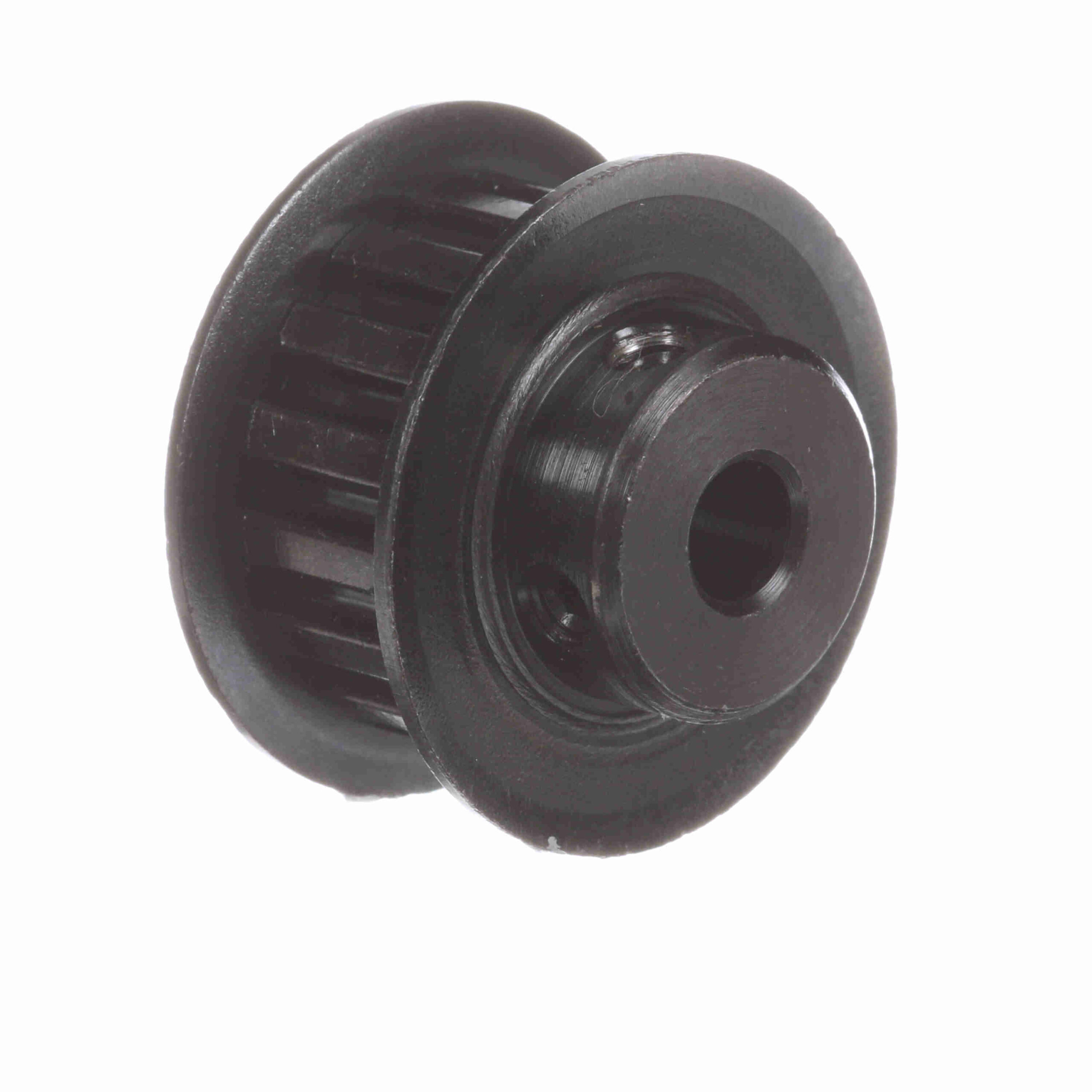

Browning Steel Rough Bore Gearbelt Pulley – 16XLB037S
$100.06
Out of stock
Out of stock
| Product Type: | Gearbelt Pulley | Number of teeth: | 16 |
|---|---|---|---|
| Width (mm): | 9.525 mm | Bore Range: | 1/4 to 3/8 |
| Bore Type: | Rough Bore | Material: | Steel |
| Belt Section: | XL | Outside Diameter (in): | 0.999 in |
| Flange (in): | 1.2500 in | Outside Diameter (mm): | 25.3746 mm |
| Width (in): | 0.375 in | Pitch Diameter (in): | 1.019 in |
| Face Width: | 0.5625 | Length Through Bore: | 0.8125 |
| Hub Projection: | 0.25 | Pulley Construction: | Solid |
| With Flanges: | With Flanges | Overall Length (in): | 0.8125 in |
| Number of Hubs: | 1 | Bore Diameter (in): | 0.25 in |
| Hub Diameter (in): | 0.6875 in | UPC: | 662289753864 |
| Weight: | 0.16 LB | Packaged Length: | 2.56 Inches |
| Packaged Width: | 2.56 Inches | Packaged Height: | 1.38 Inches |
| HTC: | 8483.50.9080 | Country of Origin: | United States of America |
