- Unmatched Quality and Performance in Morse Brand Chain
- High Quality British Standard Metric chain
- British standard chain is manufactured to International Standards
16B-1 10 FT

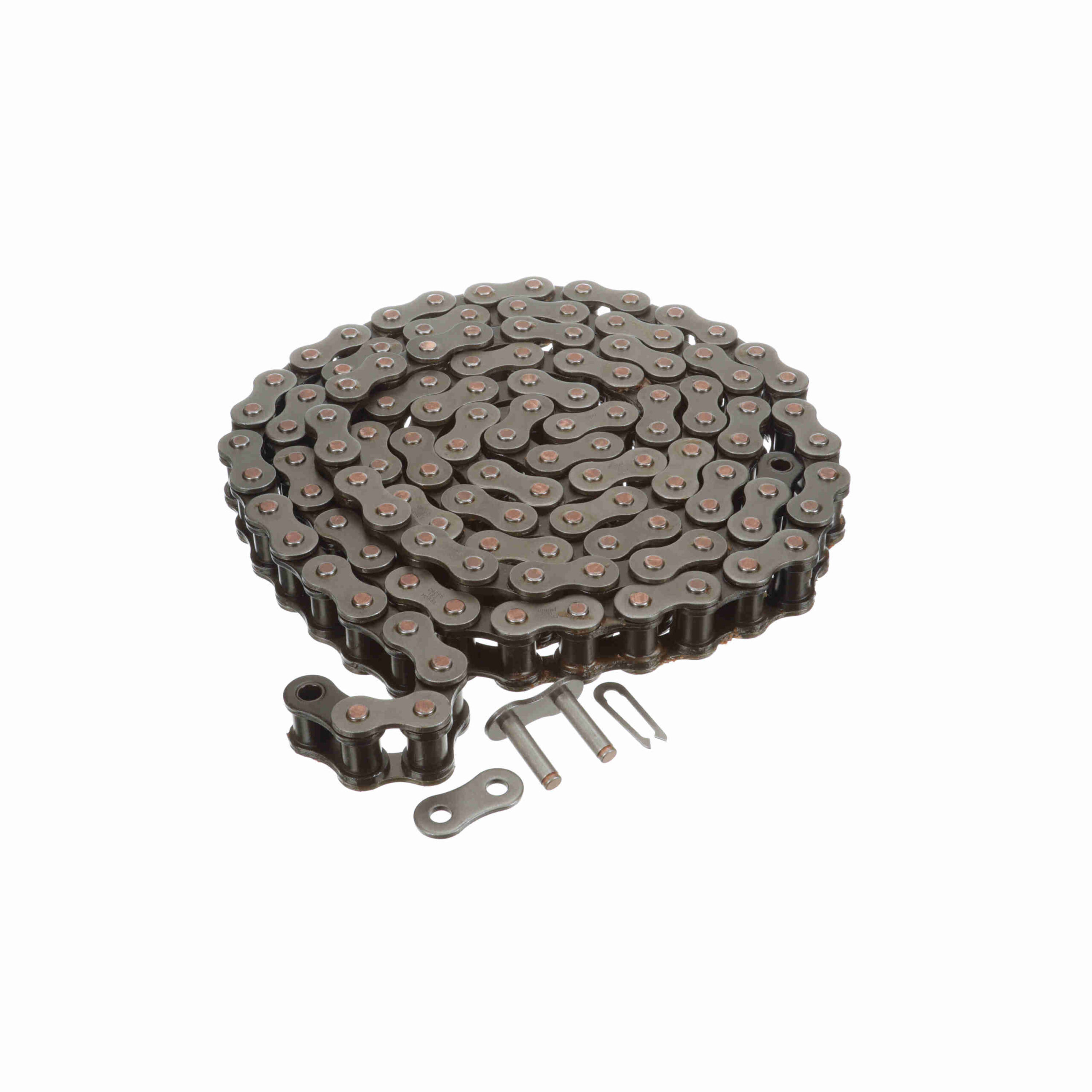

Morse British Standard Cottered Roller Chain – 16B-1 10 FT
$36.34
Out of stock
Out of stock
| Chain Size: | 16 | Roller Width (mm): | 17.02 mm |
|---|---|---|---|
| Width Over Pins/Total Width: | 1.5511811023622 | Connecting Link - Slip Fit: | Spring Clip |
| Number of Strands/Width: | 1 | Chain Construction: | Riveted |
| Pin Diameter (mm): | 8.26 mm | Roller Diameter (mm): | 15.88 mm |
| Inside Plate Height: | 0.81496062992126 | Material: | Steel |
| Product Type: | Roller Chain | Chain Type: | British Standard |
| Chain Pitch (in): | 1 in | Roller Width (in): | 0.67 in |
| Roller Diameter (in): | 0.6252 in | Pin Diameter (in): | 0.3252 in |
| Coating: | Uncoated | Average Ultimate Tensile Strength (psi): | 14, 387 |
| Total Length: | 10 FT ft | Standard Met: | ANSI B29.1 |
| Measurement System: | Metric | Pin Length - Riveted: | 1.5512 |
| UPC: | 662460388489 | Weight: | 1.88 LB |
| Packaged Length: | 11.30 Inches | Packaged Width: | 11.10 Inches |
| Packaged Height: | 1.60 Inches | HTC: | 7315.11.0060 |
| Country of Origin: | China |
