- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
154Q56H20 010

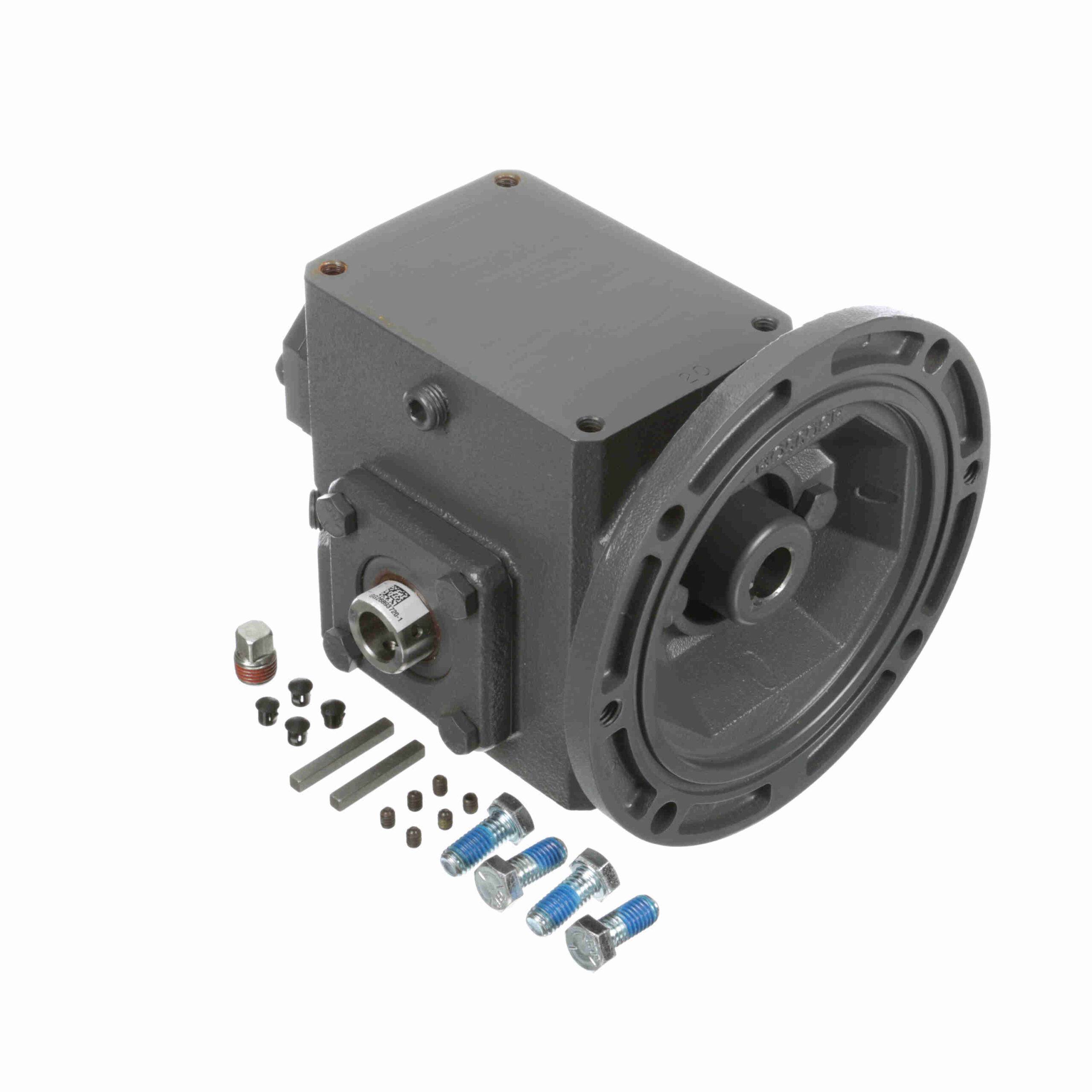

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 154Q56H20 010
$1,441.09
Out of stock
Out of stock
| Input Bore (C Face): | 0.625 | Input Speed: | 1750 |
|---|---|---|---|
| Reducer Style: | Standard | Motor Frame Size: | 56C |
| Ratio: | 20:1 | Thrust Rating - output shaft: | 1144 |
| Efficiency: | 80 | Input Keyway (C Face): | 3/16 x 3/32 |
| Frame Size: | 56C | Ratio Range: | 20:1 |
| Mounting Style: | Shaft Mt | Product Type: | Worm Speed Reducer |
| Series Code: | Raider | Service Factor: | 1 |
| Input HP @ 1750 RPM: | 0.919 | Input Style: | C-Face Quill |
| Gear Type: | Worm | Input Diameter (in): | 0.625 in |
| Center Distance (in): | 1.54 | Output Diameter (in): | 0.625 in |
| No. of Gear Reductions: | Single | Output Shaft Direction: | L or R |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 518 in-lbs @1750 input RPM in/lbs |
| Output Shaft: | Hollow Bore | Overhung Load Rating (Output Shaft(lb)): | 860 lb |
| UPC: | 6, 62288E+11 | Weight: | 16.10 LB |
| Packaged Length: | 9.3 Inches | Packaged Width: | 9.3 Inches |
| Packaged Height: | 9 Inches |
