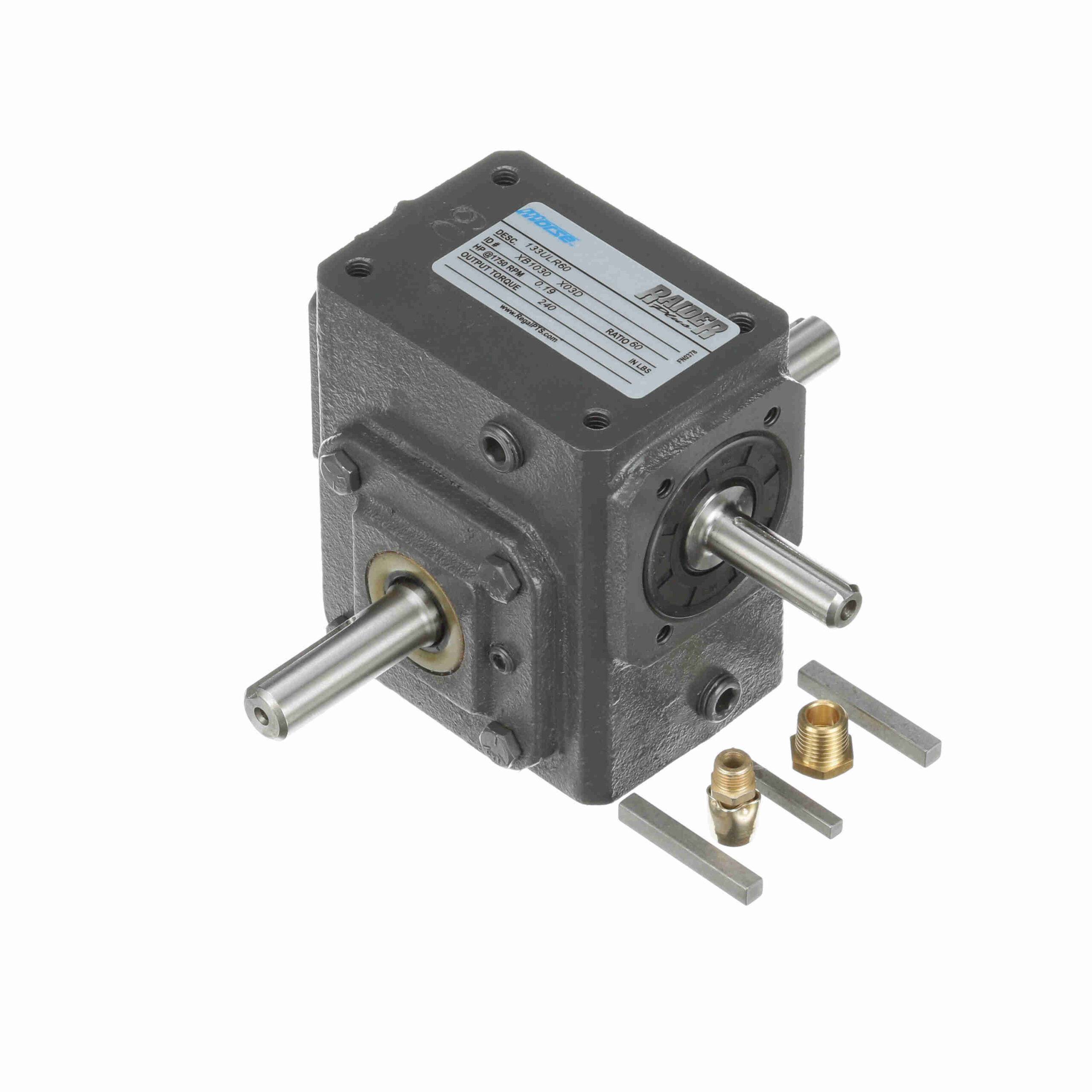

133ULR50

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Speed:	1750	Thrust Rating - output shaft:	1399
Shaft Seal Material:	Nitrile	Key Sq.:	0.125
Key Length:	1	Efficiency:	80
Reducer Style:	Standard	Ratio:	50:1
Input HP @ 1750 RPM:	0.22	Gear Type:	Worm
Product Type:	Worm Speed Reducer	Output Diameter (in):	0.625 in
Center Distance (in):	1.33	No. of Gear Reductions:	Single
Output Shaft Assembly Code:	D	Ratio Range:	50:1
Series Code:	Raider	Output RPM:	35
Input Style:	Solid Shaft	Assembly:	U-LR
Service Factor:	1	Input Diameter (in):	0.5 in
Output Key:	3/16 X 1.31	Reducer:	Worm - Right Angle
Output Shaft Orientation:	LR	Mounting Style:	No Base
Input RPM:	1, 75	Model Code:	133U
Input Keyway:	1/8 X 1.38 in	Output Shaft Direction:	Double
Housing Material:	Cast Iron	Output Torque Rating (in-lb):	327 in-lbs @1750 input RPM in/lbs
Output Shaft:	Solid Shaft	Overhung Load Rating (Output Shaft(lb)):	458 lb
UPC:	6, 62288E+11	Weight:	17.00 LB
