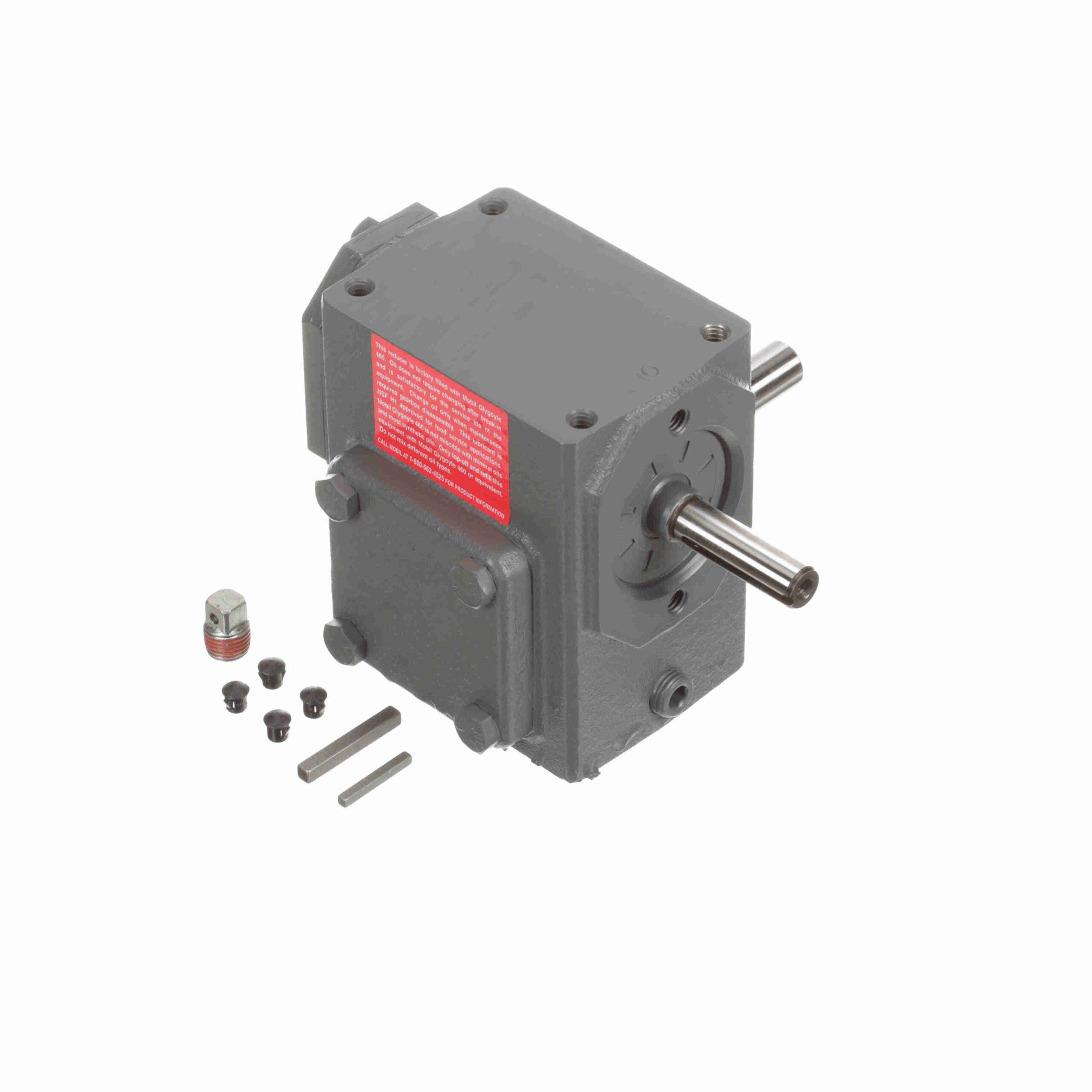

133UR10

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Speed:	1750	Key Sq.:	0.125
Efficiency:	80	Key Length:	1
Ratio:	10:1	Thrust Rating - output shaft:	1001
Shaft Seal Material:	Nitrile	Reducer Style:	Standard
Assembly:	U-R	Model Code:	133U
Output Key:	3/16 X 1.31	Gear Type:	Worm
Reducer:	Worm - Right Angle	Output Diameter (in):	0.625 in
Input RPM:	1, 750	Input Diameter (in):	0.5 in
Input HP @ 1750 RPM:	0.77	Input Style:	Solid Shaft
Ratio Range:	10:1	Service Factor:	1
Mounting Style:	No Base	No. of Gear Reductions:	Single
Output RPM:	175	Input Keyway:	1/8 X 1.38 in
Product Type:	Worm Speed Reducer	Series Code:	Raider
Output Shaft Assembly Code:	R	Center Distance (in):	1.33
Output Shaft Direction:	Right	Overhung Load Rating (Output Shaft(lb)):	458 lb
Output Torque Rating (in-lb):	263 in-lbs @1750 input RPM in/lbs	Output Shaft:	Solid Shaft
Housing Material:	Cast Iron	UPC:	6, 62288E+11
Weight:	17.00 LB
