- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
133UH50 010

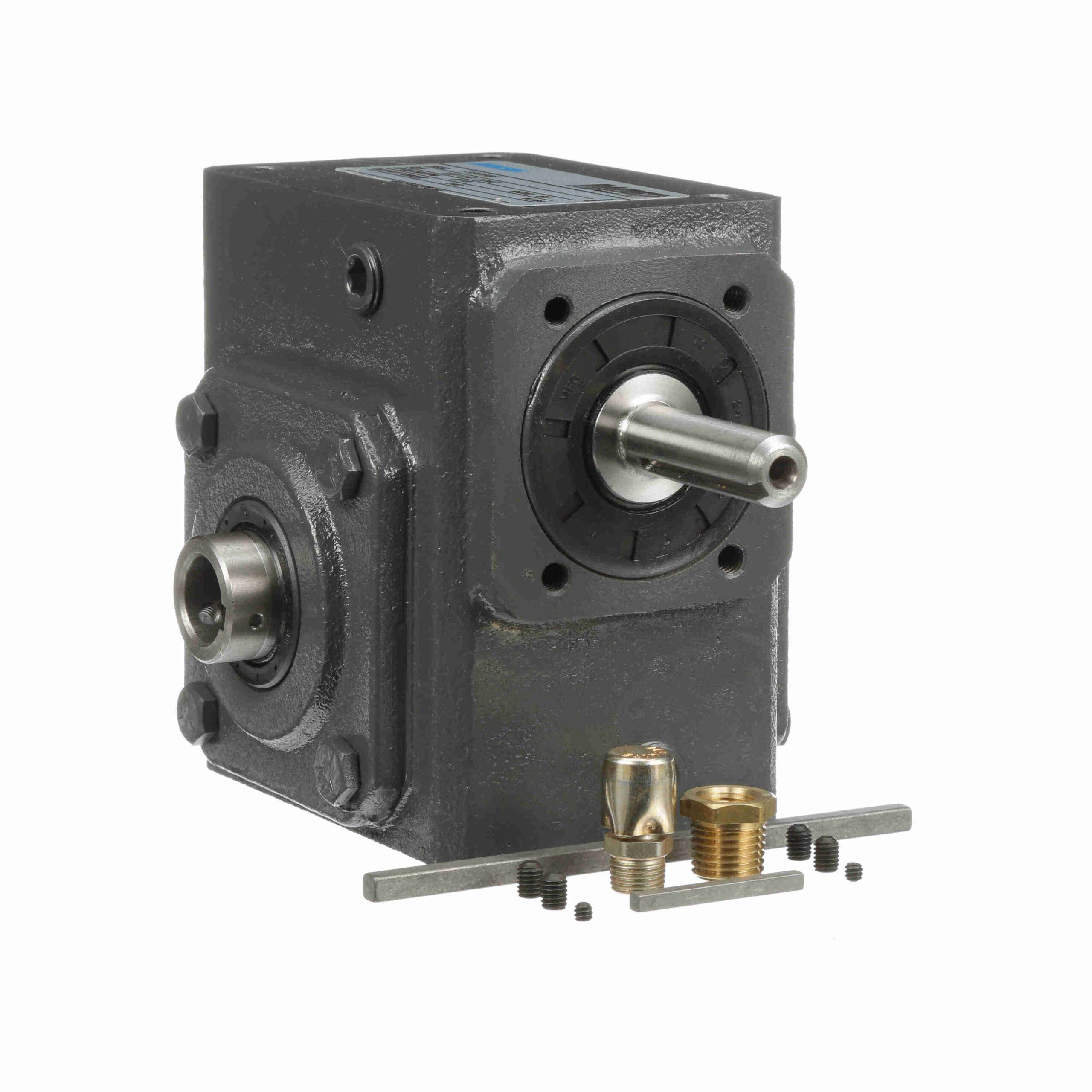

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 133UH50 010
$1,211.32
Out of stock
Out of stock
| Thrust Rating - output shaft: | 1144 | Reducer Style: | Standard |
|---|---|---|---|
| Input Speed: | 1750 | Key Length: | 1 |
| Efficiency: | 80 | Key Sq.: | 0.125 |
| Ratio: | 50:1 | Ratio Range: | 50:1 |
| Input Diameter (in): | 0.5 in | Gear Type: | Worm |
| Input HP @ 1750 RPM: | 0.285 | Product Type: | Worm Speed Reducer |
| Series Code: | Raider | Input Style: | Shaft |
| Service Factor: | 1 | No. of Gear Reductions: | Single |
| Mounting Style: | Shaft Mt | Output Diameter (in): | 0.625 in |
| Center Distance (in): | 1.33 | Output Shaft Direction: | L or R |
| Overhung Load Rating (Output Shaft(lb)): | 700 lb | Output Shaft: | Hollow Bore |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 327 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62288E+11 | Weight: | 12.55 LB |
| Packaged Length: | 10.3 Inches | Packaged Width: | 11 Inches |
| Packaged Height: | 11.4 Inches |
