- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
133UH20 010

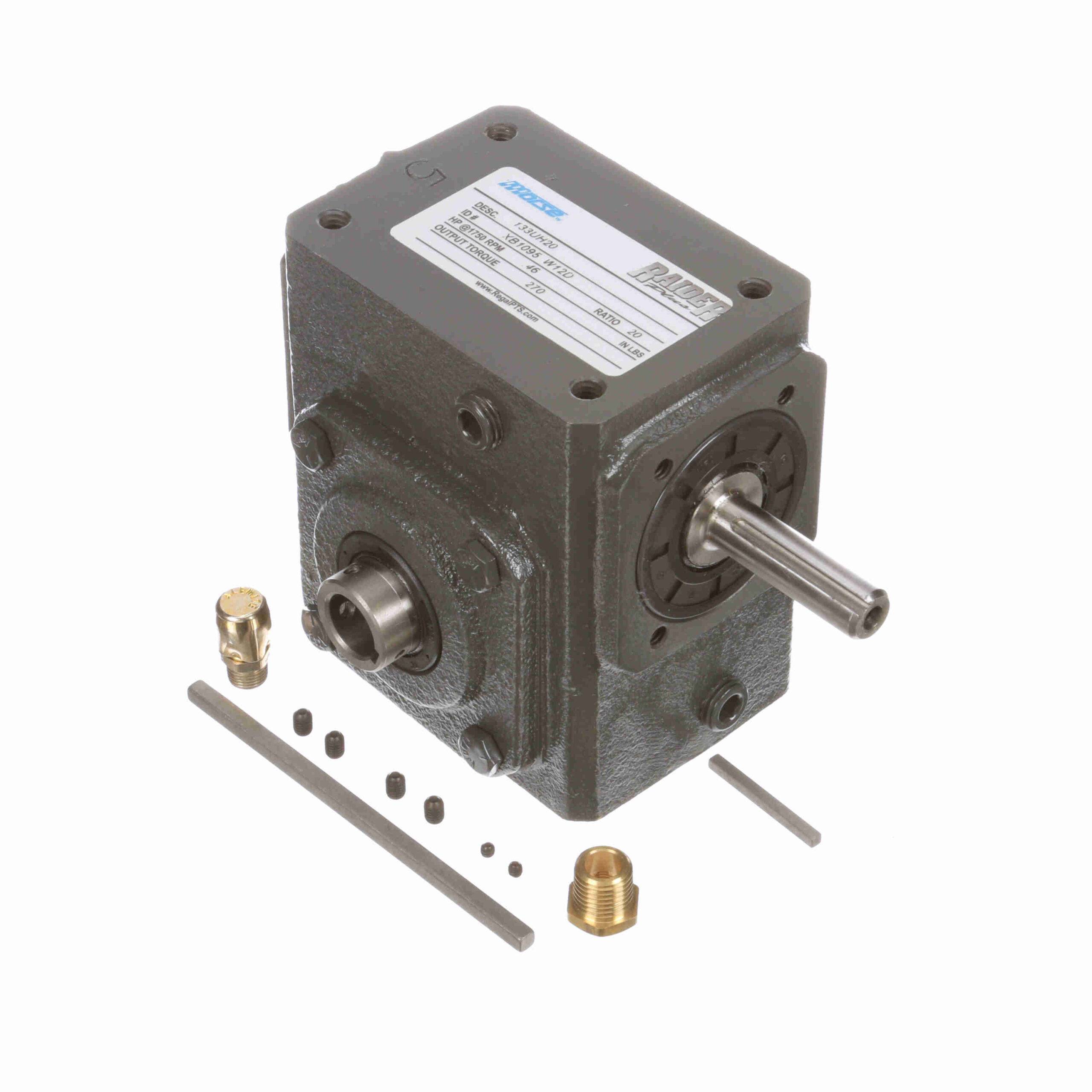

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 133UH20 010
Out of stock
| Efficiency: | 80 | Reducer Style: | Standard |
|---|---|---|---|
| Thrust Rating - output shaft: | 1144 | Key Length: | 1 |
| Key Sq.: | 0.125 | Input Speed: | 1750 |
| Ratio: | 20:1 | Input HP @ 1750 RPM: | 0.551 |
| Output Diameter (in): | 0.625 in | Series Code: | Raider |
| Product Type: | Worm Speed Reducer | Input Style: | Shaft |
| No. of Gear Reductions: | Single | Gear Type: | Worm |
| Service Factor: | 1 | Center Distance (in): | 1.33 |
| Ratio Range: | 20:1 | Mounting Style: | Shaft Mt |
| Input Diameter (in): | 0.5 in | Output Shaft Direction: | L or R |
| Output Shaft: | Hollow Bore | Output Torque Rating (in-lb): | 320 in-lbs @1750 input RPM in/lbs |
| Overhung Load Rating (Output Shaft(lb)): | 700 lb | Housing Material: | Cast Iron |
| UPC: | 6, 62288E+11 | Weight: | 12.52 LB |
| Packaged Length: | 9.3 Inches | Packaged Width: | 9.2 Inches |
| Packaged Height: | 8.9 Inches |
