- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
133Q56R20

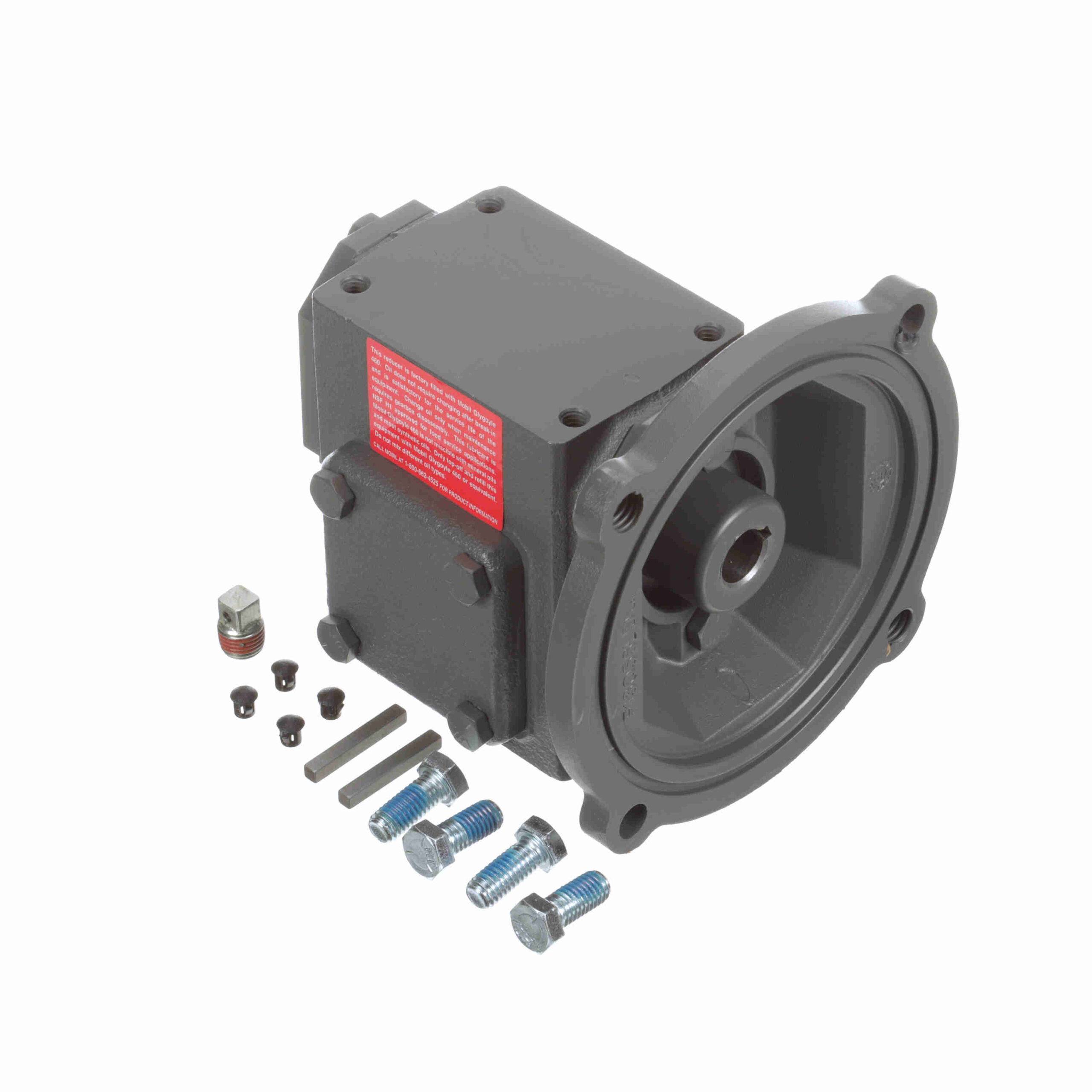

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 133Q56R20
$759.01
Out of stock
Out of stock
| Input Keyway (C Face): | 3/16 X 3/32 | Input Speed: | 1750 |
|---|---|---|---|
| Reducer Style: | Standard | Efficiency: | 80 |
| Thrust Rating - output shaft: | 1241 | Motor Frame Size: | 56C |
| Shaft Seal Material: | Nitrile | Ratio: | 20:1 |
| Input Bore (C Face): | 0.625 | Gear Type: | Worm |
| Input RPM: | 1, 750 | Output Shaft Assembly Code: | R |
| Reducer: | Worm - Right Angle | Product Type: | Worm Speed Reducer |
| Center Distance (in): | 1.33 | Assembly: | Q-R |
| Model Code: | 133Q | Frame Size: | 56C |
| Series Code: | Raider | Input Diameter (in): | 0.625 in |
| Input Style: | C-Face Quill | Service Factor: | 1 |
| No. of Gear Reductions: | Single | Mounting Style: | No Base |
| Input HP @ 1750 RPM: | 0.46 | Output RPM: | 87.5 |
| Ratio Range: | 20:01 | Output Diameter (in): | 0.625 in |
| Output Key: | 3/16 X 1.31 | Output Shaft Direction: | Right |
| Output Shaft: | Solid Shaft | Housing Material: | Cast Iron |
| Overhung Load Rating (Output Shaft(lb)): | 458 lb | Output Torque Rating (in-lb): | 320 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62288E+11 | Weight: | 17.00 LB |
