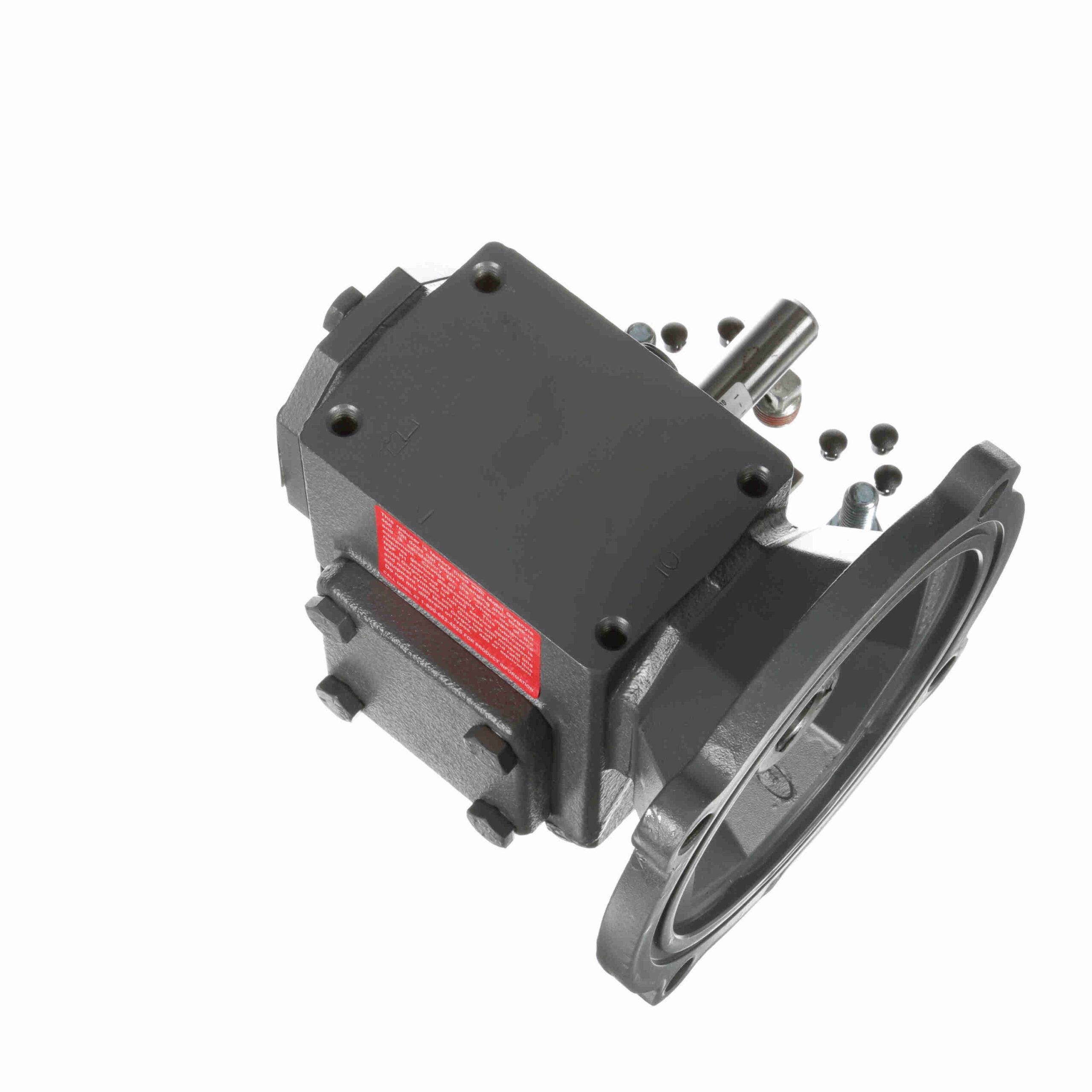

133Q56R10

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Efficiency:	80	Ratio:	10:1
Thrust Rating - output shaft:	1001	Input Bore (C Face):	0.625
Motor Frame Size:	56C	Shaft Seal Material:	Nitrile
Input Speed:	1750	Input Keyway (C Face):	3/16 X 3/32
Reducer Style:	Standard	Service Factor:	1
Product Type:	Worm Speed Reducer	Input Diameter (in):	0.625 in
Series Code:	Raider	Ratio Range:	10:1
Output Key:	3/16 X 1.31	Input Style:	C-Face Quill
Mounting Style:	No Base	Input RPM:	1, 750
No. of Gear Reductions:	Single	Center Distance (in):	1.33
Assembly:	Q-R	Reducer:	Worm - Right Angle
Input HP @ 1750 RPM:	0.77	Output Diameter (in):	0.625 in
Gear Type:	Worm	Output RPM:	175
Frame Size:	56C	Model Code:	133Q
Output Shaft Assembly Code:	R	Output Shaft Direction:	Right
Output Shaft:	Solid Shaft	Housing Material:	Cast Iron
Output Torque Rating (in-lb):	263 in-lbs @1750 input RPM in/lbs	Overhung Load Rating (Output Shaft(lb)):	458 lb
UPC:	6, 62288E+11	Weight:	17.00 LB
