- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
175Q56H20 100

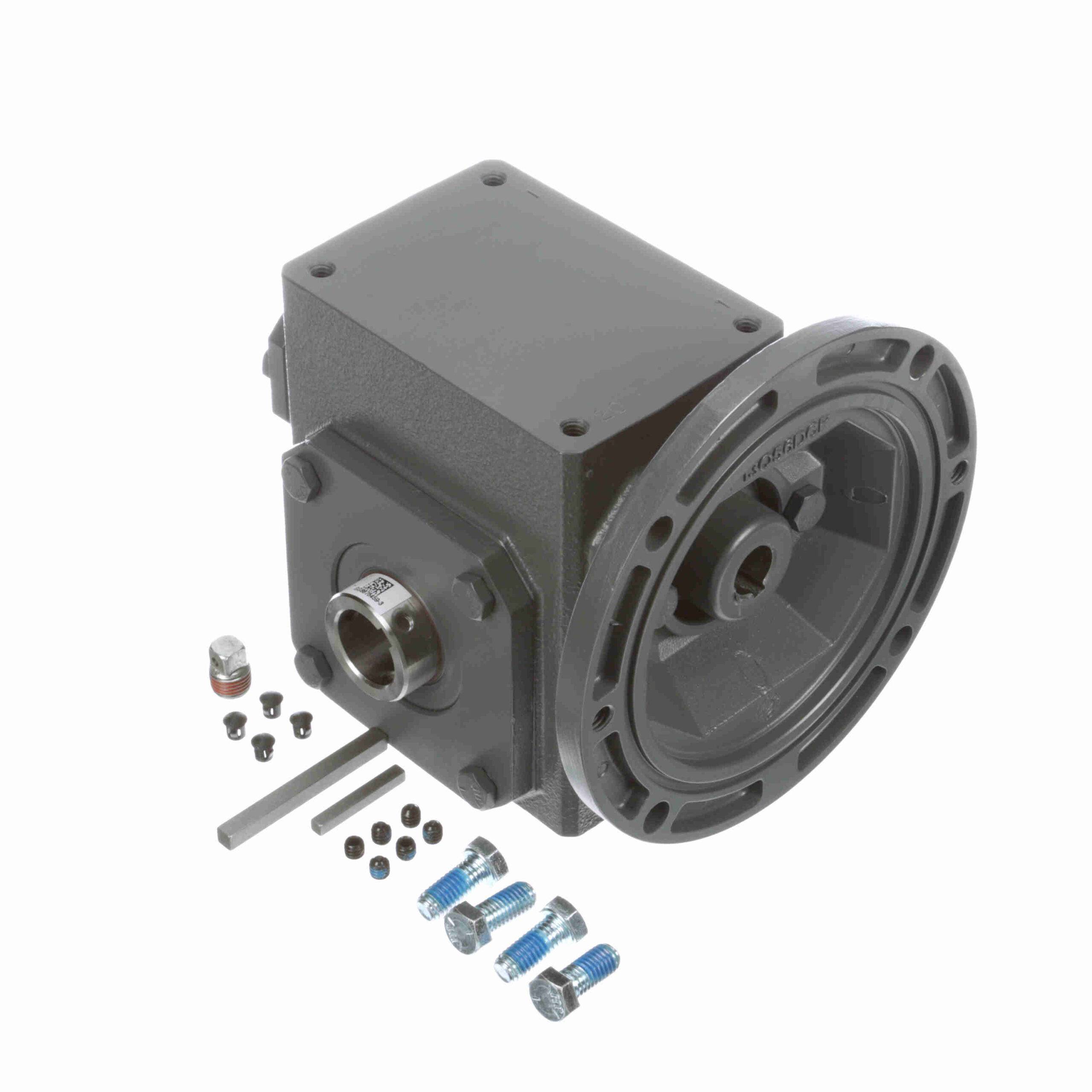

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 175Q56H20 100
$1,238.13
Out of stock
Out of stock
| Thrust Rating - output shaft: | 1144 | Input Bore (C Face): | 0.625 |
|---|---|---|---|
| Efficiency: | 80 | Reducer Style: | Standard |
| Input Speed: | 1750 | Motor Frame Size: | 56C |
| Input Keyway (C Face): | 3/16x3/32 | Ratio: | 20:1 |
| Output Diameter (in): | 1.000 in | Mounting Style: | Shaft Mt |
| No. of Gear Reductions: | Single | Frame Size: | 56C |
| Service Factor: | 1 | Product Type: | Worm Speed Reducer |
| Gear Type: | Worm | Ratio Range: | 20:1 |
| Center Distance (in): | 1.75 | Series Code: | Raider |
| Input HP @ 1750 RPM: | 1.05 | Input Diameter (in): | 0.625 in |
| Input Style: | C-Face Quill | Output Shaft Direction: | L or R |
| Output Torque Rating (in-lb): | 630 in-lbs @1750 input RPM in/lbs | Overhung Load Rating (Output Shaft(lb)): | 1, 200 lb |
| Output Shaft: | Hollow Bore | Housing Material: | Cast Iron |
| UPC: | 6, 62288E+11 | Weight: | 25.00 LB |
| Packaged Length: | 11 Inches | Packaged Width: | 10.4 Inches |
| Packaged Height: | 11.6 Inches |
