- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Morse torque limiter is a spring loaded device. The load on the friction pads is adjusted so that process torque is transmitted. An overload causes the unit to slip.
- Morse torque limiters are simple design, economical, easy adjustment, compact and dependable
13-8 TL 1-1/2 MPB

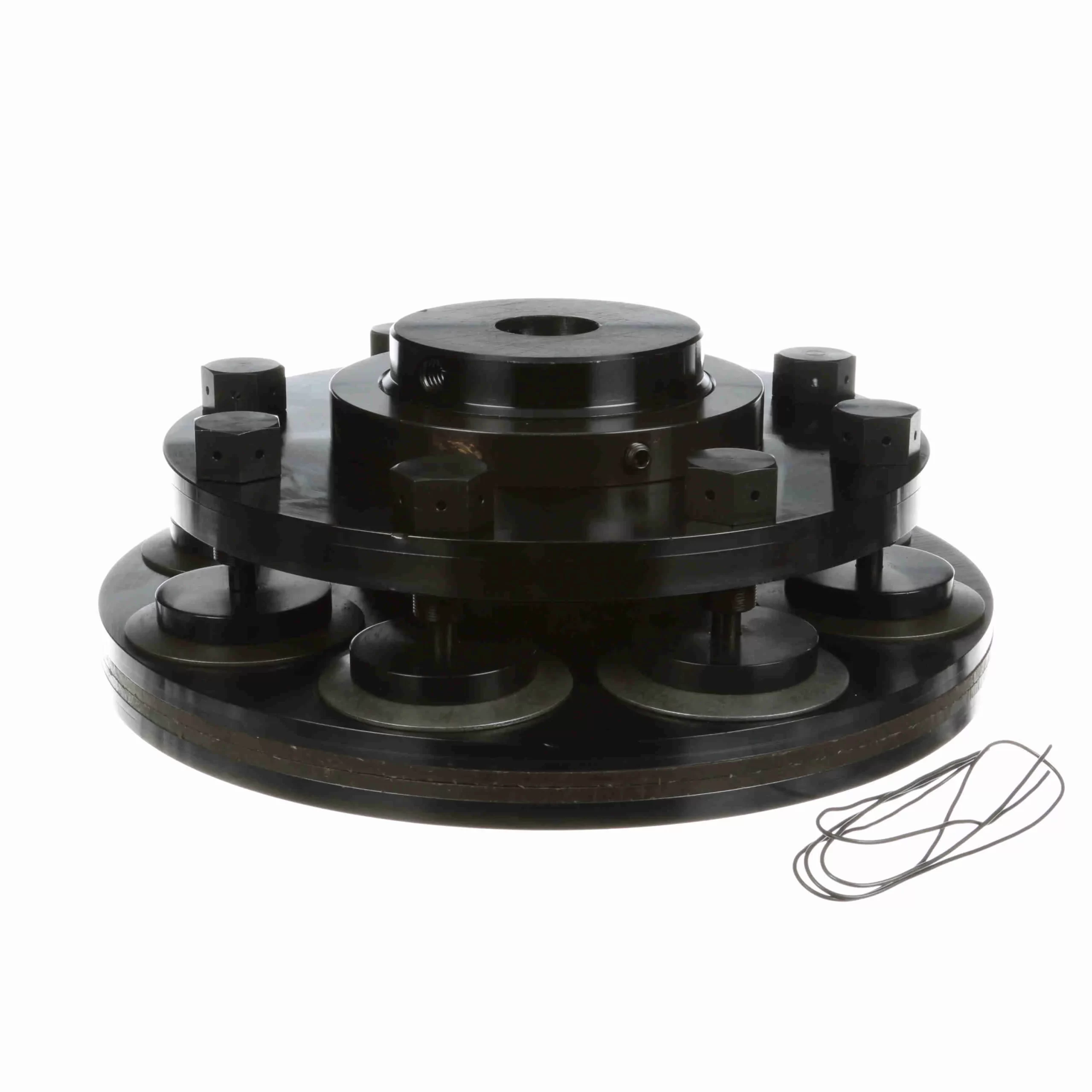

Morse Torque Limiter Model – 13 – 13-8 TL 1-1/2 MPB
$6,910.13
Out of stock
Out of stock
| Maximum Bore w/ Key, Setscrew: | 3.25 | Trip Torque [Min]: | 500 |
|---|---|---|---|
| Backlash: | Zero | Bore Shape: | Straight Bore |
| Recovery Style: | Automatic | Torque [Min] (N-m): | 680 |
| Disconnect Method: | Friction Pad | Series / Model: | 13 |
| Sensor Plate: | No | Outside Diameter (mm): | 330.2 mm |
| Unit Accuracy: | 0.25 | Reset Type: | Automatic |
| Detection Method: | Friction Pad | Bore Size (in): | 1.5 in |
| Type: | Torque Overload Devices | Outside Diameter (in): | 13 in |
| Sprocket Bore Diameter: | 6.3775/6.3800 | Total Length (in): | 5.75 in |
| Total Length (mm): | 146.05 mm | Max RPM: | 800 |
| Torque Capacity [Min] (lb-ft): | 41.6666666666667 | Product Type: | Torque Limiter |
| Torque [Max] (N-m): | 1, 972 | Torque Capacity [Max] (lb-ft): | 120.833333333333 |
| Torque Capacity [Max] (in-lb): | 1, 450 | Bore (Max) (in): | 3.25 in |
| Bore (Min) (in): | 1.5 in | Torque Capacity [Min] (in-lb): | 500 |
| Bore Type: | Minimum Plain Bore | Minimum Sprocket Teeth: | #80 (45 Teeth) |
| #140 (30 Teeth) | #160 (24 Teeth) | UPC: | 662288570448 |
| Weight: | 88.00 LB | Packaged Length: | 13.00 Inches |
| Packaged Width: | 3.72 Inches | Packaged Height: | 13.00 Inches |
| HTC: | 8483.60.8000 | Country of Origin: | United States of America |
