- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
120R40

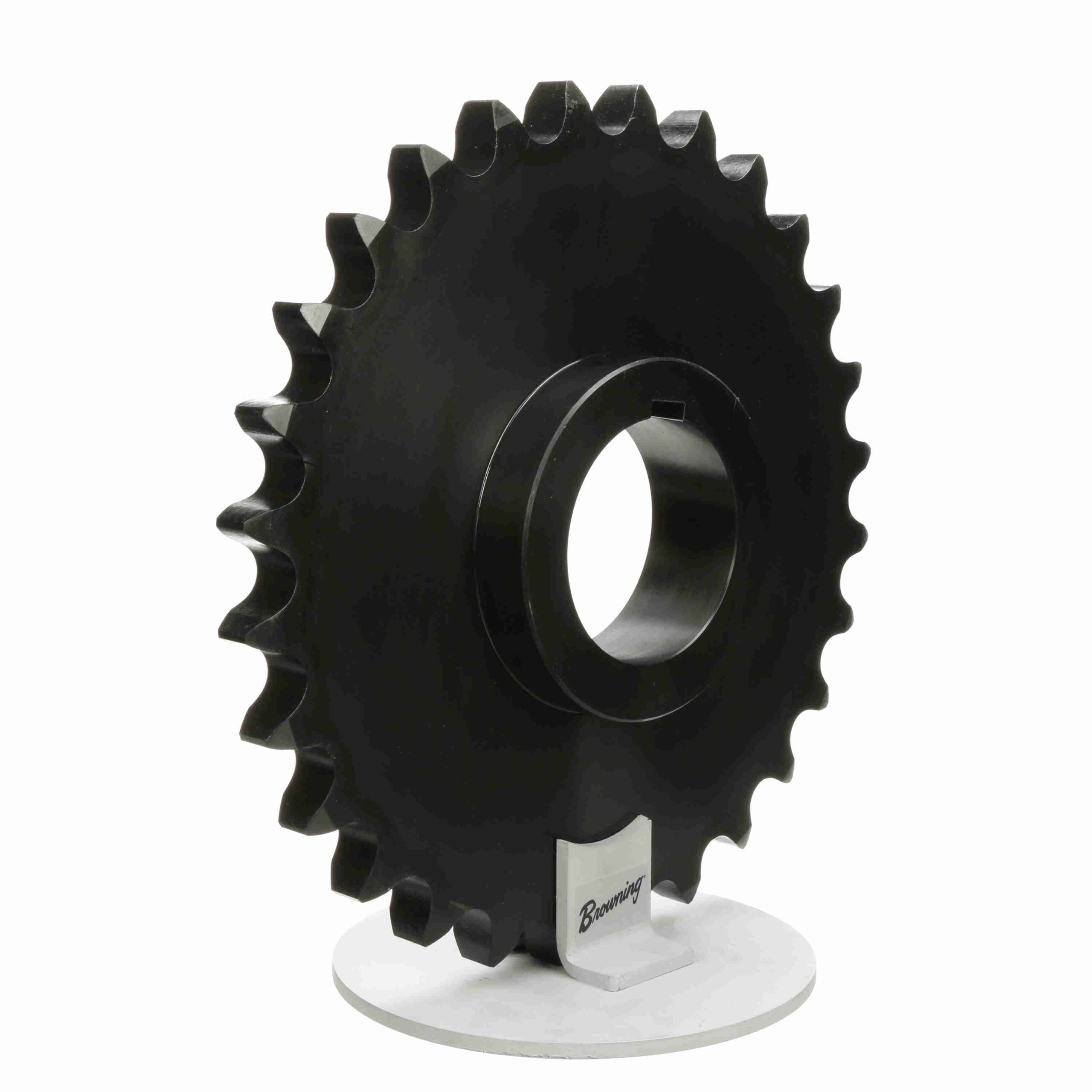

Browning Steel Bushed Bore Roller Chain Sprocket – 120R40
$1,851.84
Out of stock
Out of stock
| Bushing Used: | Split Taper | Bore (Max) (in): | 3.625 in |
|---|---|---|---|
| Chain Pitch (in): | 1.5 in | Bore (Min) (in): | 1.375 in |
| Number of teeth: | 40 | Material: | Steel |
| Chain Used: | No. 120, 1-1/2 in. Pitch ANSI Chain | Pitch Diameter (in): | 19.118 in |
| Product Type: | Bushed Roller Chain Sprocket | Overall Length (in): | 5.219375 in |
| Outside Diameter (in): | 19.975 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Maximum Bore (in): | 3.625 | Minimum Bore (in): | 1.375 |
| Number of Hubs: | 2 | Pitch Type: | Single |
| Width Across Tooth Sets: | 0.924 | UPC: | 662289167807 |
| Weight: | 94.00 LB | Packaged Length: | 19.96 Inches |
| Packaged Width: | 19.96 Inches | Packaged Height: | 5.16 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
