- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
120R36

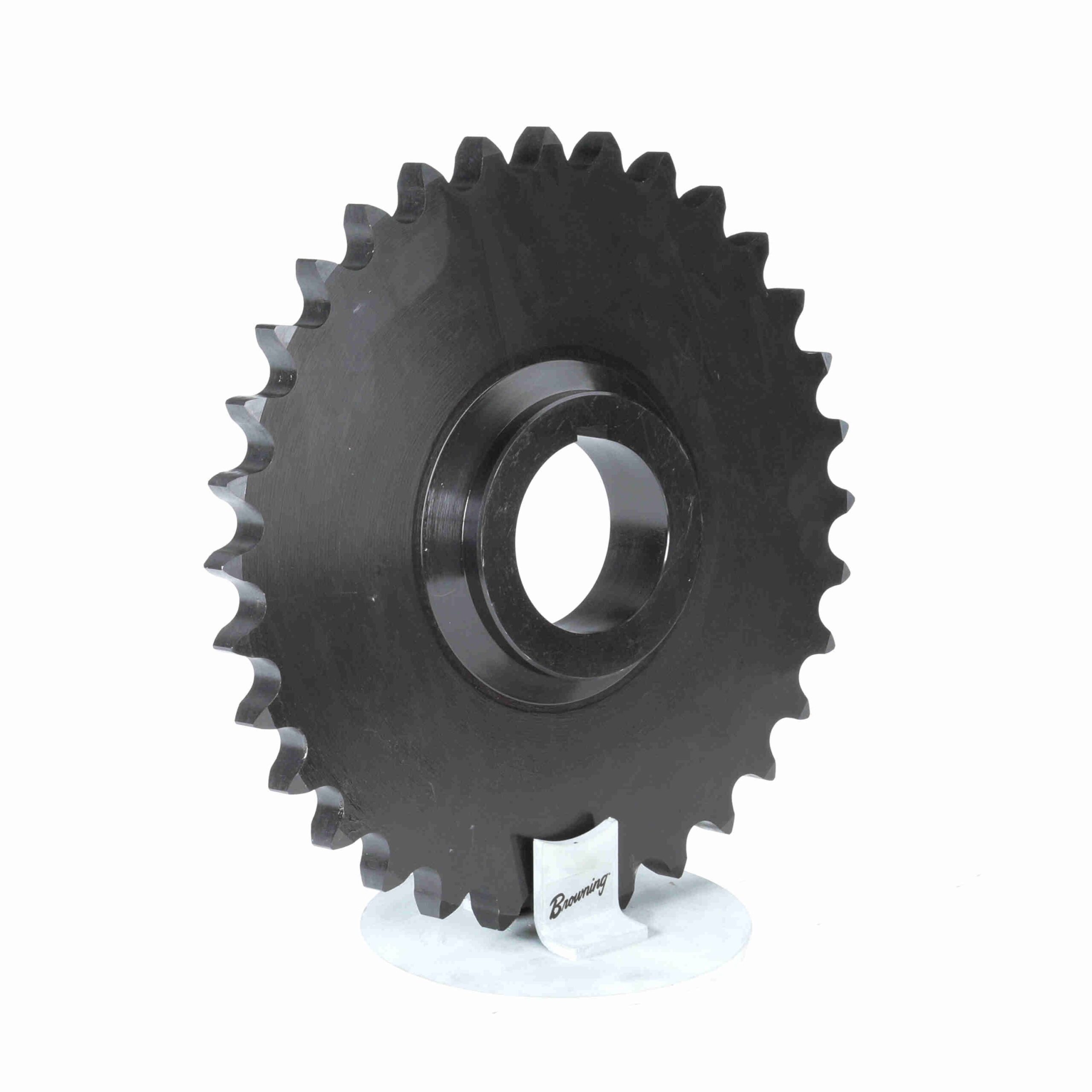

Browning Steel Bushed Bore Roller Chain Sprocket – 120R36
$1,643.38
Out of stock
Out of stock
| Bore (Min) (in): | 1.375 in | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Bore (Max) (in): | 3.625 in | Material: | Steel |
| Bushing Used: | Split Taper | Chain Used: | No. 120, 1-1/2 in. Pitch ANSI Chain |
| Pitch Diameter (in): | 17.211 in | Number of teeth: | 36 |
| Chain Pitch (in): | 1.5 in | Overall Length (in): | 5.219375 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 18.065 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Minimum Bore (in): | 1.375 | Maximum Bore (in): | 3.625 |
| Number of Hubs: | 2 | Pitch Type: | Single |
| Width Across Tooth Sets: | 0.924 | UPC: | 662289237876 |
| Weight: | 80.20 LB | Packaged Length: | 18.05 Inches |
| Packaged Width: | 18.05 Inches | Packaged Height: | 5.16 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
