- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Standard Seals: Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
- Options and Accessories: Complete range of motor mounts, belt guards, backstops, trough ends and screw conveyor sealing options.
115DSP300

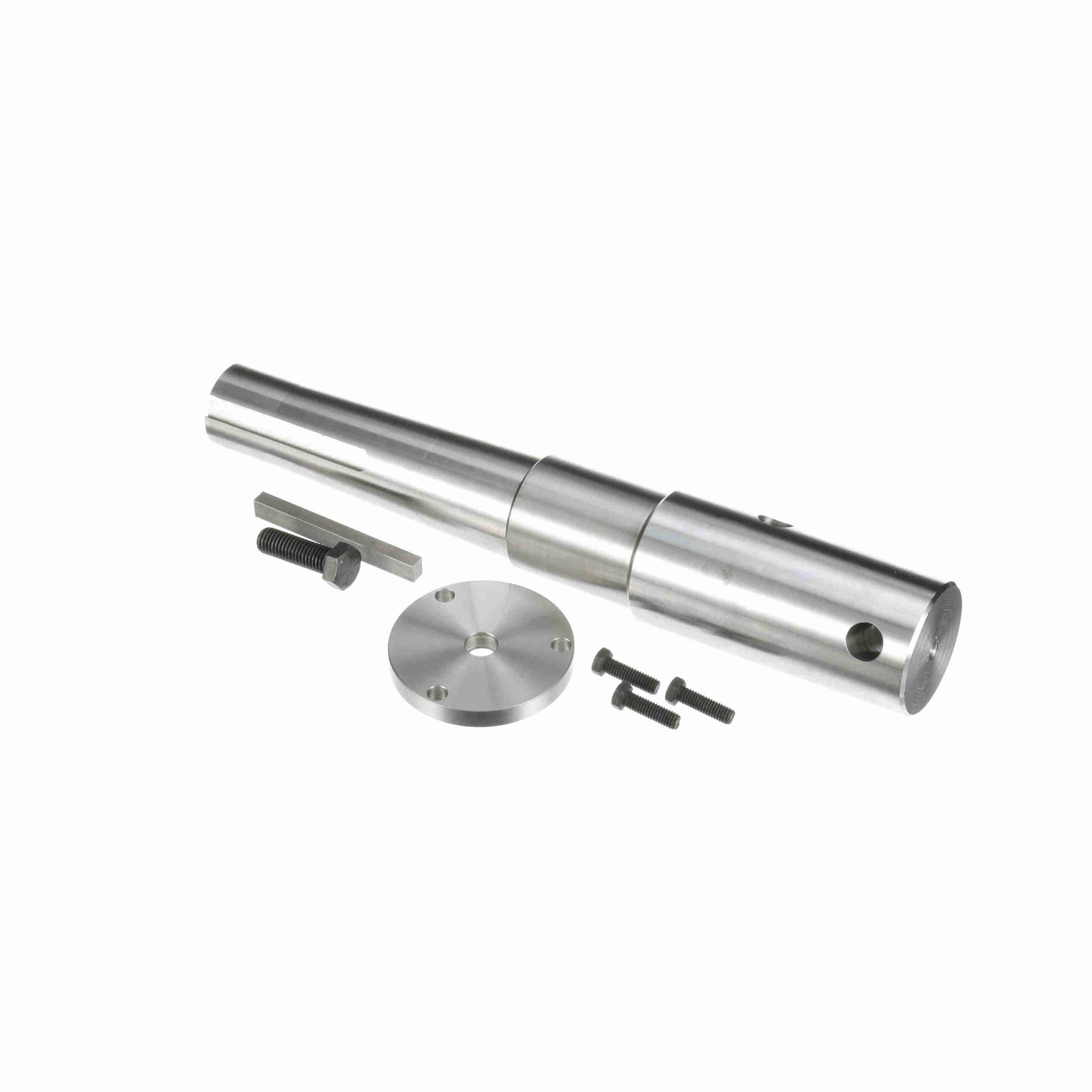

Browning Torque Taper Plus Shaft Mount Reducers Screw Conveyor Accessory – 115DSP300
$1,303.70
Out of stock
Out of stock
| Product Type: | TorqTaper Plus (SMTP) | Screw Diameter: | 12-20 |
|---|---|---|---|
| Key: | .250 x .250 x 2.75 | Reducer Size: | 115 |
| Used Ratio: | 5:1, 9:1, 15:1, 25:1 or 35:1 | Drive Shaft Diameter: | 3 in |
| Hole Diameter (in): | 0.7813 in | Series: | 115DSP |
| Distance between Shaft holes (in): | 3 in | Accessory Type: | Screw Conveyor Accessories |
| Housing Material: | Steel | Shaft Projecting Length (in): | 6.88 in |
| UPC: | 662460492223 | Weight: | 28.63 LB |
| Packaged Length: | 20.9 Inches | Packaged Width: | 6.6 Inches |
| Packaged Height: | 6.5 Inches | HTC: | 8483.90.5090 |
| Country of Origin: | United States of America |
