- Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on – easy off mounting, with stabilizer ring.
- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
- Options and Accessories: Complete range of motor mounts, belt guards, backstops, and screw conveyor drive options.
107SMTP25

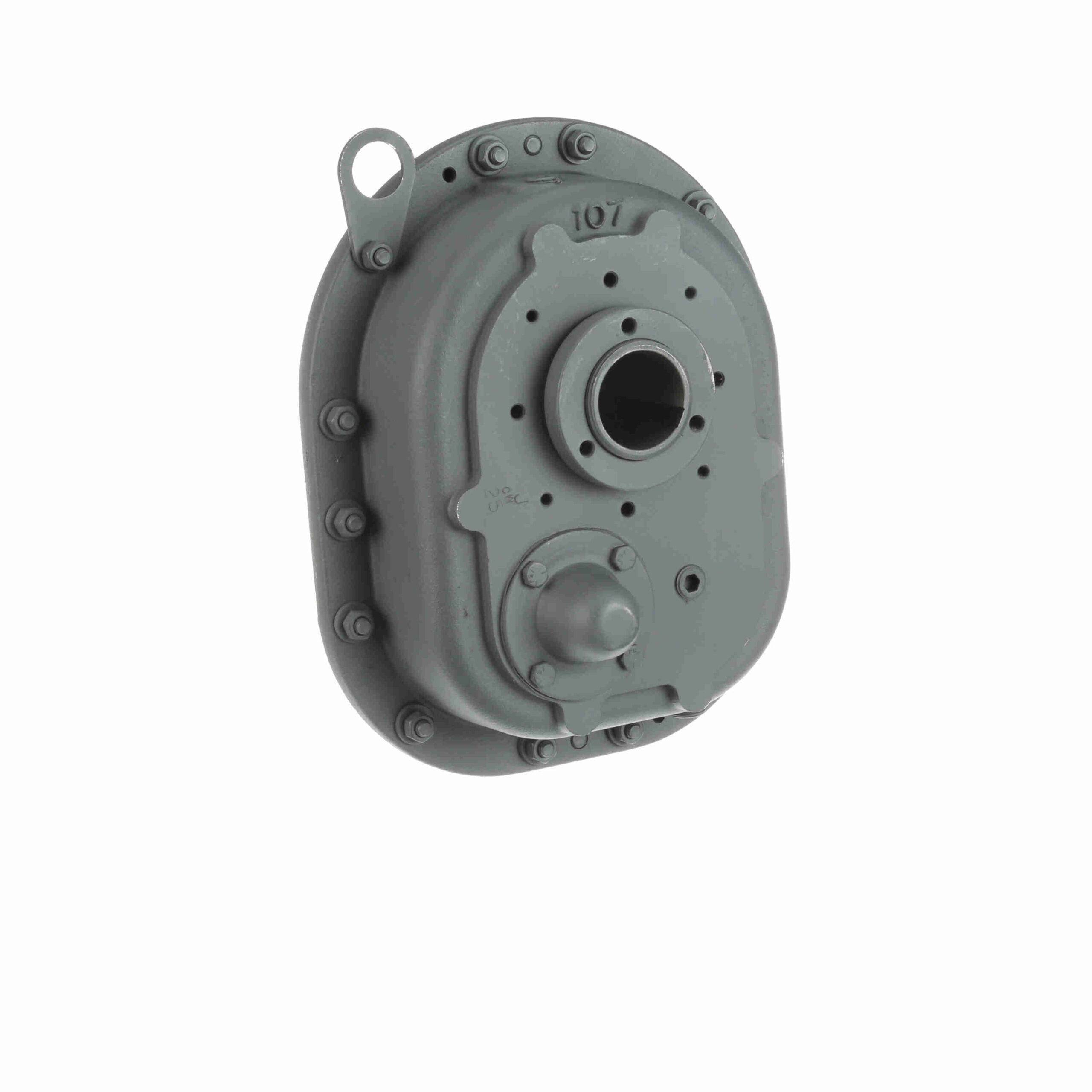

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 107SMTP25
$3,899.18
Out of stock
Out of stock
| Bolt Size (in): | 0.375 in | Input Speed: | 1750 |
|---|---|---|---|
| Ratio: | 25:1 | Efficiency: | 80 |
| Product Type: | TorqTaper Plus (SMTP) | Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP |
| Output Speed: | 70 | Housing Height (in): | 12.07 in |
| Housing Width (in): | 9.76 in | Housing Length (in): | 7.89 in |
| Standards met: | AGMA | Maximum Output Size (in): | 1.4375 in |
| Ratio Range: | 25:1 | Maximum Output Bore: | 1.4375 |
| Input Style: | Shaft | Gear Type: | Helical |
| Mounting Style: | Shaft mount | Reducer Size: | 107 |
| Drive Type: | Torque Arm | Maximum Output RPM: | 80 |
| Output Bore: | Tapered Bushing | Reduction: | Double |
| Input Shaft Diameter: | 0.75 | Output Shaft: | Tapered Bore |
| Input Shaft Keyseat (in): | .188 x .188 x 2.88 in | Housing Material: | Cast Iron |
| Output Torque Rating (in-lb): | 900.34 in-Lbs @1750 input rpm, 1 HP in/lbs | UPC: | 662288909972 |
| Weight: | 56.85 LB | Packaged Length: | 18.5 Inches |
| Packaged Width: | 12.9 Inches | Packaged Height: | 13.2 Inches |
| HTC: | 8483.40.1000 | Country of Origin: | United States of America |
