- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
100R36

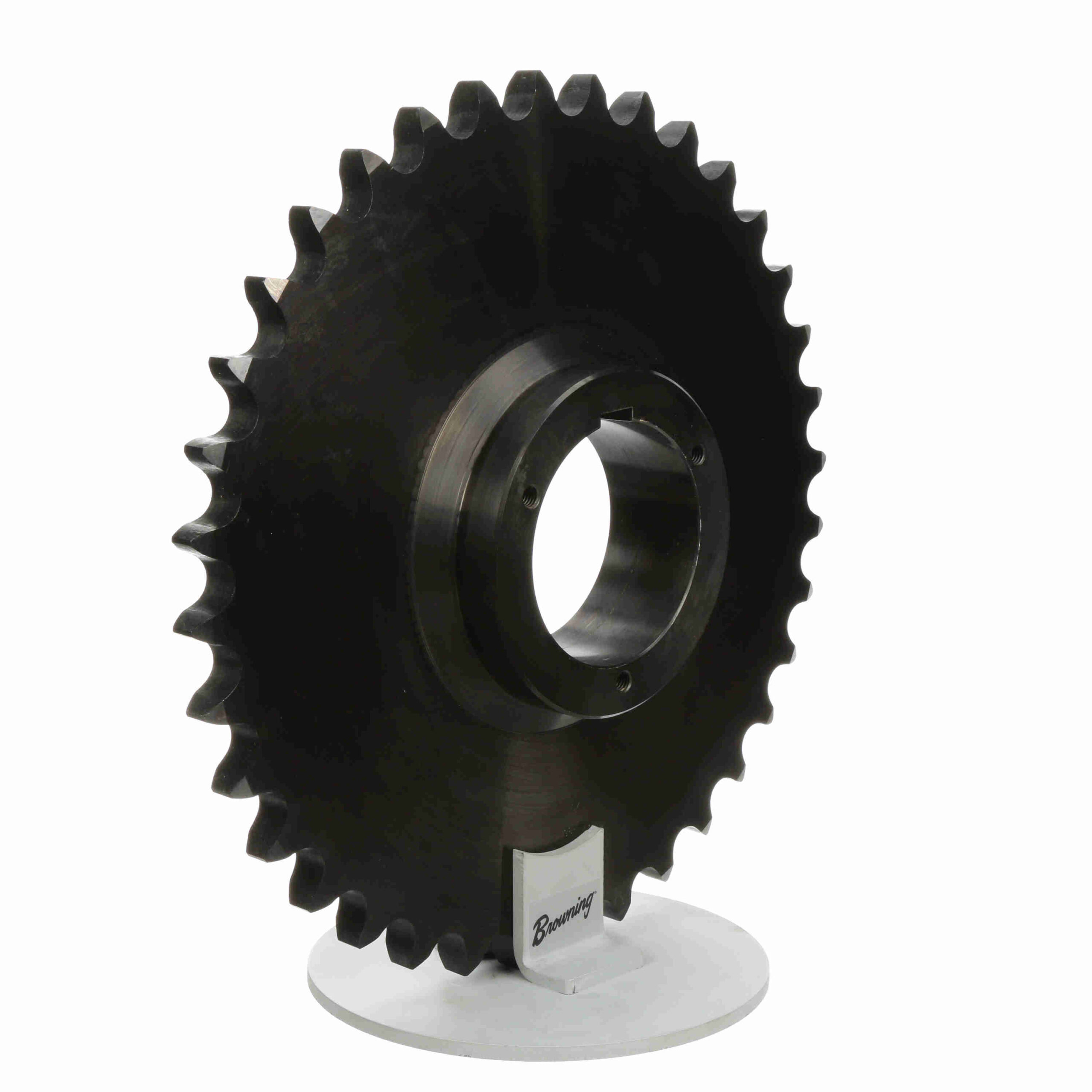

Browning Steel Bushed Bore Roller Chain Sprocket – 100R36
$994.86
Out of stock
Out of stock
| Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain | Number of teeth: | 36 |
|---|---|---|---|
| Pitch Diameter (in): | 14.342 in | Bushing Used: | Split Taper |
| Material: | Steel | Bore (Min) (in): | 1.125 in |
| Chain Pitch (in): | 1.25 in | Product Type: | Bushed Roller Chain Sprocket |
| Bore (Max) (in): | 3.75 in | Bore Type: | Bushed Bore |
| Overall Length (in): | 3.219375 in | Outside Diameter (in): | 15.038 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Maximum Bore (in): | 3.75 | Minimum Bore (in): | 1.125 |
| Pitch Type: | Single | Width Across Tooth Sets: | 0.692 |
| Number of Hubs: | 1 | UPC: | 662289287468 |
| Weight: | 33.93 LB | Packaged Length: | 15.10 Inches |
| Packaged Width: | 15.20 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
