- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
100R 100FT

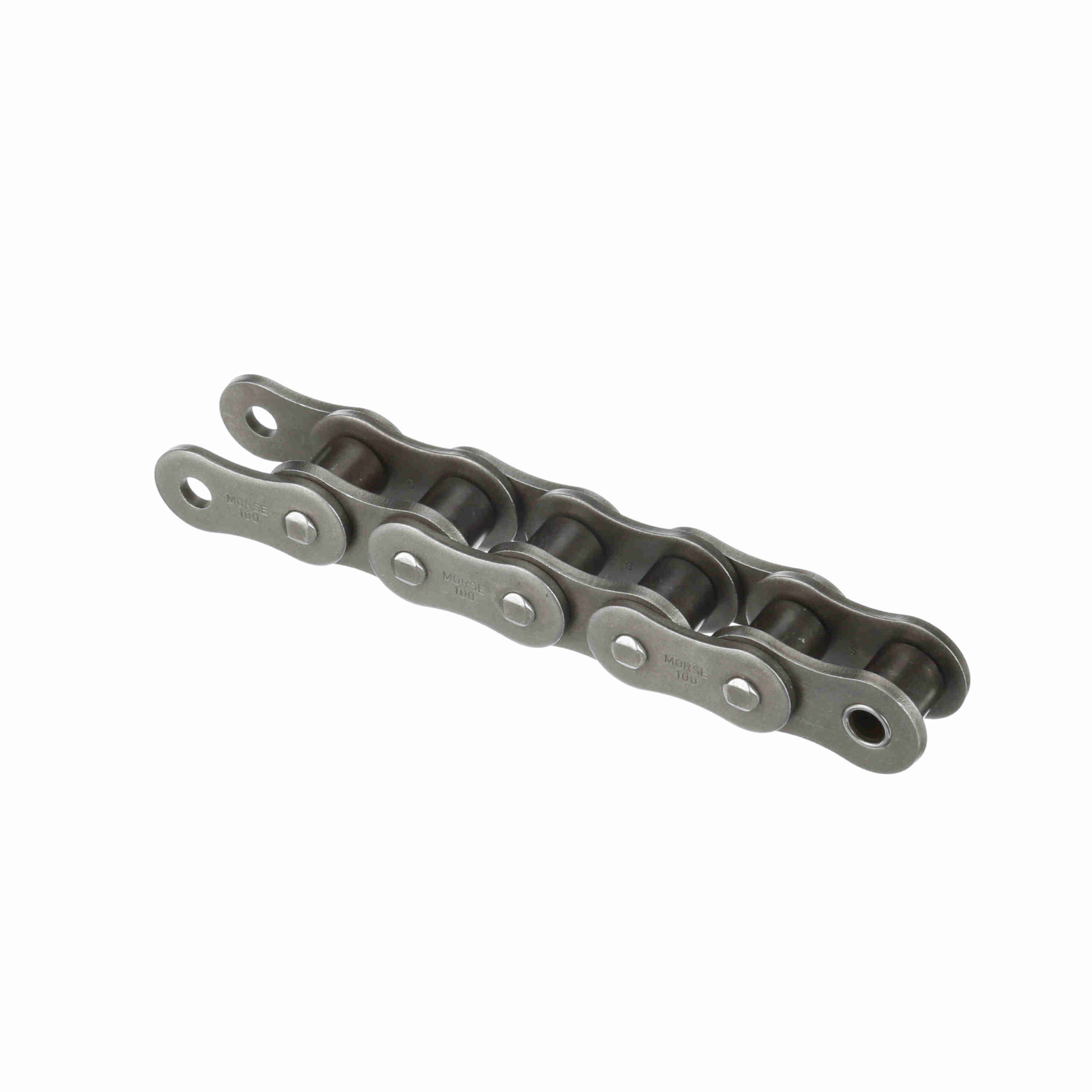

Morse Standard Riveted Roller Chain – 100R 100FT
$56.33
Out of stock
Out of stock
| Plate Thickness: | 0.156 | Roller Diameter (in): | 0.75 in |
|---|---|---|---|
| Chain Construction: | Riveted | Number of Strands/Width: | 1 |
| Side Plate Cfg.: | Hourglass | Centerline to Opposite cotter Pin Side: | 0.778 |
| Pin Diameter (in): | 0.375 in | Chain Size: | 100 |
| Inside Plate Height: | 1.166 | Width Over Pins/Total Width: | 1.555 |
| Average Ultimate Tensile Strength (psi): | 24, 000 | Number of Connecting Links Included: | 1 |
| Centerline to Outside of cotter Pin: | 0.923 | Roller Width (in): | 0.75 in |
| Material: | Steel | Chain Type: | Standard |
| Chain Pitch (in): | 1.25 in | Product Type: | Roller Chain |
| Coating: | Uncoated | Total Length: | 100 FT ft |
| Measurement System: | Imperial | Standard Met: | ANSI B29.1 |
| Pin Length - Riveted: | 1.555 | UPC: | 662288866336 |
| Weight: | 2.70 LB | HTC: | 7315.11.0060 |
| Country of Origin: | Taiwan, Republic of China |
