- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities
100HR 100FT

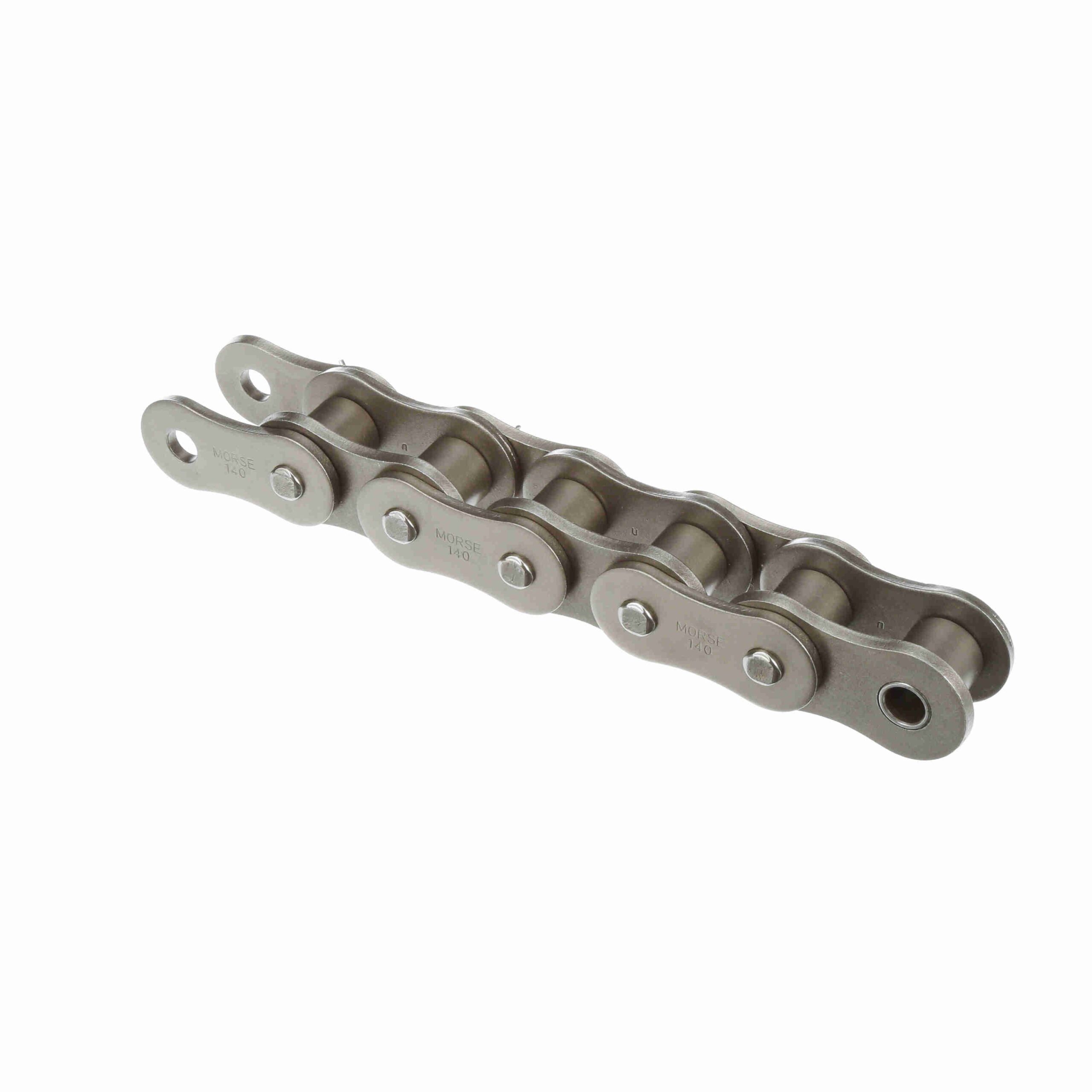

Morse Heavy Riveted Roller Chain – 100HR 100FT
$49.57
Out of stock
Out of stock
| Side Plate Cfg.: | Hourglass | Pin Diameter (in): | 0.375 in |
|---|---|---|---|
| Width Over Pins/Total Width: | 1.684 | Plate Thickness: | 0.187 |
| Inside Plate Height: | 1.166 | Chain Construction: | Riveted |
| Number of Connecting Links Included: | 1 | Average Ultimate Tensile Strength (psi): | 24, 000 |
| Material: | Steel | Centerline to Outside of cotter Pin: | 0.986 |
| Roller Width (in): | 0.75 in | Centerline to Opposite cotter Pin Side: | 0.842 |
| Chain Size: | 100 | Roller Diameter (in): | 0.75 in |
| Number of Strands/Width: | 1 | Product Type: | Roller Chain |
| Chain Pitch (in): | 1.25 in | Chain Type: | Heavy |
| Coating: | Uncoated | Total Length: | 100 FT ft |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 1.684 | UPC: | 662288773054 |
| Weight: | 2.89 LB | HTC: | 7315.11.0060 |
| Country of Origin: | Taiwan, Republic of China |
