- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
100 O/L

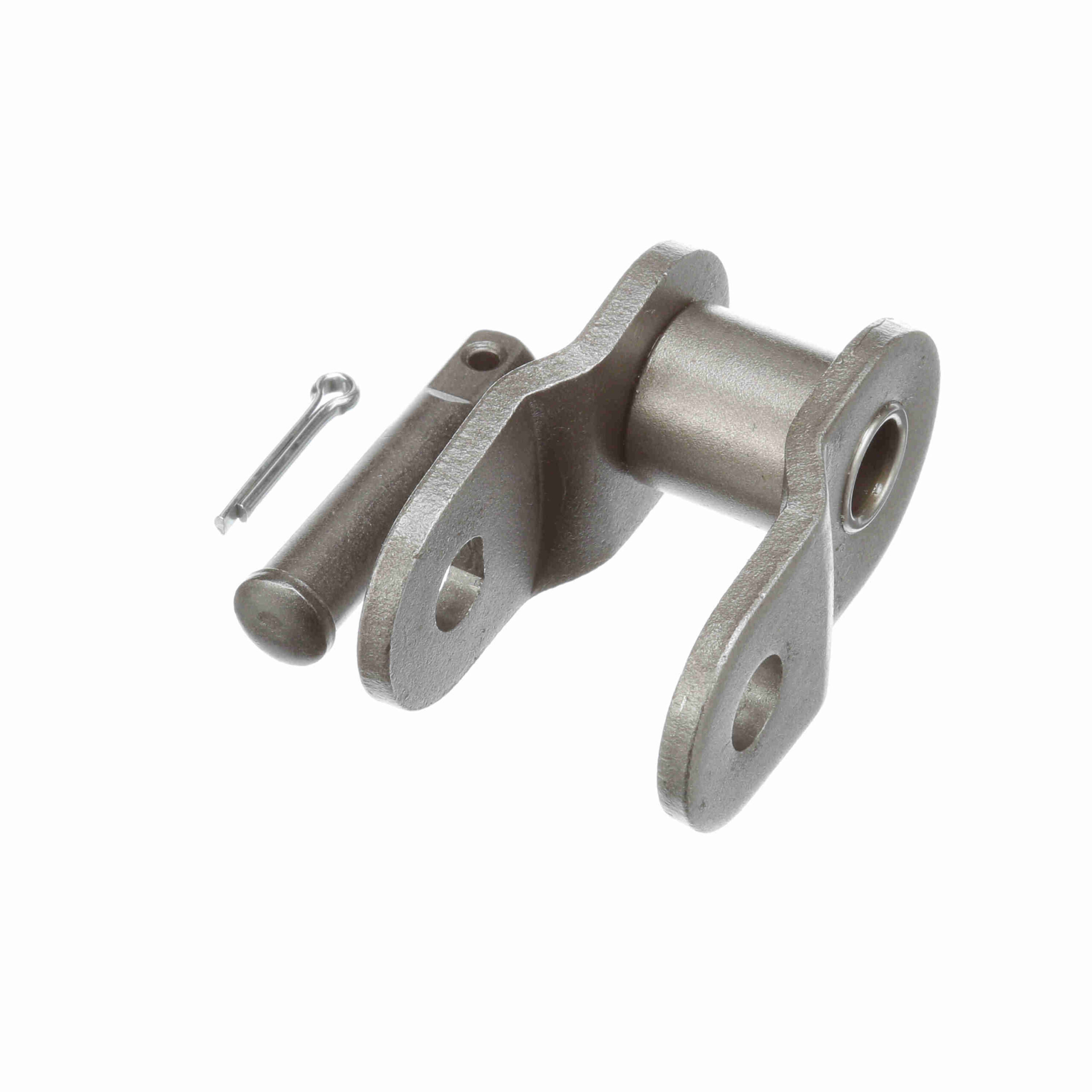

Morse Standard Roller Chain Offset Link – 100 O/L
$24.44
Out of stock
Out of stock
| Single Pitch Offset Link: | Cottered | Material: | Steel |
|---|---|---|---|
| Roller Diameter (in): | 0.75 in | Centerline to Opposite cotter Pin Side: | 0.778 |
| Average Ultimate Tensile Strength (psi): | 24, 000 | Plate Thickness: | 0.156 |
| Roller Width (in): | 0.75 in | Chain Size: | 100 |
| Width Over Pins/Total Width: | 1.555 | Side Plate Cfg.: | Hourglass |
| Number of Strands/Width: | 1 | Inside Plate Height: | 1.166 |
| Centerline to Outside of cotter Pin: | 0.923 | Pin Diameter (in): | 0.375 in |
| Total Length: | 10 FT ft | Chain Type: | Standard |
| Product Type: | Roller Chain | Chain Pitch (in): | 1.25 in |
| Link Type: | Offset Link | UPC: | 662288395577 |
| Weight: | 0.72 LB | Packaged Length: | 5.95 Inches |
| Packaged Width: | 3.75 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 7315.19.0000 | Country of Origin: | Taiwan, Republic of China |
