- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
100-2 C/L C/P S/F

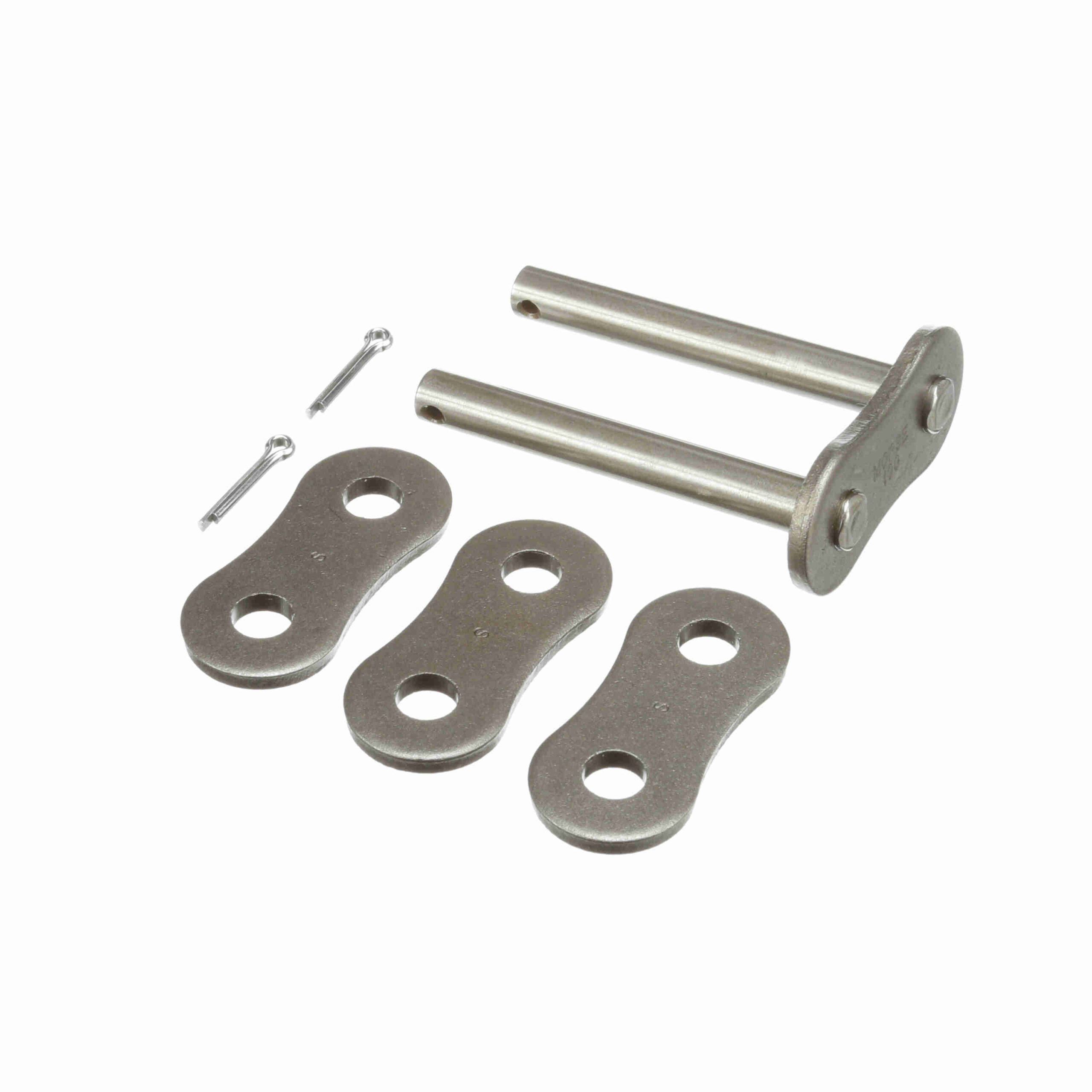

Morse Standard Roller Chain Cotter Pin Connecting Link – 100-2 C/L C/P S/F
Out of stock
| Plate Thickness: | 0.156 | Roller Width (in): | 0.75 in |
|---|---|---|---|
| Pin Diameter (in): | 0.375 in | Centerline to Outside of cotter Pin: | 1.625 |
| Centerline to Opposite cotter Pin Side: | 1.482 | Average Ultimate Tensile Strength (psi): | 48, 000 |
| Roller Diameter (in): | 0.75 in | Material: | Steel |
| Inside Plate Height: | 1.166 | Number of Strands/Width: | 2 |
| Width Over Pins/Total Width: | 2.963 | Number of Connecting Links Included: | 2 |
| Side Plate Cfg.: | Hourglass | Chain Size: | 100 |
| Connecting Link - Slip Fit: | Cotter | Chain Type: | Standard |
| Product Type: | Roller Chain | Chain Pitch (in): | 1.25 in |
| Chain Construction: | Cottered | Link Type: | Connecting Link |
| UPC: | 662288468462 | Weight: | 0.90 LB |
| Packaged Length: | 5.70 Inches | Packaged Width: | 3.75 Inches |
| Packaged Height: | 1.95 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
