- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS8P60

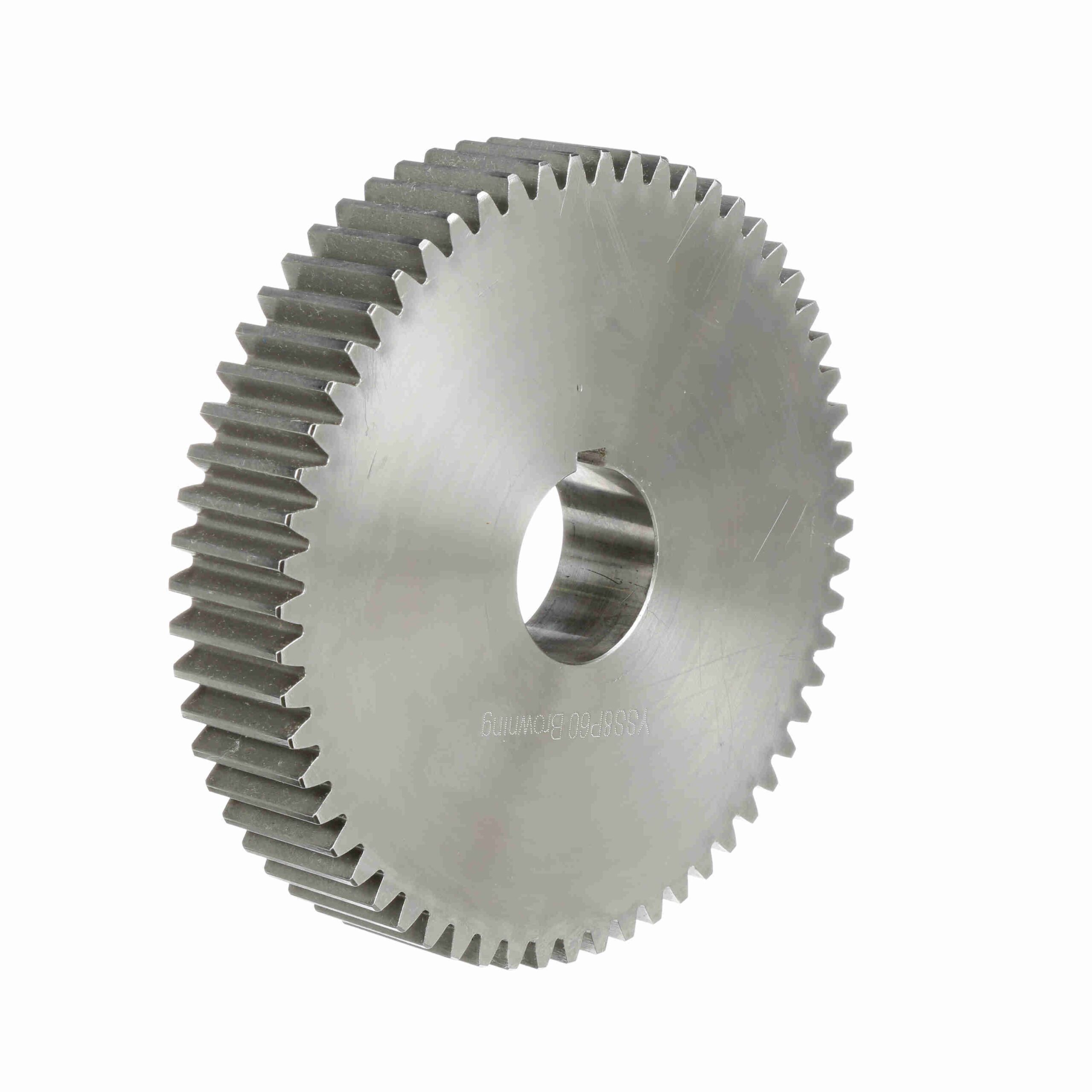

Browning Steel Bushed Bore Spur Gear – 20 PA 8 DP – YSS8P60
Out of stock
| Outside Diameter (in): | 7.75 in | Pitch Diameter (in): | 7.5 in |
|---|---|---|---|
| Material: | Steel | Pressure Angle: | 20 |
| Number of Teeth/Threads: | 60 | Face Width (in): | 1.5 in |
| Diametral Pitch: | 8 | Bore (Min) (in): | 0.5 in |
| Bore Type: | Bushed Bore | Bore (Max) (in): | 1.75 in |
| Length Through Bore (in): | 2.1875 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.5 in | Hub Type: | P1 |
| Overall Length (in): | 2.1875 in | Standard Met: | AGMA |
| UPC: | 662289247981 | Weight: | 15.87 LB |
| Packaged Length: | 8.40 Inches | Packaged Width: | 8.70 Inches |
| Packaged Height: | 2.80 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
