- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS8P44

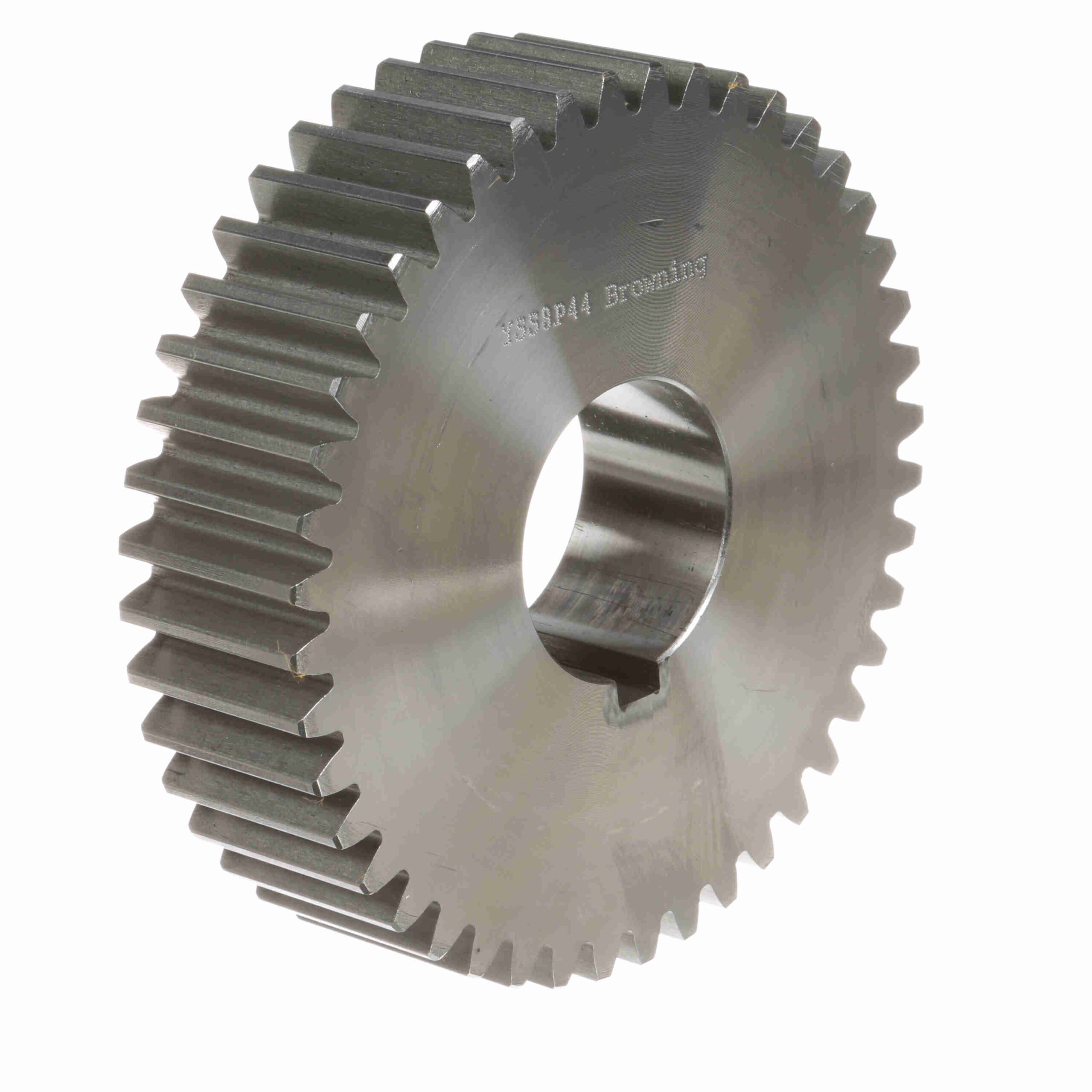

Browning Steel Bushed Bore Spur Gear – 20 PA 8 DP – YSS8P44
$643.00
Out of stock
Out of stock
| Pitch Diameter (in): | 5.5 in | Number of Teeth/Threads: | 44 |
|---|---|---|---|
| Outside Diameter (in): | 5.75 in | Face Width (in): | 1.5 in |
| Diametral Pitch: | 8 | Pressure Angle: | 20 |
| Material: | Steel | Bore Type: | Bushed Bore |
| Bore (Max) (in): | 1.75 in | Bore (Min) (in): | 0.5 in |
| Length Through Bore (in): | 2.1875 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.5 in | Hub Type: | P1 |
| Standard Met: | AGMA | Overall Length (in): | 2.1875 in |
| UPC: | 662289307906 | Weight: | 8.15 LB |
| Packaged Length: | 6.20 Inches | Packaged Width: | 6.10 Inches |
| Packaged Height: | 1.60 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
