- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS618

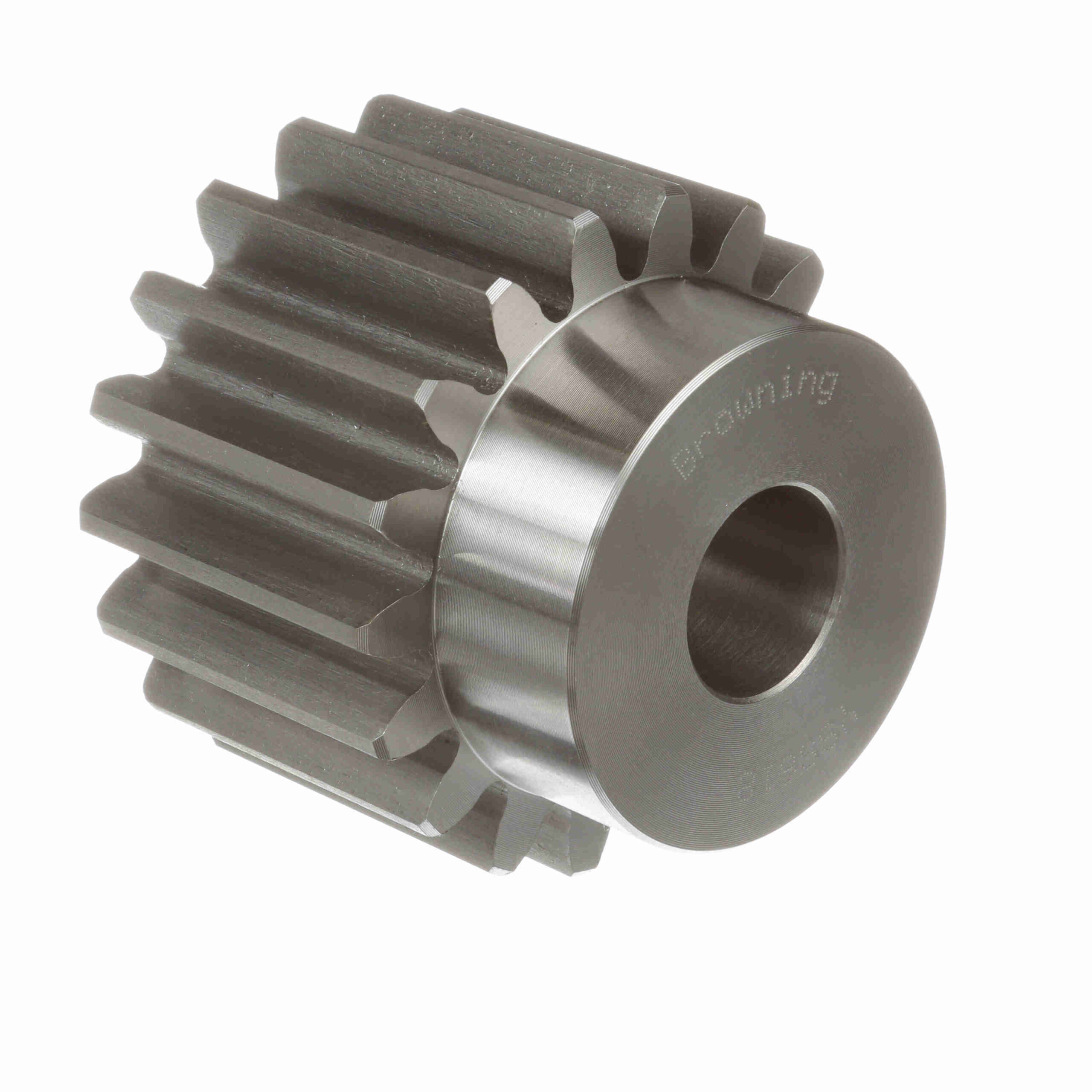

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 6 DP – YSS618
$307.58
Out of stock
Out of stock
| Hub Diameter (in): | 2.5 in | Outside Diameter (in): | 3.33 in |
|---|---|---|---|
| Pressure Angle: | 20 | Material: | Steel |
| Face Width (in): | 2 in | Diametral Pitch: | 6 |
| Pitch Diameter (in): | 3 in | Number of Teeth/Threads: | 18 |
| Hub Projection (in): | 0.875 in | Bore (Min) (in): | 1 in |
| Length Through Bore (in): | 2.875 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 1.625 in | Product Type: | Spur Gear |
| Bore Size (in): | 1 in | Hub Type: | Type B |
| Overall Length (in): | 2.875 in | Standard Met: | AGMA |
| Gear Construction: | Plain | UPC: | 662289236930 |
| Weight: | 4.58 LB | Packaged Length: | 4.60 Inches |
| Packaged Width: | 4.30 Inches | Packaged Height: | 3.60 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
