- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS612

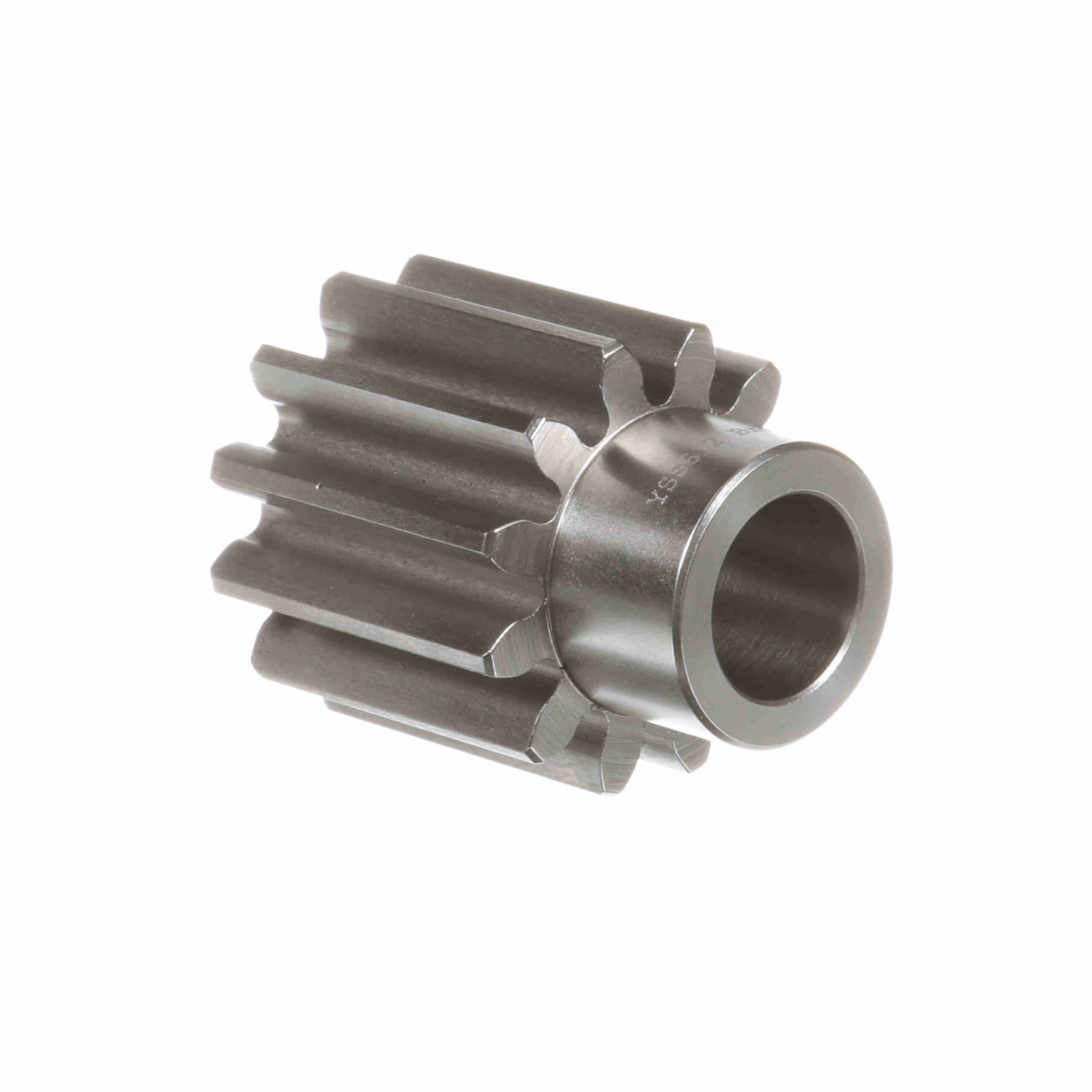

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 6 DP – YSS612
$200.16
Out of stock
Out of stock
| Diametral Pitch: | 6 | Number of Teeth/Threads: | 12 |
|---|---|---|---|
| Pressure Angle: | 20 | Hub Diameter (in): | 1.5 in |
| Hub Projection (in): | 0.875 in | Face Width (in): | 2 in |
| Pitch Diameter (in): | 2 in | Material: | Steel |
| Outside Diameter (in): | 2.33 in | Bore (Min) (in): | 1 in |
| Length Through Bore (in): | 2.875 in | Bore (Max) (in): | 1 in |
| Bore Type: | Minimum Plain Bore | Bore Size (in): | 1 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 2.875 in | Standard Met: | AGMA |
| UPC: | 662289206902 | Weight: | 1.55 LB |
| Packaged Length: | 3.56 Inches | Packaged Width: | 3.56 Inches |
| Packaged Height: | 2.25 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
