- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS424

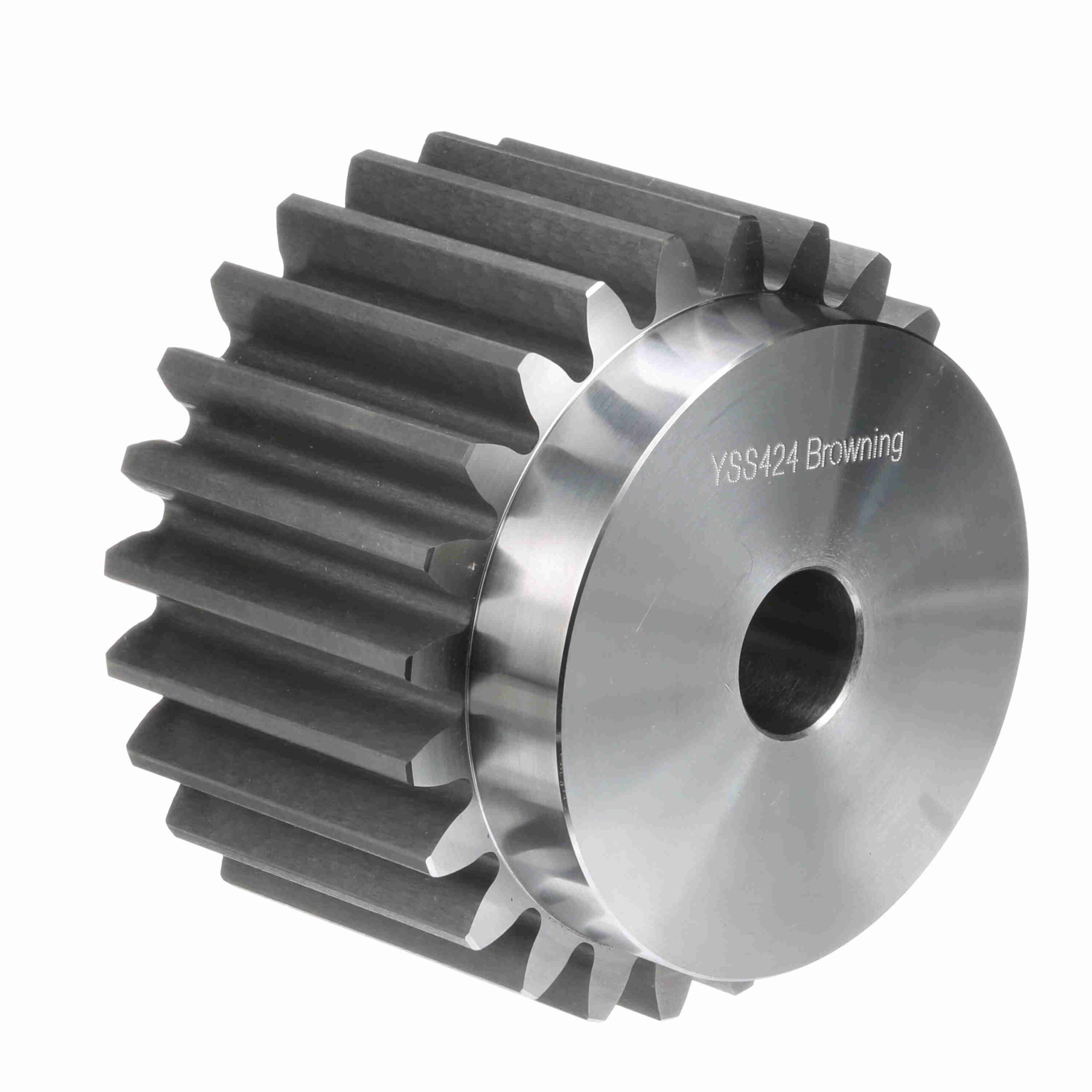

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 4 DP – YSS424
Out of stock
| Pressure Angle: | 20 | Hub Diameter (in): | 5.25 in |
|---|---|---|---|
| Face Width (in): | 3.5 in | Diametral Pitch: | 4 |
| Number of Teeth/Threads: | 24 | Material: | Steel |
| Outside Diameter (in): | 6.5 in | Hub Projection (in): | 1 in |
| Pitch Diameter (in): | 6 in | Bore (Min) (in): | 1.3125 in |
| Bore (Max) (in): | 3.5 in | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 4.5 in | Bore Size (in): | 1.3125 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 4.5 in | Standard Met: | AGMA |
| UPC: | 662289207350 | Weight: | 32.51 LB |
| Packaged Length: | 9.50 Inches | Packaged Width: | 9.80 Inches |
| Packaged Height: | 7.10 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
