- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS415

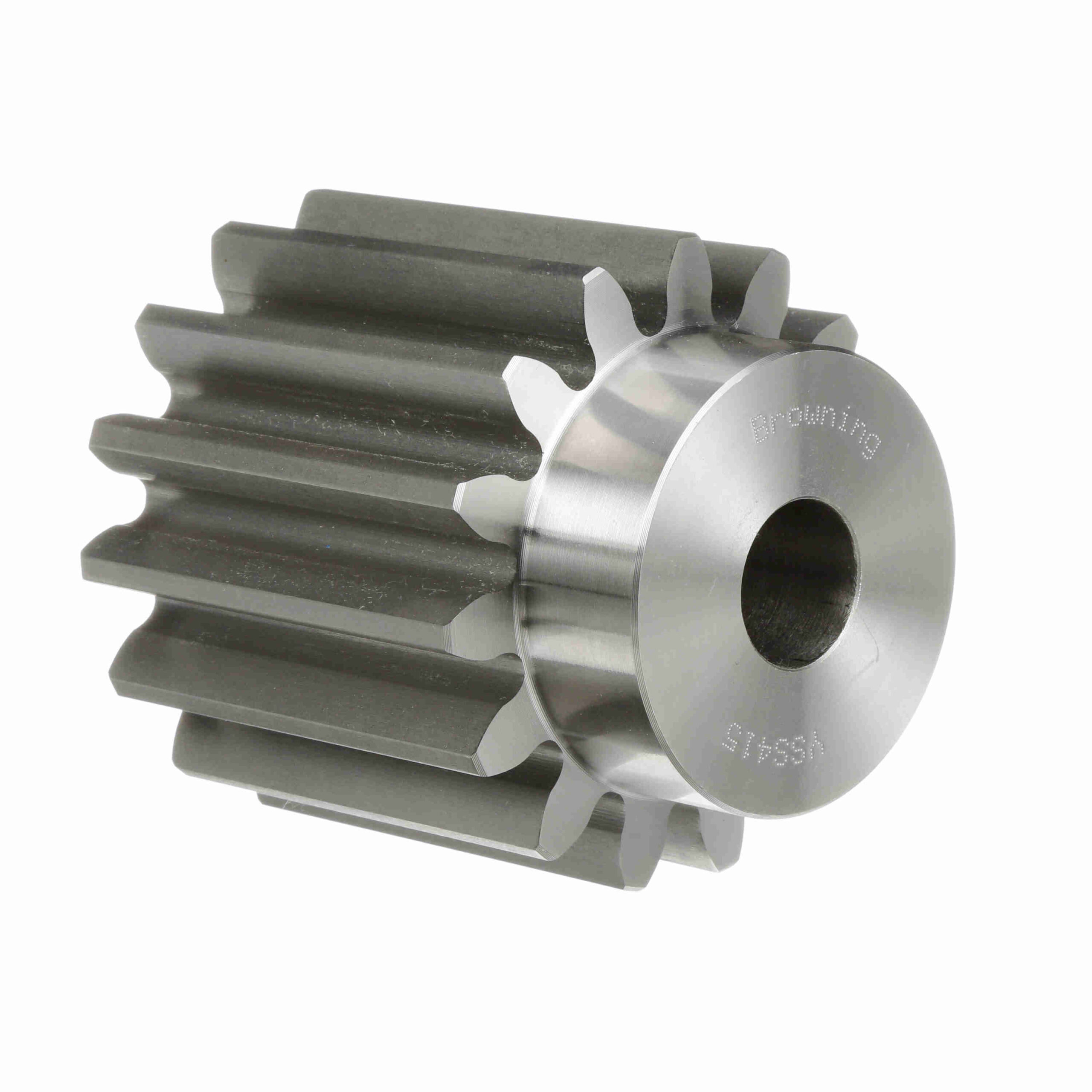

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 4 DP – YSS415
Out of stock
| Face Width (in): | 3.5 in | Pitch Diameter (in): | 3.75 in |
|---|---|---|---|
| Number of Teeth/Threads: | 15 | Pressure Angle: | 20 |
| Hub Diameter (in): | 3 in | Diametral Pitch: | 4 |
| Outside Diameter (in): | 4.25 in | Hub Projection (in): | 1 in |
| Material: | Steel | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 4.5 in | Bore (Min) (in): | 1.0625 in |
| Bore (Max) (in): | 2 in | Bore Size (in): | 1.0625 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 4.5 in |
| UPC: | 662289217342 | Weight: | 11.56 LB |
| Packaged Length: | 4.80 Inches | Packaged Width: | 4.90 Inches |
| Packaged Height: | 4.70 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
