- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS1680

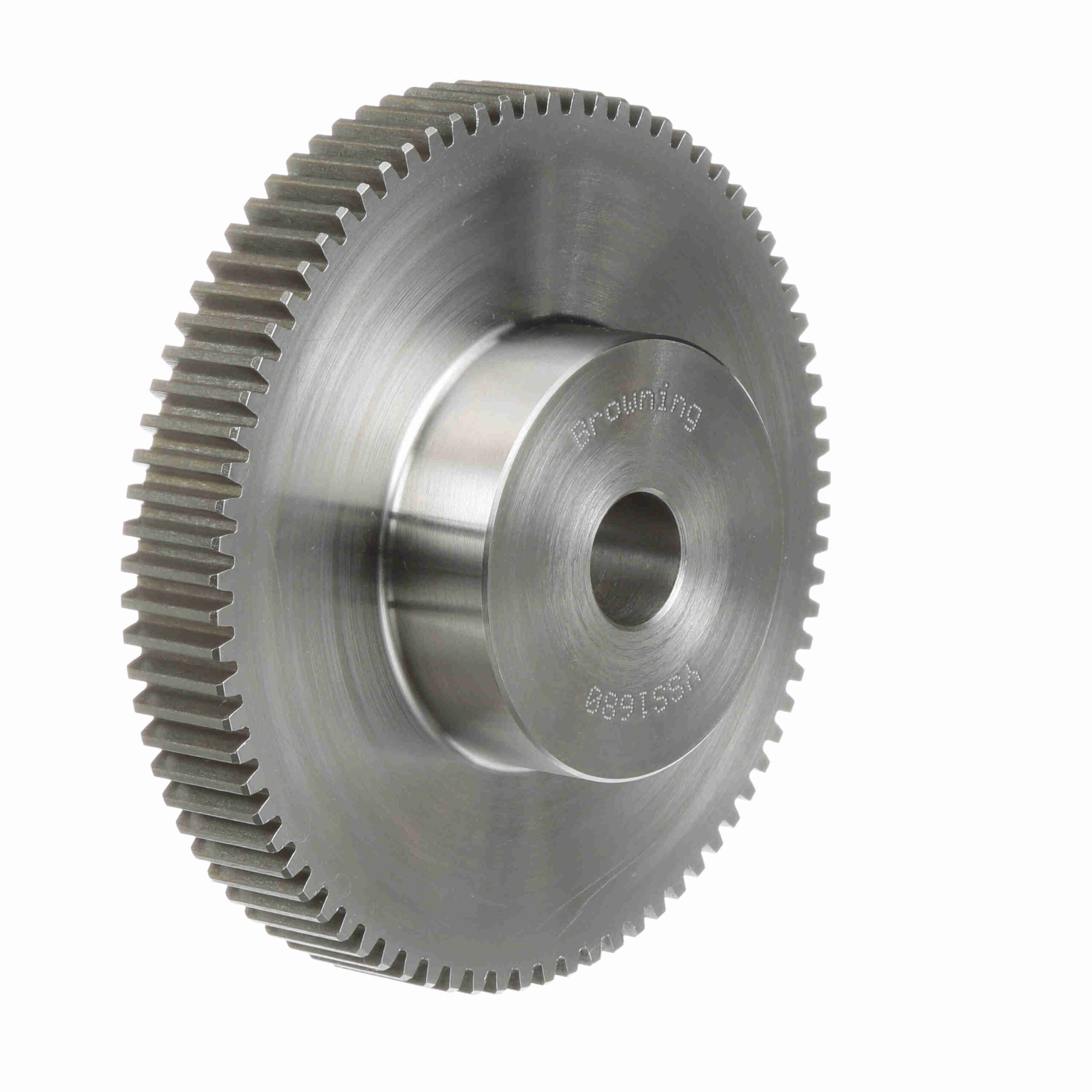

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 16 DP – YSS1680
$223.10
Out of stock
Out of stock
| Outside Diameter (in): | 5.12 in | Hub Projection (in): | 0.75 in |
|---|---|---|---|
| Face Width (in): | 0.75 in | Pitch Diameter (in): | 5 in |
| Number of Teeth/Threads: | 80 | Pressure Angle: | 20 |
| Diametral Pitch: | 16 | Material: | Steel |
| Hub Diameter (in): | 2.5 in | Length Through Bore (in): | 1.5 in |
| Bore (Min) (in): | 0.75 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 1.625 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1.5 in |
| UPC: | 662289256143 | Weight: | 5.10 LB |
| Packaged Length: | 5.40 Inches | Packaged Width: | 5.00 Inches |
| Packaged Height: | 2.00 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
