- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS1628

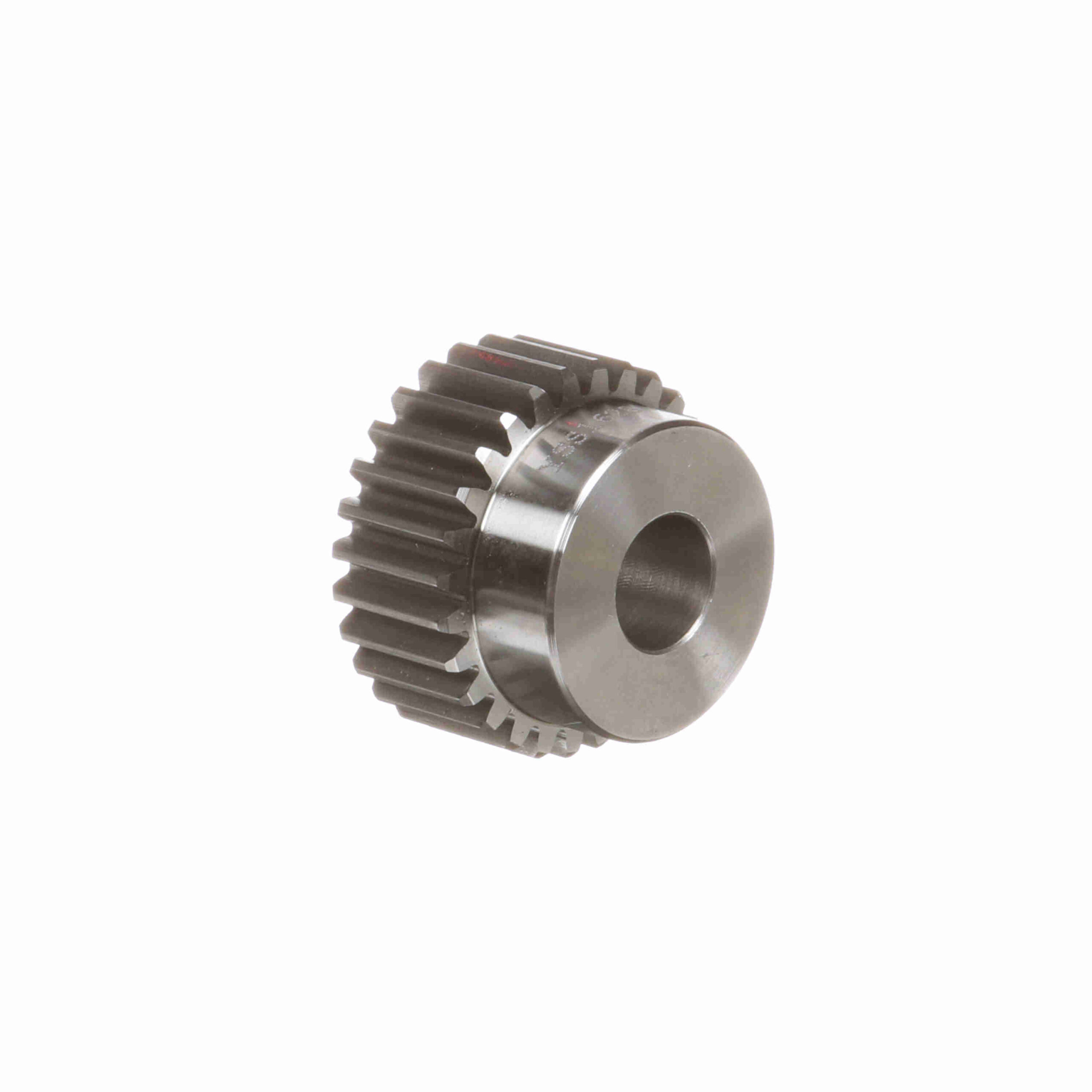

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 16 DP – YSS1628
$116.64
Out of stock
Out of stock
| Pitch Diameter (in): | 1.75 in | Number of Teeth/Threads: | 28 |
|---|---|---|---|
| Outside Diameter (in): | 1.87 in | Diametral Pitch: | 16 |
| Hub Diameter (in): | 1.5 in | Hub Projection (in): | 0.5 in |
| Face Width (in): | 0.75 in | Material: | Steel |
| Pressure Angle: | 20 | Bore (Max) (in): | 0.875 in |
| Bore (Min) (in): | 0.625 in | Length Through Bore (in): | 1.25 in |
| Bore Type: | Minimum Plain Bore | Bore Size (in): | 0.625 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1.25 in |
| Gear Construction: | Plain | UPC: | 662289136049 |
| Weight: | 0.68 LB | Packaged Length: | 2.70 Inches |
| Packaged Width: | 2.80 Inches | Packaged Height: | 2.00 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
