- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS1216

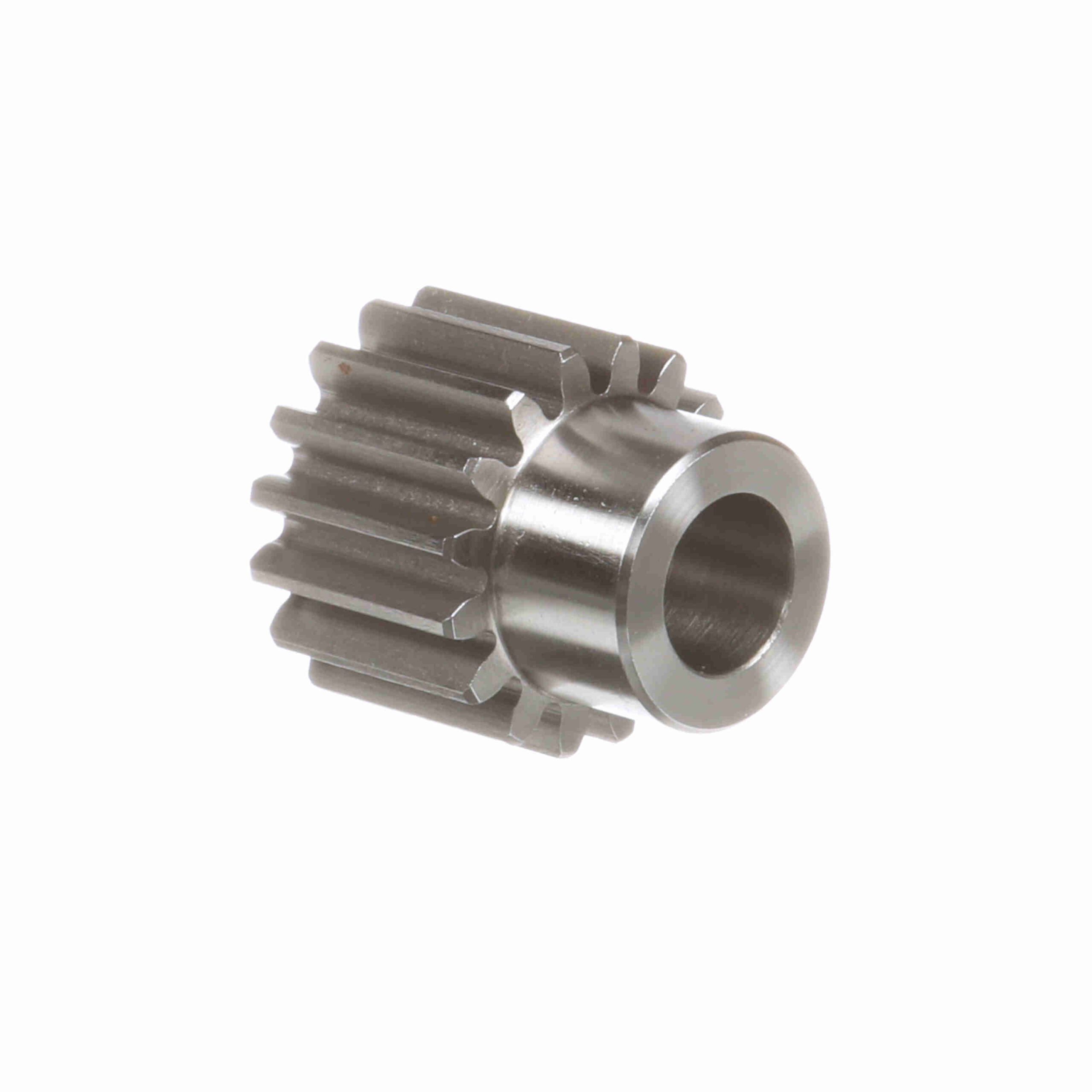

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 12 DP – YSS1216
$101.74
Out of stock
Out of stock
| Diametral Pitch: | 12 | Number of Teeth/Threads: | 16 |
|---|---|---|---|
| Hub Diameter (in): | 1.0625 in | Material: | Steel |
| Hub Projection (in): | 0.625 in | Pitch Diameter (in): | 1.333 in |
| Face Width (in): | 1 in | Pressure Angle: | 20 |
| Outside Diameter (in): | 1.5 in | Length Through Bore (in): | 1.625 in |
| Bore (Min) (in): | 0.625 in | Bore (Max) (in): | 0.625 in |
| Bore Type: | Minimum Plain Bore | Product Type: | Spur Gear |
| Bore Size (in): | 0.625 in | Hub Type: | Type B |
| Overall Length (in): | 1.625 in | Standard Met: | AGMA |
| UPC: | 662289136278 | Weight: | 0.43 LB |
| Packaged Length: | 2.70 Inches | Packaged Width: | 2.70 Inches |
| Packaged Height: | 1.40 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
