- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS1213

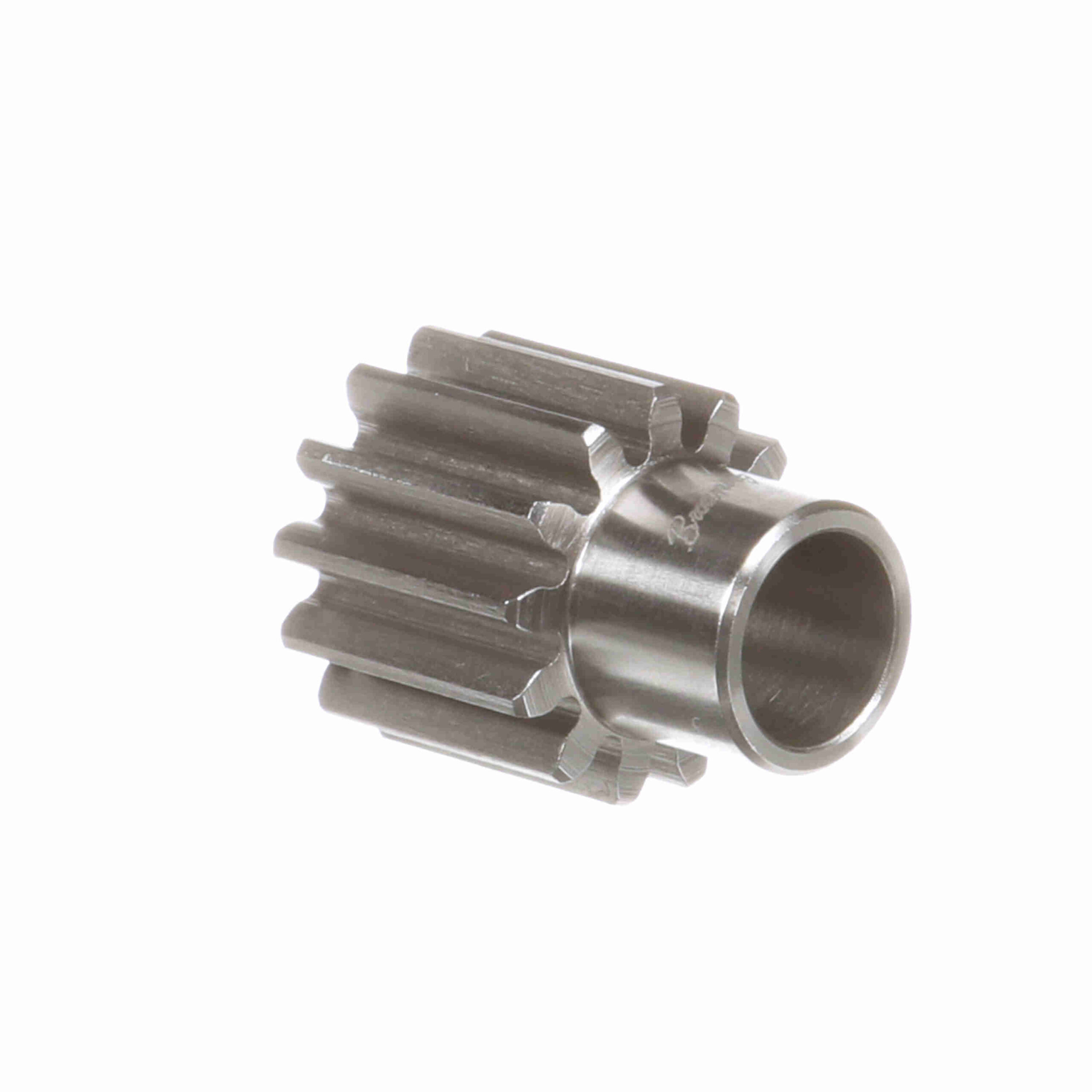

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 12 DP – YSS1213
Out of stock
| Outside Diameter (in): | 1.25 in | Pitch Diameter (in): | 1.083 in |
|---|---|---|---|
| Material: | Steel | Number of Teeth/Threads: | 13 |
| Hub Diameter (in): | 0.8125 in | Diametral Pitch: | 12 |
| Hub Projection (in): | 0.625 in | Pressure Angle: | 20 |
| Face Width (in): | 1 in | Bore (Min) (in): | 0.625 in |
| Bore Type: | Minimum Plain Bore | Length Through Bore (in): | 1.625 in |
| Bore (Max) (in): | 0.625 in | Bore Size (in): | 0.625 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 1.625 in | Standard Met: | AGMA |
| UPC: | 662289226191 | Weight: | 0.25 LB |
| Packaged Length: | 3.00 Inches | Packaged Width: | 2.70 Inches |
| Packaged Height: | 1.90 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
