- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSMS7F21RHX1

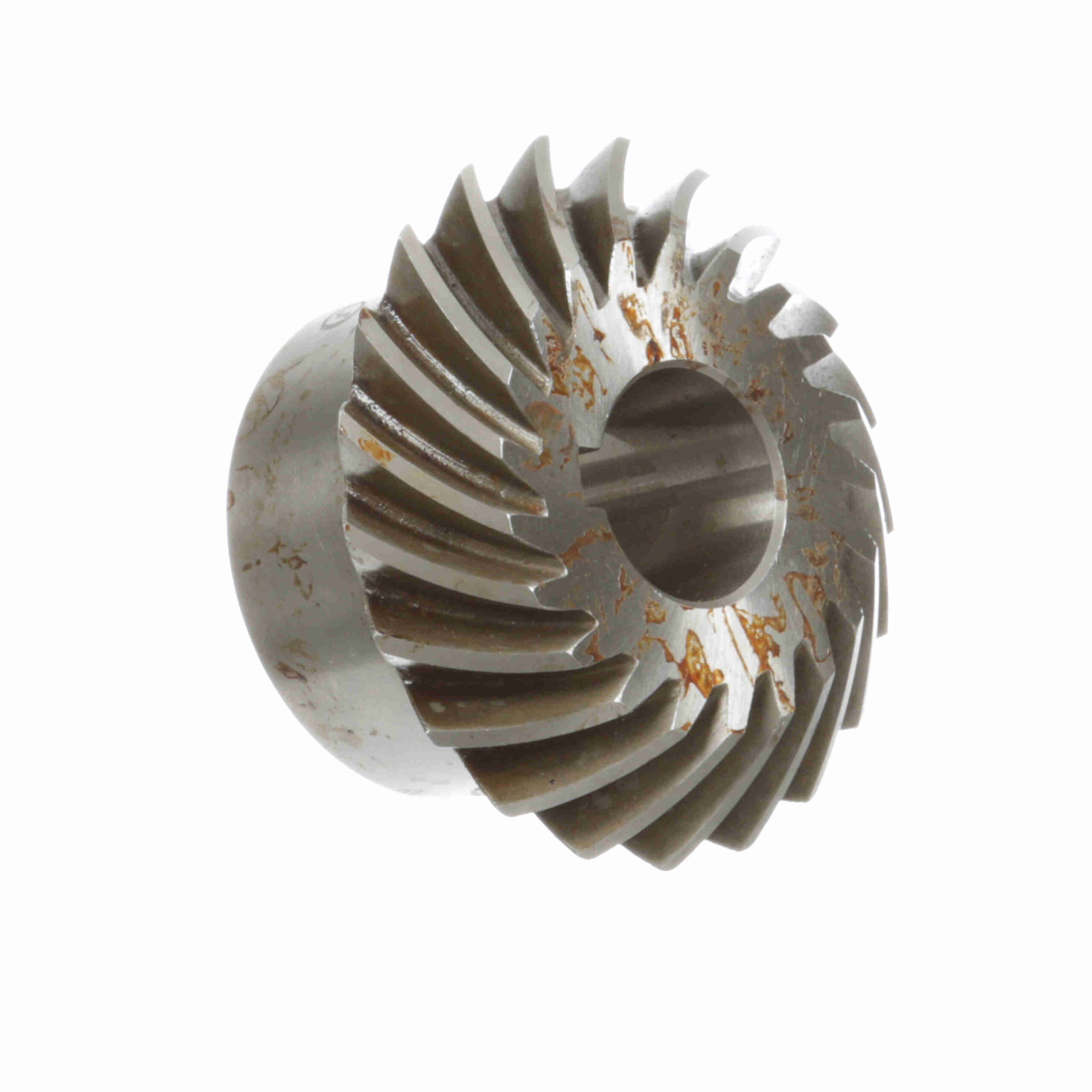

Browning Hardened Steel Finished Bore Spiral Miter Gear – 20 PA 7 DP – YSMS7F21RHX1
$1,202.53
Out of stock
Out of stock
| Number of Teeth/Threads: | 21 | Hub Diameter (in): | 2.25 in |
|---|---|---|---|
| Material: | Steel | Lead/Helix Angle: | 35 |
| Diametral Pitch: | 7 | Face Width (in): | 0.68 in |
| Pitch Diameter (in): | 3 in | Mounting Distance: | 2.75 |
| Hub Projection (in): | 0.875 in | Pressure Angle: | 20 |
| Length Through Bore (in): | 1.78125 in | Bore Type: | Finished Bore |
| Bore (Min) (in): | 1 in | Bore (Max) (in): | 1 in |
| Product Type: | Spiral Miter Gear | Bore Size (in): | 1 in |
| Spiral Gear Hand Direction: | RIGHT | UPC: | 662289107346 |
| Weight: | 1.94 LB | Packaged Length: | 4.06 Inches |
| Packaged Width: | 4.06 Inches | Packaged Height: | 1.88 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
