- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSM8B32

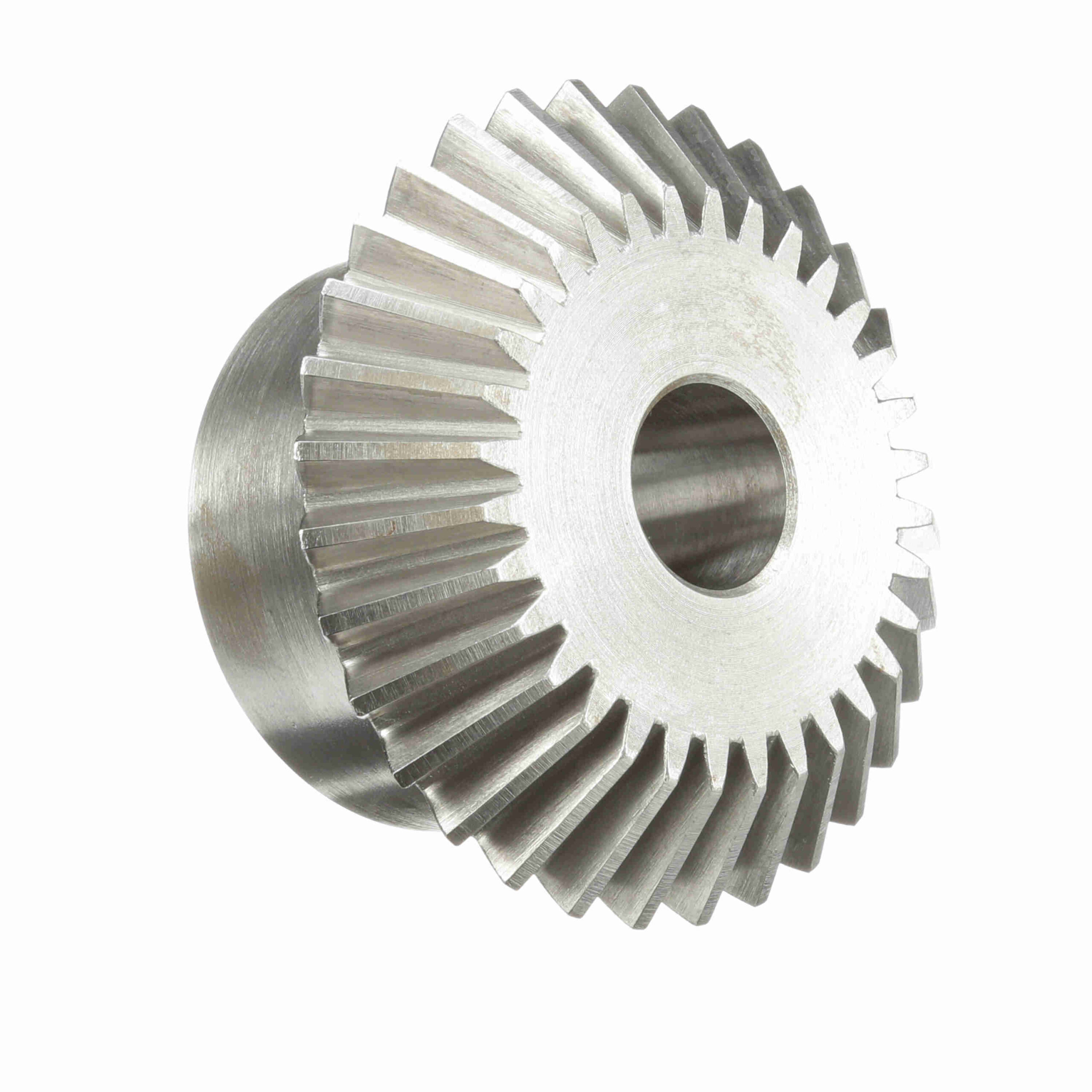

Browning Steel Minimum Plain Bore Miter Gear – 20 PA 8 DP – YSM8B32
$766.14
Out of stock
Out of stock
| Number of Teeth/Threads: | 32 | Pressure Angle: | 20 |
|---|---|---|---|
| Material: | Steel | Mounting Distance: | 3.625 |
| Pitch Diameter (in): | 4 in | Hub Projection (in): | 1.125 in |
| Face Width (in): | 0.84 in | Hub Diameter (in): | 3 in |
| Diametral Pitch: | 8 | Bore (Max) (in): | 2 in |
| Bore Type: | Minimum Plain Bore | Bore (Min) (in): | 1 in |
| Length Through Bore (in): | 2.28125 in | Product Type: | Miter Gear |
| Bore Size (in): | 1 in | UPC: | 662289156948 |
| Weight: | 4.88 LB | Packaged Length: | 4.50 Inches |
| Packaged Width: | 4.60 Inches | Packaged Height: | 3.00 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
