- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSM6F24HX 1 1/4

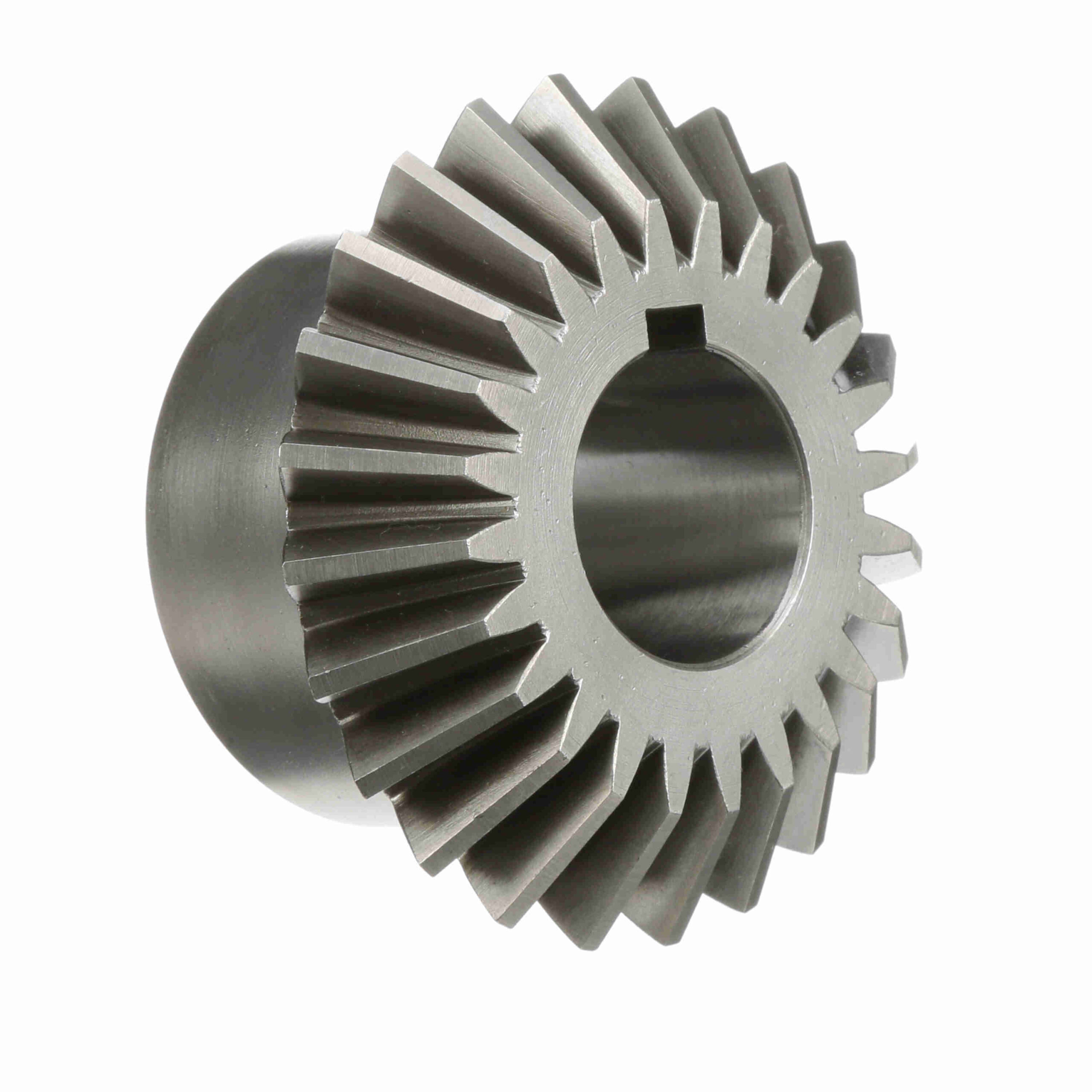

Browning Hardened Steel Finished Bore Miter Gear – 20 PA 6 DP – YSM6F24HX 1 1/4
Out of stock
| Mounting Distance: | 3.625 | Face Width (in): | 0.86 in |
|---|---|---|---|
| Pressure Angle: | 20 | Material: | Steel |
| Pitch Diameter (in): | 4 in | Hub Projection (in): | 1.3125 in |
| Diametral Pitch: | 6 | Number of Teeth/Threads: | 24 |
| Hub Diameter (in): | 3 in | Bore (Max) (in): | 1.25 in |
| Bore (Min) (in): | 1.25 in | Length Through Bore (in): | 2.3125 in |
| Bore Type: | Finished Bore | Hub Type: | Type B |
| Bushing Bore size (in): | 1.2500 in | Product Type: | Miter Gear |
| Bore Size (in): | 1.25 in | Gear Construction: | Plain |
| UPC: | 662289266579 | Weight: | 4.54 LB |
| Packaged Length: | 4.25 Inches | Packaged Width: | 4.25 Inches |
| Packaged Height: | 2.94 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | India |
