- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSM6B24X1

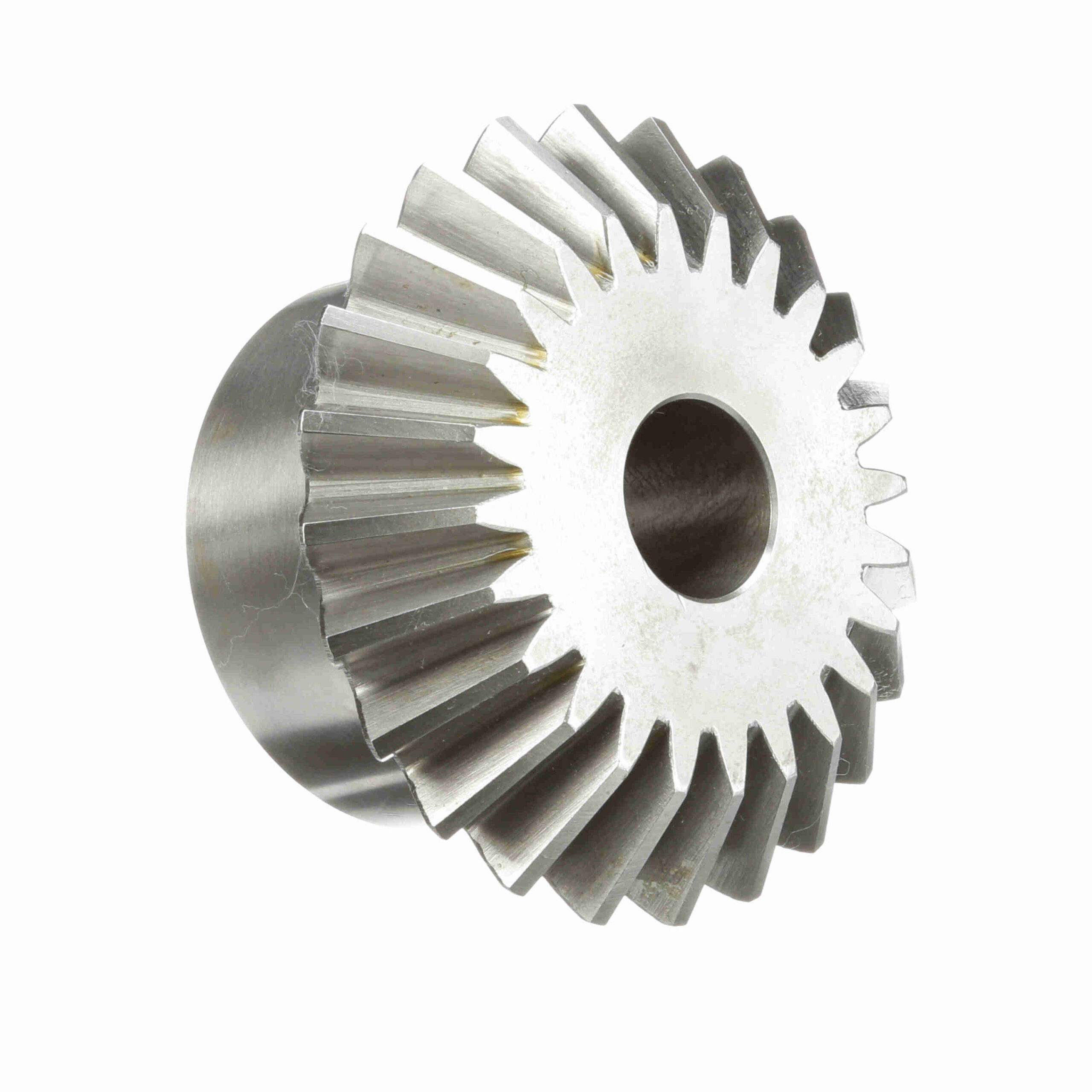

Browning Steel Minimum Plain Bore Miter Gear – 20 PA 6 DP – YSM6B24X1
$648.34
Out of stock
Out of stock
| Hub Diameter (in): | 3 in | Mounting Distance: | 3.625 |
|---|---|---|---|
| Face Width (in): | 0.86 in | Number of Teeth/Threads: | 24 |
| Material: | Steel | Pitch Diameter (in): | 4 in |
| Pressure Angle: | 20 | Hub Projection (in): | 1.3125 in |
| Diametral Pitch: | 6 | Bore (Min) (in): | 1 in |
| Bore Type: | Minimum Plain Bore | Bore (Max) (in): | 2 in |
| Length Through Bore (in): | 2.3125 in | Bore Size (in): | 1 in |
| Product Type: | Miter Gear | UPC: | 662289266920 |
| Weight: | 4.89 LB | Packaged Length: | 4.50 Inches |
| Packaged Width: | 4.50 Inches | Packaged Height: | 3.40 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
