- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSM12B24

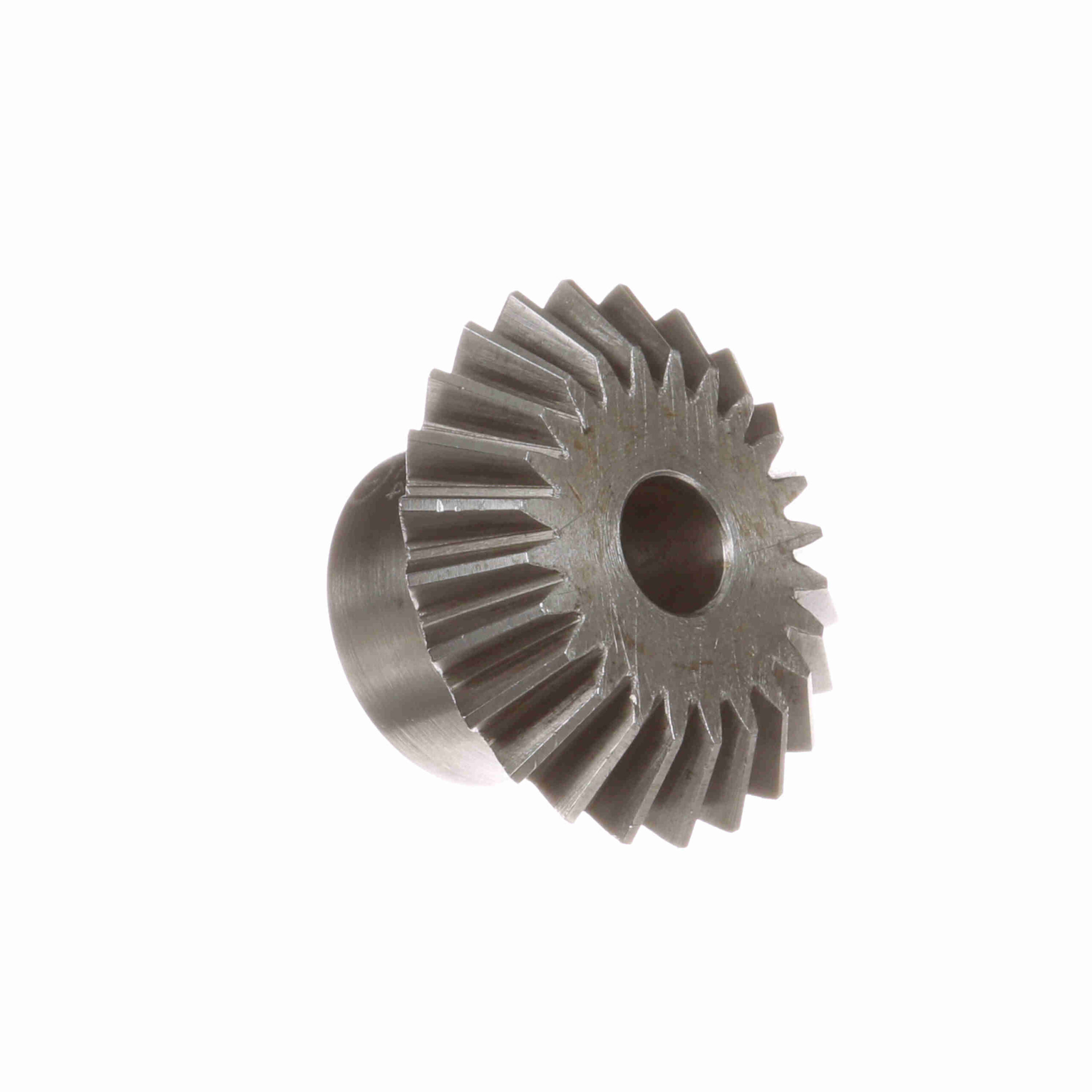

Browning Steel Minimum Plain Bore Miter Gear – 20 PA 12 DP – YSM12B24
$245.12
Out of stock
Out of stock
| Diametral Pitch: | 12 | Pitch Diameter (in): | 2 in |
|---|---|---|---|
| Material: | Steel | Face Width (in): | 0.43 in |
| Hub Diameter (in): | 1.3125 in | Mounting Distance: | 1.875 |
| Pressure Angle: | 20 | Number of Teeth/Threads: | 24 |
| Hub Projection (in): | 0.6875 in | Bore (Min) (in): | 0.5 in |
| Bore Type: | Minimum Plain Bore | Length Through Bore (in): | 1.21875 in |
| Bore (Max) (in): | 0.625 in | Hub Type: | Type B |
| Bushing Bore size (in): | 0.5000 to 0.6250 in | Product Type: | Miter Gear |
| Bore Size (in): | 0.5 in | Gear Construction: | Plain |
| UPC: | 662289176793 | Weight: | 0.59 LB |
| Packaged Length: | 3.50 Inches | Packaged Width: | 2.90 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | India |
